FRAME COVER (GSX400LX)

GSX400L 1981 (X) GENERAL EXPORT (E01)

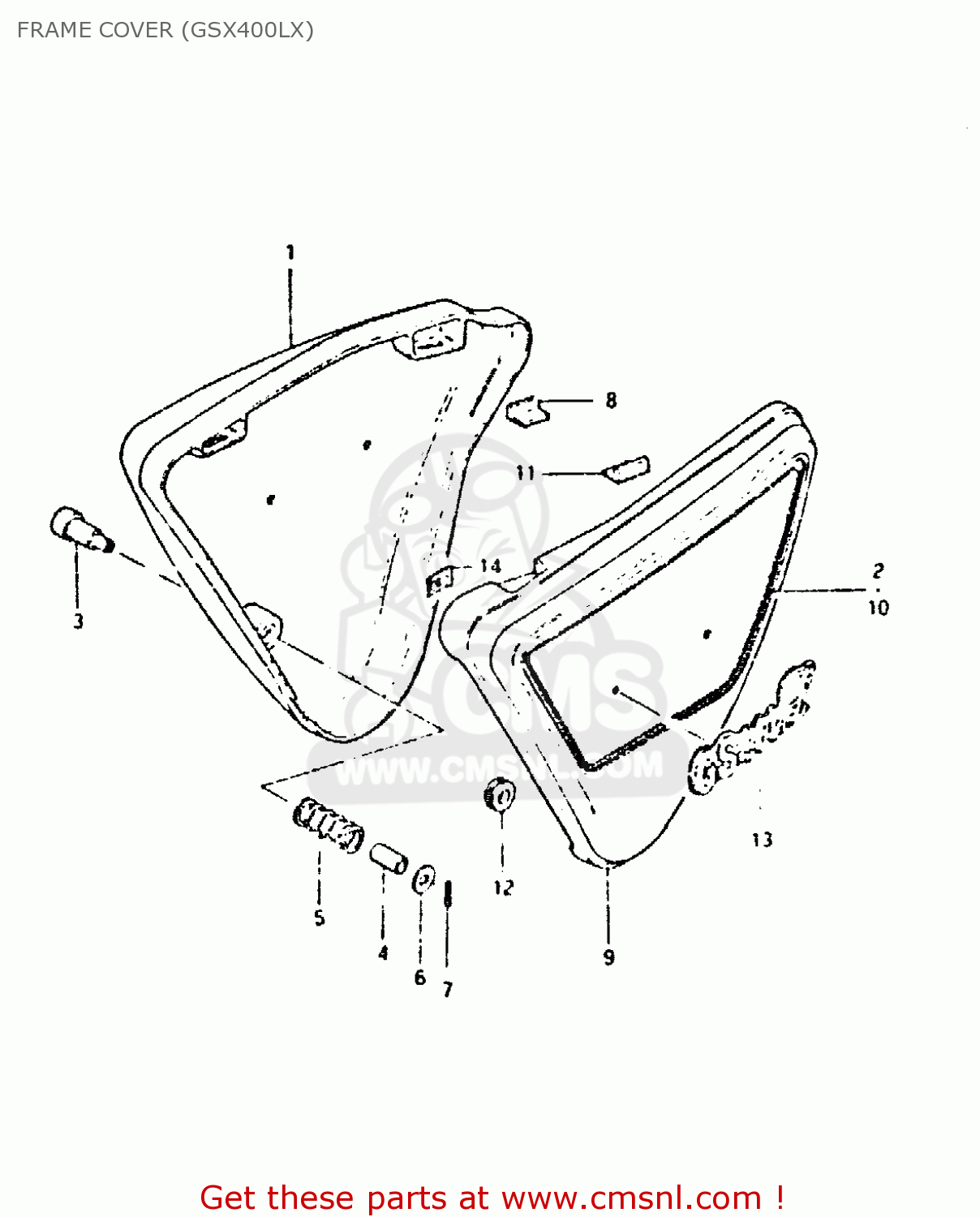

Frame cover (gsx400lx) diagram GSX400L 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4711144210019
ref: 1-1

COVER,FRAME,RIGHT

€ 58.00

1-2

471114421008H
ref: 1-2

COVER,FRAME,RIGHT

€ 52.00

6813044220764
ref: 2

TAPE SET,FRAME COVER,RIGHT

€ 10.00

4713011400
ref: 3

KNOB,FRAME COVER

€ 8.50

0918014009
ref: 4

SPACER(14.9X17.3X13.5)

€ 5.50

0944020009
ref: 5

SPRING

€ 2.50

0916006004
ref: 6

WASHER (6.5X24X1.6)

€ 1.50

0920502011
ref: 7

PIN,SPRING(2.5X18)

€ 1.50

4711745000
ref: 8

CUSHION,FRAME COVER

€ 1.50

9-1

4721144210019
ref: 9-1

COVER,FRAME,LEFT

€ 52.00

9-2

472114421008H
ref: 9-2

COVER,FRAME,LEFT

€ 52.00

6814044220764
ref: 10

TAPE SET,FRAME COVER,LEFT

€ 16.50

4711745000
ref: 11

CUSHION,FRAME COVER

€ 1.50

0932008018
ref: 12

CUSHION

€ 4.00

6813144200
ref: 13

EMBLEM

€ 20.50

0914803002
ref: 14

NUT

€ 3.00
