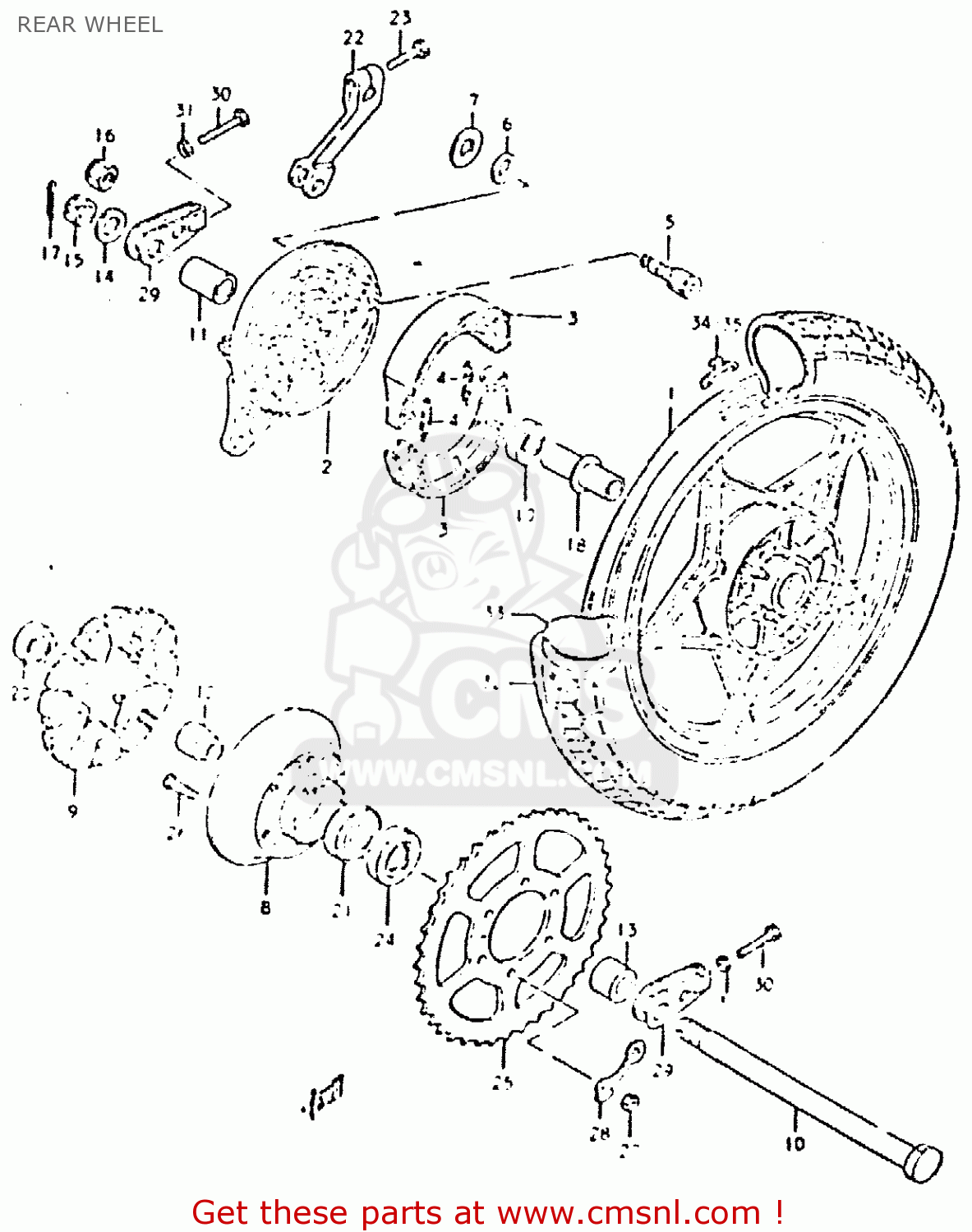

REAR WHEEL

ref

part #

description

quantity

1-1

6415037300
ref: 1-1
MODEL T

WHEEL,REAR

€ 0.00

1-2

6415037320
ref: 1-2
MODEL X

WHEEL,REAR

€ 0.00

2

6421044060
ref: 2

PANEL,REAR HUB

€ 111.50

3

6441011301
ref: 3

SHOE,BRAKE

€ 29.50

4

5542030000
ref: 4

SPRING,BRAKE SHOE

€ 3.50

5

5444008003
ref: 5

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7

WASHER (15X24X1.6)

€ 2.50

8

6461144001
ref: 8

DRUM,REAR SPROCKET MOUNT

€ 84.00

9

6465111300
ref: 9

ABSORBER,RR HUB SHOCK

€ 12.50

10

6471133000
ref: 10

AXLE,REAR

€ 33.50

11

0918017043
ref: 11

SPACER(17.5X28X44.8)

€ 7.00

12

6473333000
ref: 12

SPACER,REAR HUB BEARING

€ 20.00

13

0918017042
ref: 13

SPACER(17X30.5X22.3)

€ 8.50

14

0916017013
ref: 14

WASHER (17X30X3.2)

€ 2.00

15

0914116001
ref: 15

NUT

€ 6.50

16

NOTUSED
ref: 16

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17

0411140308
ref: 17

PIN,COTTER

€ 1.50

18

0918017056
ref: 18

SPACER (17.6X24X57)

€ 19.00

19

0814363037
ref: 19

BEARING

€ 23.00

20

0814362037
ref: 20

BEARING

€ 18.50

21

0811362057
ref: 21

BEARING

€ 18.00

22

6445144001
ref: 22

LEVER,RR BRAKE CAM

€ 111.00

23

0110706258
ref: 23

BOLT

€ 2.00

24

0928530001
ref: 24

SEAL,OIL(30.5X52X8)

€ 20.00

25

6451144210
ref: 25

SPROCKET,REAR (NT:43)

€ 80.50

26

0911910002
ref: 26

BOLT

€ 3.50

27

0831011108
ref: 27

NUT

€ 2.50

28

0916910006
ref: 28

WASHER

€ 4.50

29

6141044200
ref: 29

ADJUSTER,CHAIN

€ 31.00

30

0910408018
ref: 30

BOLT 8X50

€ 3.00

31

0831012088
ref: 31

NUT

€ 2.00

32-1

6510037310
ref: 32-1
IRC

TIRE

€ 210.00

32-2

6510037330
ref: 32-2
BS

TIRE

€ 0.00

33

6520037300
ref: 33

TUBE ASSY,WHEEL,INNER 4.60-16

€ 31.50

34

5541147001
ref: 34

BALANCER,WHEEL

€ 4.00

35

5541247001
ref: 35

BALANCER,WHEEL

€ 3.50

all assemblies
