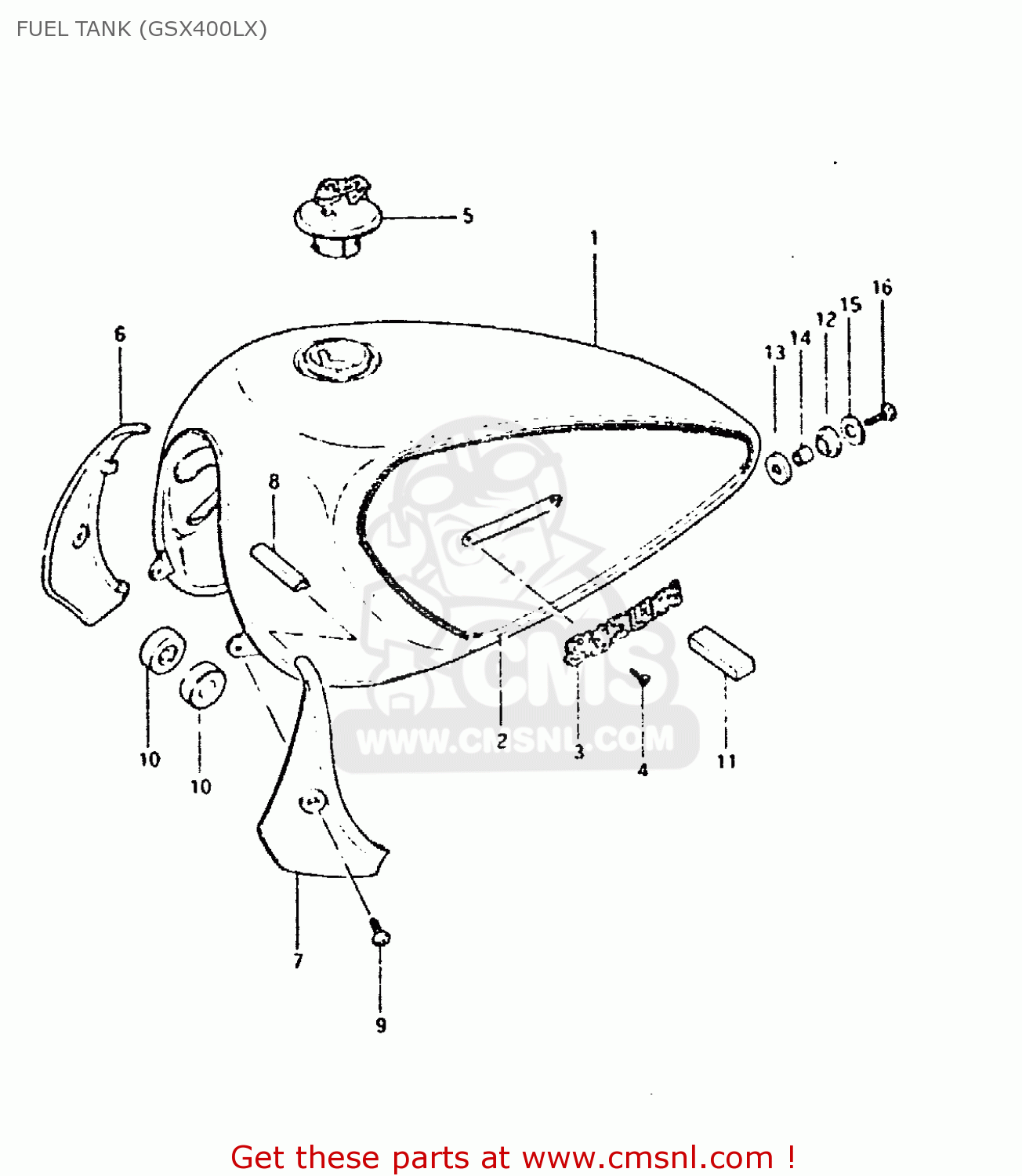

FUEL TANK (GSX400LX)

GSX400L 1981 (X) GENERAL EXPORT (E01)

Fuel tank (gsx400lx) diagram GSX400L 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4410044220019
ref: 1-1

TANK ASSEMBLY,FUEL

€ 350.00

1-2

441004422008H
ref: 1-2

TANK ASSEMBLY,FUEL

€ 350.00

6811044210764
ref: 2

TAPE SET,FUEL TANK

€ 35.00

6811144200
ref: 3

EMBLEM,FUEL TANK

€ 16.50

0213203065
ref: 4

SCREW 3X6

€ 2.00

4420030703
ref: 5

CAP SET,FUEL TANK

€ 112.00

4427144201
ref: 6

COVER,FUEL TANK,FRONT,RIGHT

€ 9.00

4427244201
ref: 7

COVER,FUEL TANK,FRONT,LEFT

€ 8.00

4427344200
ref: 8

TUBE, FRONT

€ 2.50

0214206125
ref: 9

SCREW 6X12

€ 2.00

0932910007
ref: 10

CUSHION

€ 3.00

0932901005
ref: 11

CUSHION

€ 11.50

0932012010
ref: 12

CUSHION

€ 3.00

0932012023
ref: 13

CUSHION

€ 2.50

0918008067
ref: 14

SPACER(8.5X12X19)

€ 2.50

0916008002
ref: 15

WASHER (8.5X29X1.6)

€ 2.00

0110708308
ref: 16

BOLT (8X30)

€ 2.50
