REAR COMBINATION LAMP

GSX400L 1981 (X) GENERAL EXPORT (E01)

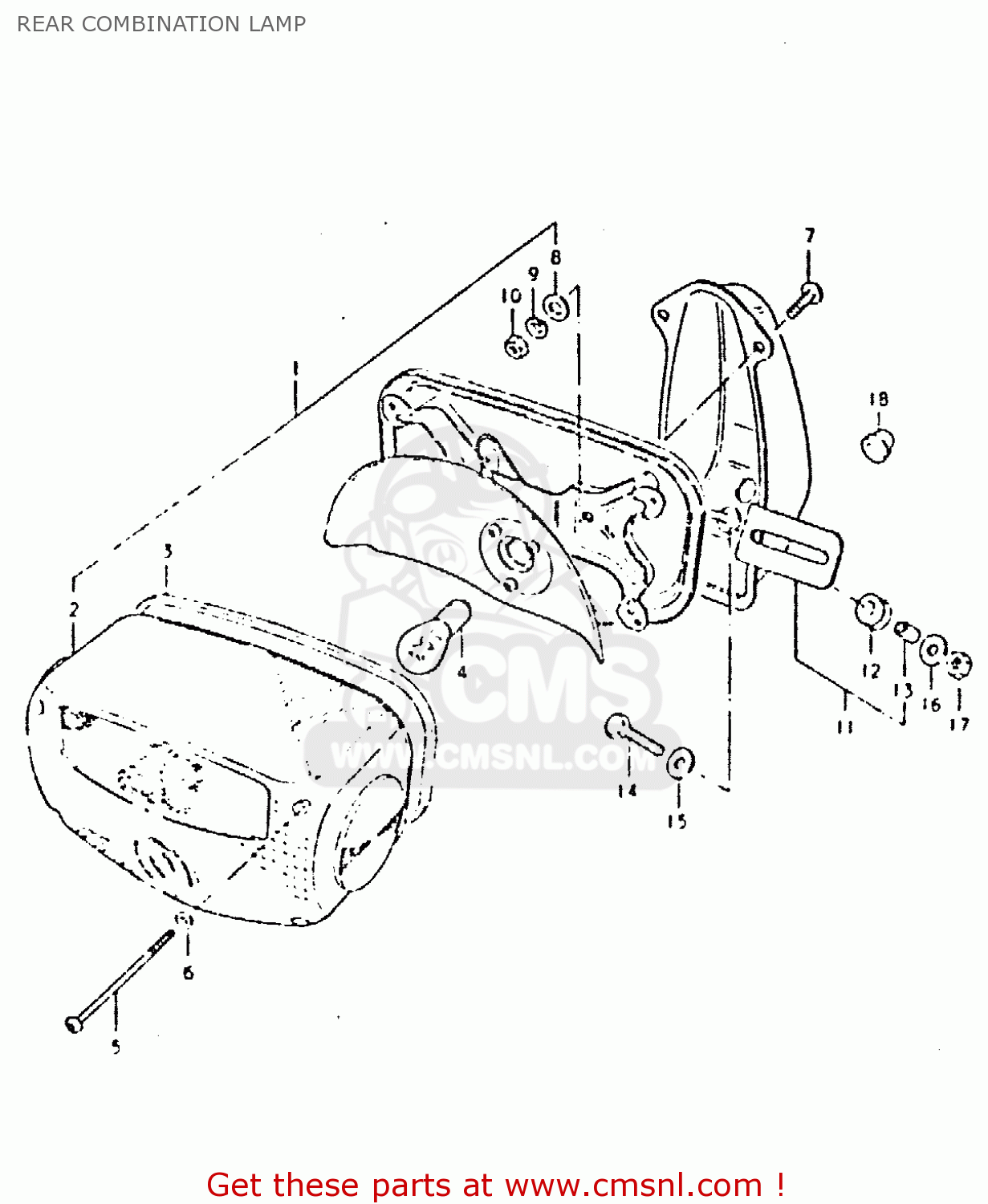

Rear combination lamp diagram GSX400L 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

3572045220
ref: 1

LAMP UNIT, TAIL

€ 128.00

3571245612
ref: 2

LENS,REAR COMBINATION LAMP

€ 68.00

3571345010
ref: 3

GASKET (NAS)

€ 9.00

0917112057
ref: 4

BULB (12V, 21/5W)

€ 0.00

0912504002
ref: 5

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0211206128
ref: 7

SCREW 6X12

€ 2.00

0832221068
ref: 8

WASHER

€ 2.00

0832121068
ref: 9

LOCK WASHER

€ 2.50

0831011068
ref: 10

NUT

€ 2.50

3573045220
ref: 11

BRACKET ASSY

€ 49.50

3576522210
ref: 12

CUSHION

€ 4.00

3576637120
ref: 13
FROM 35766-22210

SPACER

€ 2.50

0110706258
ref: 14

BOLT

€ 2.00

0916006027
ref: 15

WASHER (6.5X20X1.2)

€ 2.00

0832221068
ref: 16

WASHER

€ 2.00

0831011068
ref: 17

NUT

€ 2.50

0930807004
ref: 18

GROMMET

€ 2.50
