MUFFLER
GSX400L 1981 (X) GENERAL EXPORT (E01)

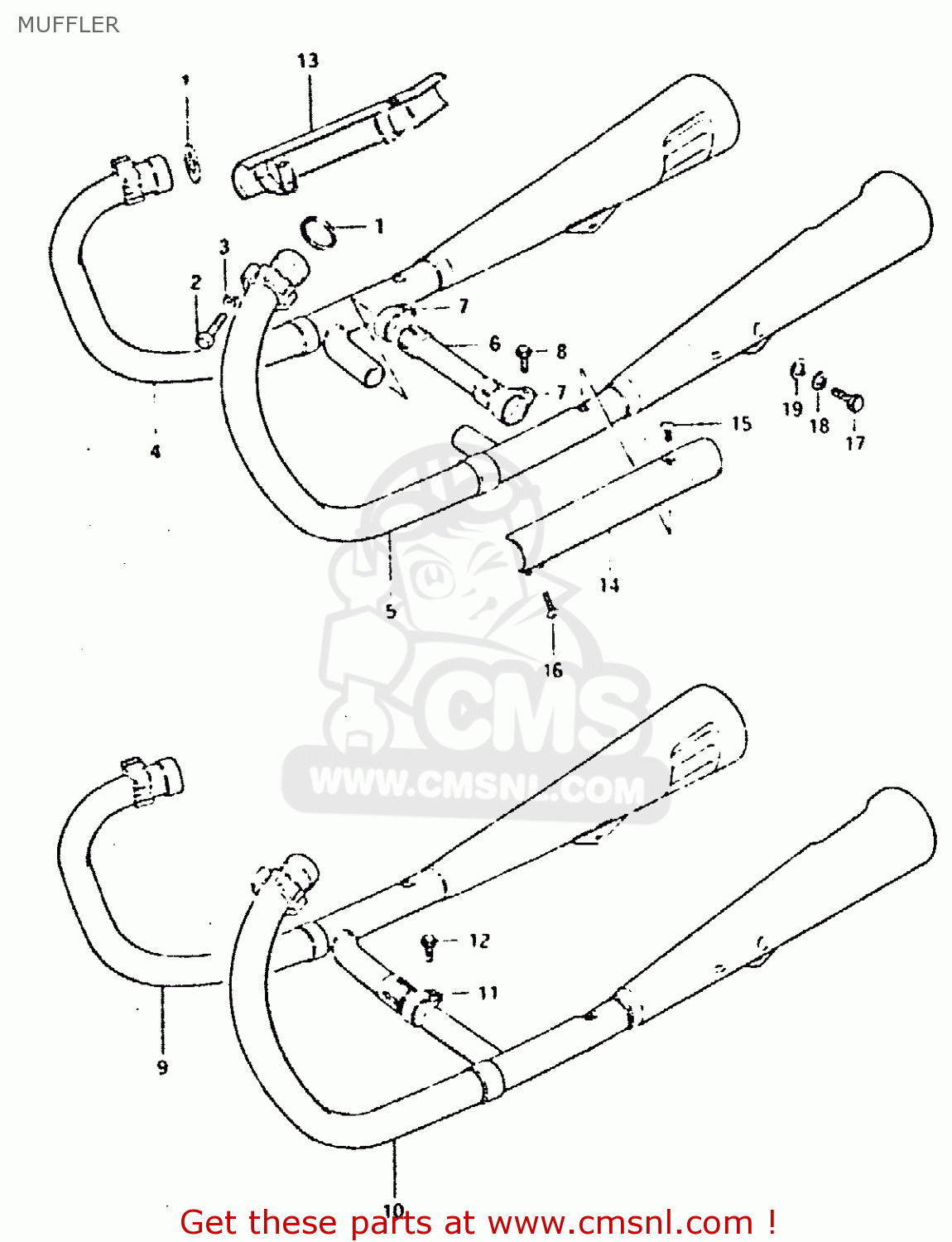

Muffler diagram GSX400L 1981 (X) GENERAL EXPORT (E01)
MUFFLER GSX400L 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1418111010
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 8.00
2
0110708358
ref: 2
BOLT
€ 3.50
3
0832121088
ref: 3
LOCK WASHER
€ 2.00
4
1431044230
ref: 4
MODEL T
MUFFLER, RH
€ 0.00
5
1434044230
ref: 5
MODEL T
MUFFLER, LH
€ 0.00
6
1421144010
ref: 6
MODEL T
PIPE,EXHAUST COUPLER
€ 107.50
7
0940235601
ref: 7
MODEL T
CLAMP
€ 5.00
8
0151706258
ref: 8
MODEL T
BOLT
€ 2.50
9
1431044231
ref: 9
MODEL X
MUFFLER, RH
€ 252.00
10
1434044231
ref: 10
MODEL X
MUFFLER, LH
€ 257.50
11
0940235601
ref: 11
MODEL X
CLAMP
€ 5.00
12
0151706258
ref: 12
MODEL X
BOLT
€ 2.50
13
1478044100
ref: 13
TO 14780-44101
COVER,MUFFLER
€ 25.00
14
1479044100
ref: 14
TO 14790-44101
COVER,MUFFLER
€ 33.50
15
0211205068
ref: 15
SCREW
€ 4.00
16
0211205168
ref: 16
SCREW
€ 2.50
17
0110710258
ref: 17
BOLT 10X25
€ 3.00
18
0832121108
ref: 18
LOCK WASHER
€ 2.00
19
0832221108
ref: 19
WASHER
€ 2.50
