CAM SHAFT - VALVE

GSX500ES 1984 (E) GENERAL EXPORT (E01)

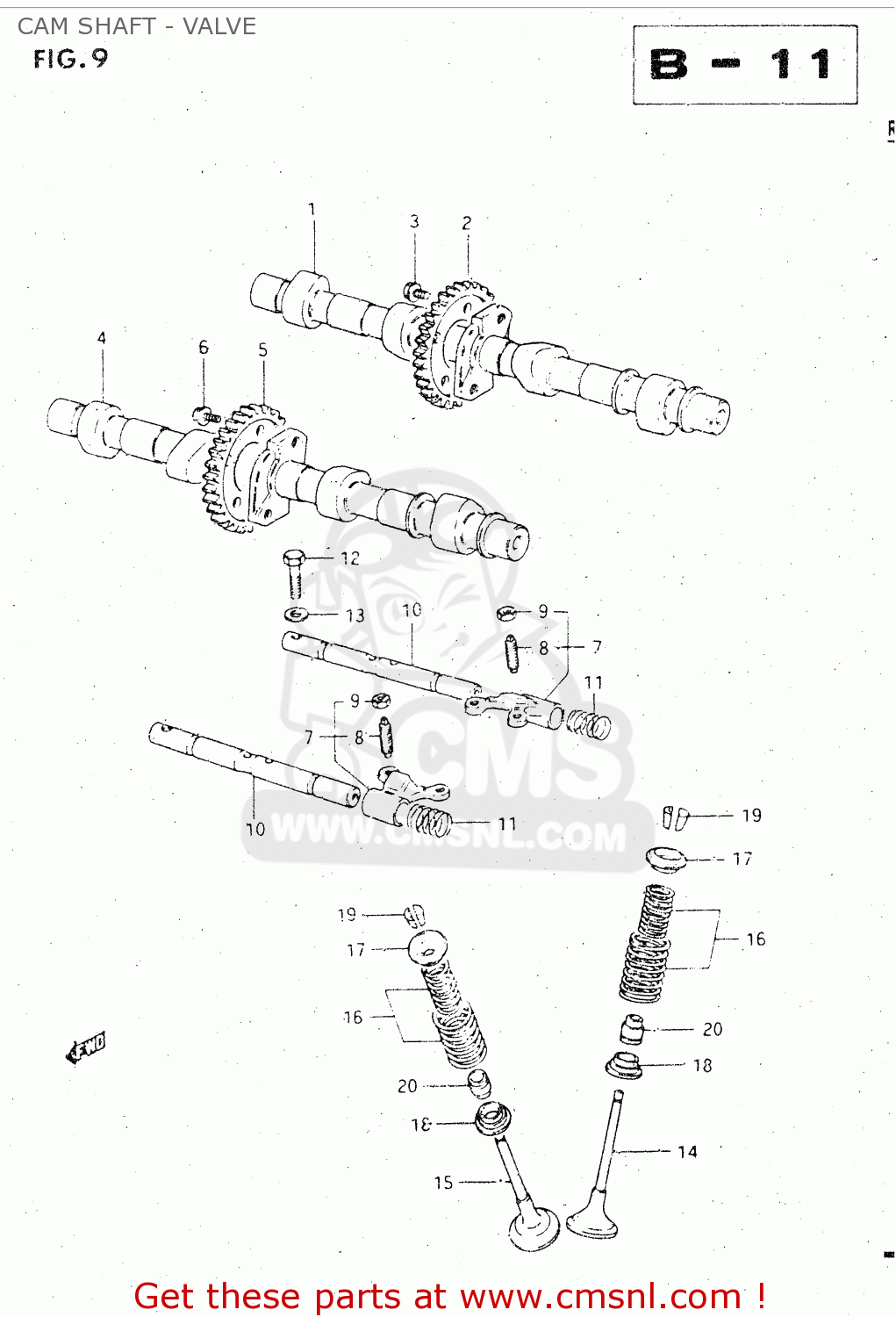

Cam shaft - valve diagram GSX500ES 1984 (E) GENERAL EXPORT (E01)

CAM SHAFT - VALVE GSX500ES 1984 (E) GENERAL EXPORT (E01)

CAM SHAFT - VALVE GSX500ES 1984 (E) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1271143403
ref: 1-1
MODEL E

CAMSHAFT,INTAKE

€ 99.50

1-2

1271143430
ref: 1-2
MODEL F

CAMSHAFT,INTAKE

€ 193.50

2

1274143401
ref: 2

SPROCKET,INTAKE CAMSHAFT

€ 23.00

3

0910307001
ref: 3

BOLT(7X11)

€ 2.00

4

1272143402
ref: 4

CAMSHAFT,EXHAUST

€ 193.50

5

1274143401
ref: 5

SPROCKET,INTAKE CAMSHAFT

€ 23.00

6

0910307001
ref: 6

BOLT(7X11)

€ 2.00

7

1284011400
ref: 7

ARM,VALVE ROCKER

€ 62.00

8

1284249210
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.50

9

1284349210
ref: 9

NUT,ADJUSTING

€ 3.00

10

1286143401
ref: 10

SHAFT,VALVE ROCKER

€ 25.50

11

0944013024
ref: 11

SPRING

€ 3.50

12

0110706306
ref: 12

BOLT

€ 2.50

13

0832221066
ref: 13

WASHER, LOWER

€ 2.00

14

1291143400
ref: 14

VALVE,INTAKE

€ 12.50

15

1291243400
ref: 15

VALVE,EXHAUST

€ 37.50

16

1292033230
ref: 16

SPRING SET,VALVE

€ 10.50

17

1293143400
ref: 17

RETAINER,VALVE SPRING

€ 5.50

18

1293333200
ref: 18

SEAT,VALVE SPRING

€ 4.50

19

1293243402
ref: 19

COTTER,VALVE

€ 1.50

20

0928905008
ref: 20

SEAL,OIL(5X10.5X8.4)

€ 6.00
