CYLINDER

GSX500ES 1984 (E) GENERAL EXPORT (E01)

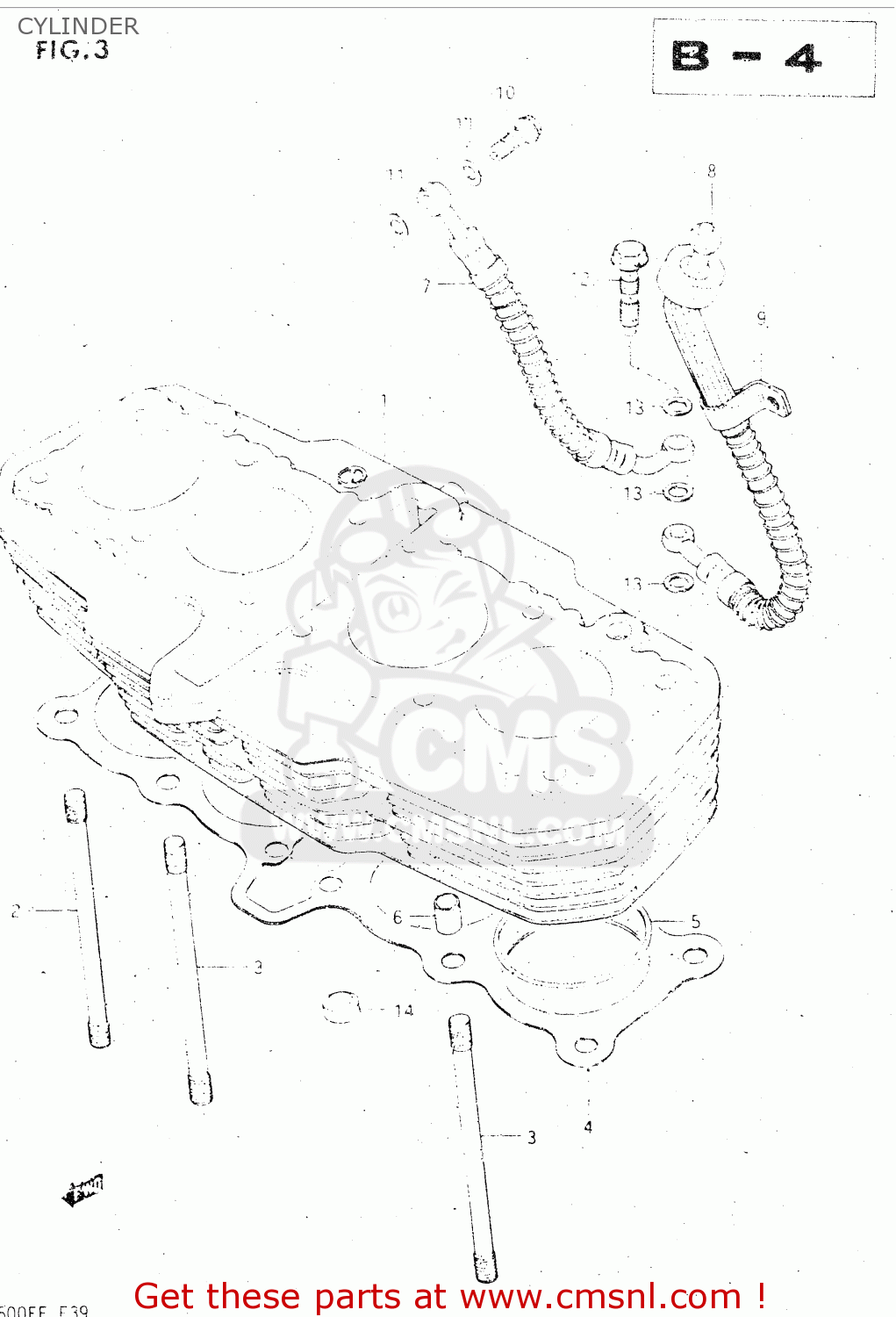

Cylinder diagram GSX500ES 1984 (E) GENERAL EXPORT (E01)

CYLINDER GSX500ES 1984 (E) GENERAL EXPORT (E01)
CYLINDER GSX500ES 1984 (E) GENERAL EXPORT (E01)
CYLINDER GSX500ES 1984 (E) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1121043410
ref: 1
CYLINDER
€ 0.00
2
0910808058
ref: 2
STUD
0910808058
€ 6.00
3
0910808129
ref: 3
STUD
€ 13.00
4-1
1124143402
ref: 4-1
MODEL E
GASKET,CYLINDER (MCA)
1124143402
€ 20.00
4-2
1124143403
ref: 4-2
MODEL F
GASKET,CYLINDER (MCA)
1124143403
€ 20.00
5
0928061001
ref: 5
O RING(D:2,ID:61)
0928061001
€ 4.00
6
0920611003
ref: 6
PIN
€ 2.00
7
1128143404
ref: 7
HOSE,OIL CRANKCASE,R
1128143404
€ 87.00
8
1128343404
ref: 8
FROM 11282-43404
HOSE,OIL CRANKCASE,L
1128343404
€ 77.50
9
1128443400
ref: 9
CLAMP,OIL HOSE CRANKCASE
1128443400
€ 4.00
10
0936008008
ref: 10
BOLT UNION
€ 4.00
11
0916808008
ref: 11
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
12
1128531301
ref: 12
BOLT,OIL PIPE
1128531301
€ 12.50
13
0916110009
ref: 13
FROM 09161-10005
WASHER(10X15X1.5)
0916110009
€ 2.00
14
1125202300
ref: 14
PAD,CYLINDER HEAD
€ 6.50
