FRONT BRAKE HOSE (MODEL E)

GSX500ES 1984 (E) GENERAL EXPORT (E01)

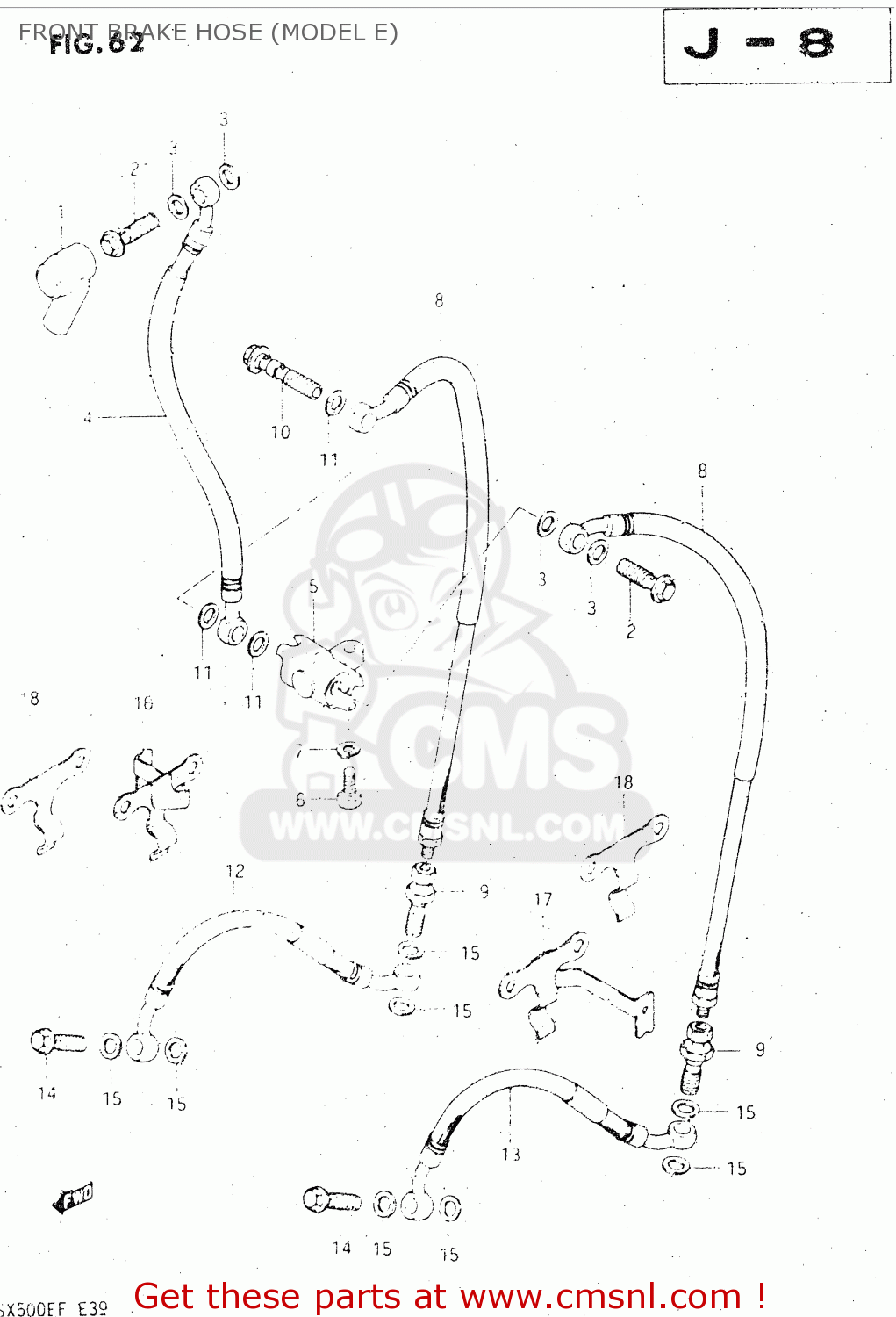

Front brake hose (model e) diagram GSX500ES 1984 (E) GENERAL EXPORT (E01)

FRONT BRAKE HOSE (MODEL E) GSX500ES 1984 (E) GENERAL EXPORT (E01)

FRONT BRAKE HOSE (MODEL E) GSX500ES 1984 (E) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2

0936010009
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948043400
ref: 4

HOSE,FRONT BRAKE

€ 58.50

5

5949145000
ref: 5

JOINT,BRAKE HOSE

€ 29.00

6

0110706208
ref: 6

BOLT

€ 2.00

7

0832121068
ref: 7

LOCK WASHER

€ 2.50

8

5924043402
ref: 8

HOSE,BRAKE NO.2

€ 52.00

9

5929016700
ref: 9

ADAPTER,BRAKE HOSE

€ 36.00

10

0936010008
ref: 10

BOLT,UNION

€ 7.00

11

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

12

5952043401
ref: 12

HOSE,ANTI-NOSE DIVE,RIGHT

€ 32.50

13

5953043401
ref: 13

HOSE,ANTI-NOSE DIVE,LEFT

€ 32.50

14

0936010021
ref: 14

BOLT UNION

€ 5.50

15

0916110009
ref: 15

WASHER(10X15X1.5)

€ 2.00

16

5926043400
ref: 16
GSX500EE E39

CLAMP,FRONT BRAKE HOSE

€ 0.00

17

5927043400
ref: 17
GSX500EE E39

CLAMP,FRONT BRAKE HOSE

€ 0.00

18

5926943400
ref: 18
GSX500ESE E15

CLAMP, HOSE

€ 4.00
