SEAT (MODEL Z)
GSX500ES 1984 (E) GENERAL EXPORT (E01)

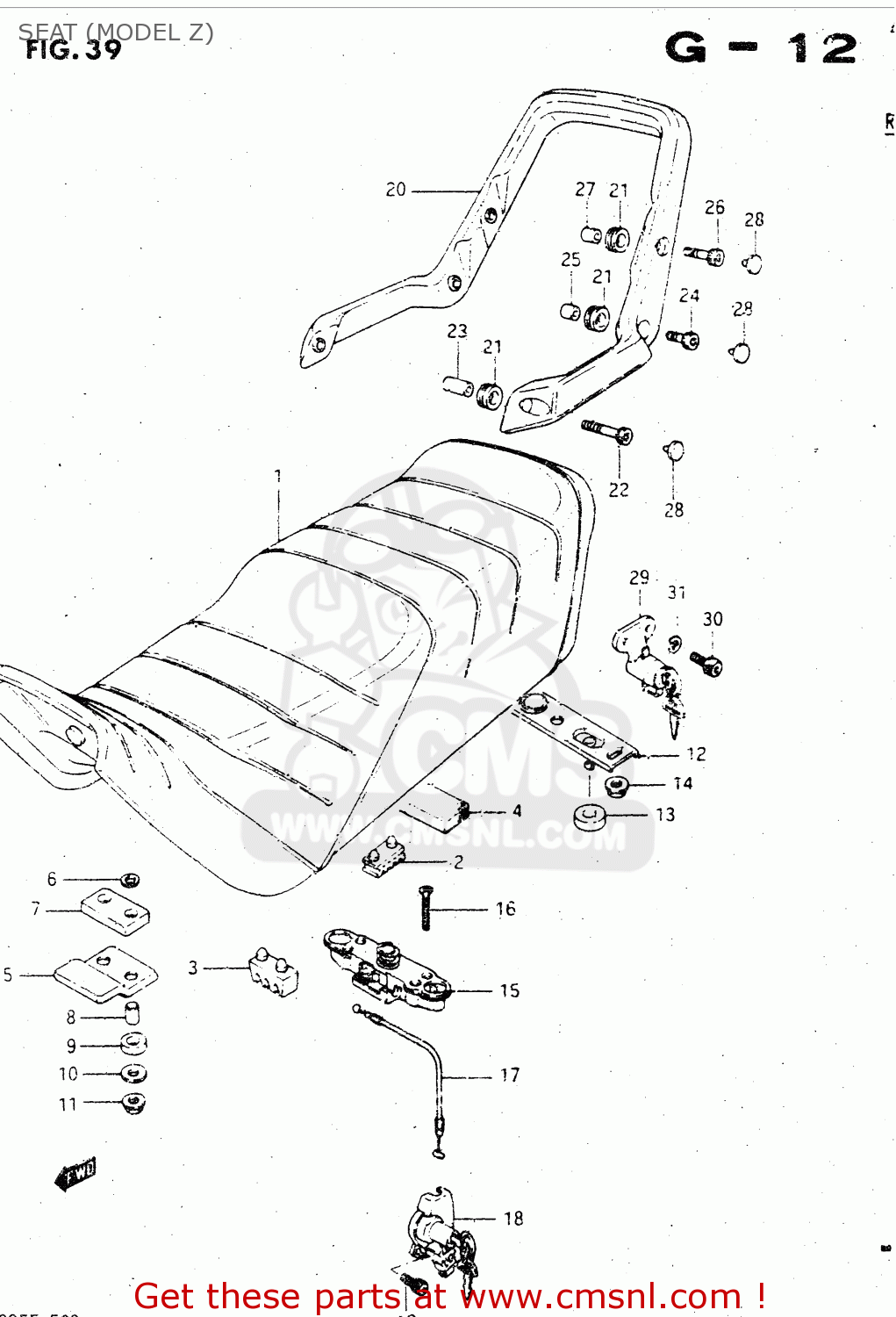

Seat (model z) diagram GSX500ES 1984 (E) GENERAL EXPORT (E01)
SEAT (MODEL Z) GSX500ES 1984 (E) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
451004341253L
ref: 1-1
FOR 7JH
SEAT ASSY (BLUE)
€ 415.00
1-2
451004341248H
ref: 1-2
FOR 7JJ
SEAT ASSY (BLAC)
€ 249.00
1-3
451004340253L
ref: 1-3
E15 FOR 7JH
SEAT ASSEMBLY
€ 245.50
1-4
451004340248H
ref: 1-4
E15 FOR 7JJ
SEAT ASSEMBLY
€ 245.50
2
4514931300
ref: 2
CUSHION,SEAT(40X20X15)
€ 2.00
3
4514945330
ref: 3
CUSHION,SUPPORT(50X25X32)
€ 2.00
4
9498229400
ref: 4
CUSHION(30X60X10)
€ 1.50
5
4511943401
ref: 5
PLATE,SEAT HOOK,FRONT
€ 0.00
6
0832221068
ref: 6
WASHER
€ 2.00
7
4512513600
ref: 7
CUSHION,SEAT
€ 3.00
8
0918006035
ref: 8
SPACER (6.1X8X12)
€ 2.50
9
0932426470
ref: 9
CUSHION
€ 0.00
10
0916006006
ref: 10
WASHER
€ 2.00
11
0831616066
ref: 11
NUT
€ 2.50
12
4521043400
ref: 12
STRIKER, SEAT LOCK
€ 18.50
13
4521343400
ref: 13
CUSHION,STRIKER
€ 3.50
14
0831626066
ref: 14
NUT
€ 2.00
15
4522013601
ref: 15
LOCK ASSY,SEAT STRIKER
€ 47.00
16
0211206306
ref: 16
SCREW,6X30
€ 2.50
17
4528043400
ref: 17
CABLE,SEAT LOCK
€ 13.00
18
9570043400KEY
ref: 18
LOCK ASSEMBLY,SEAT & HELMET
€ 57.00
19
0711006165
ref: 19
BOLT
€ 3.00
20
4621043400
ref: 20
HANDLE,PILLION RIDER
€ 91.50
21
4552243401
ref: 21
GROMMET,PILION RIDER HANDLE
€ 4.00
22
0910608037
ref: 22
BOLT
€ 3.50
23
4621943400
ref: 23
SPACER,PILLION RIDER HOLDER
€ 2.50
24
0910608042
ref: 24
BOLT
€ 3.00
25
4621943420
ref: 25
SPACER,PILLION RIDER HOLDER
€ 3.00
26
0910608039
ref: 26
BOLT
€ 3.50
27
4621943411
ref: 27
SPACER,PILLION RIDER HOLDER
€ 3.50
28
0925006008
ref: 28
CAP(OD:10)
€ 3.00
29
9570043410KEY
ref: 29
LOCK ASSEMBLY,HELMET
€ 35.00
30
0711006165
ref: 30
BOLT
€ 3.00
31
0832121064
ref: 31
WASHER,LOCK
€ 2.00
