FRONT DAMPER

GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

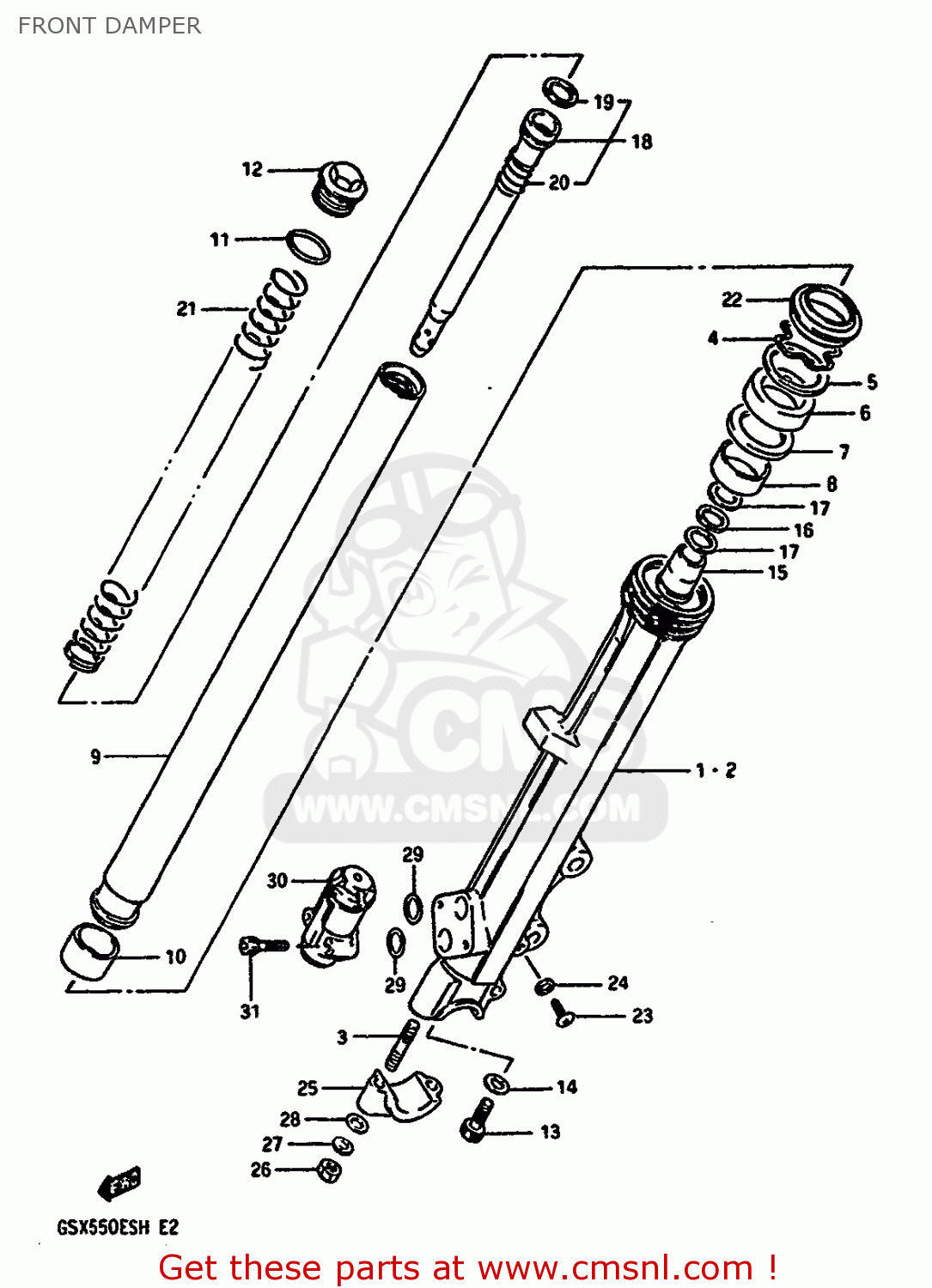

Front damper diagram GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

FRONT DAMPER GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
FRONT DAMPER GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
FRONT DAMPER GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
0
5110343610
ref: 0
DAMPER ASSY, RH
€ 293.50
0
5110443610
ref: 0
DAMPER ASSY, LH
€ 293.50
1
511304340515T
ref: 1
TUBE,FORK,OUTER,RIGHT
€ 196.50
2
511404340515T
ref: 2
TUBE,FORK,LEFT,OUTER
€ 0.00
3
0141108308
ref: 3
STUD 8X30
0141108308
€ 2.00
4
5115640301
ref: 4
RING,STOPPER
5115640301
€ 4.50
5
5115849000
ref: 5
WASHER. FRONT FORK
5115849000
€ 7.00
6
5115349001
ref: 6
OIL SEAL,FRONT FORK
5115349001
€ 16.50
7
5115849500
ref: 7
WASHER
5115849500
€ 4.00
8
5116749510
ref: 8
METAL,SLIDE
€ 10.50
9
5111043430
ref: 9
TUBE,FORK INNER
5111043430
€ 264.00
10
5112149510
ref: 10
METAL,FR FORK PISTON
5112149510
€ 17.50
11
5111738260
ref: 11
O RING
5111738260
€ 2.50
12
5135143410
ref: 12
CAP
€ 26.50
13
5114716510
ref: 13
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
14
5114841310
ref: 14
GASKET (NAS)
5114841310
€ 2.50
15
5119545420
ref: 15
PIECE,OIL LOCK
5119545420
€ 15.50
16
5112345420
ref: 16
WASHER
5112345420
€ 3.50
17
5112545420
ref: 17
SPRING,LEAF
5112545420
€ 3.50
18
5114643405
ref: 18
CYLINDER,FRONT FORK
€ 0.00
19
5119643400
ref: 19
RING,PISTON
€ 7.00
20
5117743400
ref: 20
SPRING,REBOUND
€ 0.00
21
5117143410
ref: 21
SPRING
€ 41.00
22
5117343400
ref: 22
SEAL,DUST
5117343400
€ 14.00
23
0211204085
ref: 23
SCREW
0211204085
€ 2.00
24
5118303010
ref: 24
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
25
511324340015T
ref: 25
HOLDER,AXLE
€ 24.00
26
0831011085
ref: 26
NUT
€ 1.50
27
0832121084
ref: 27
WASHER,LOCK,8.
0832121084
€ 2.50
28
0832211084
ref: 28
WASHER
0832211084
€ 1.50
29
5179900A00
ref: 29
O RING
5179900A00
€ 5.50
30
5177043405
ref: 30
PDF ASSEMBLY
5177043405
€ 169.50
31
0711006408
ref: 31
BOLT
€ 2.50
