REAR CALIPERS

GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

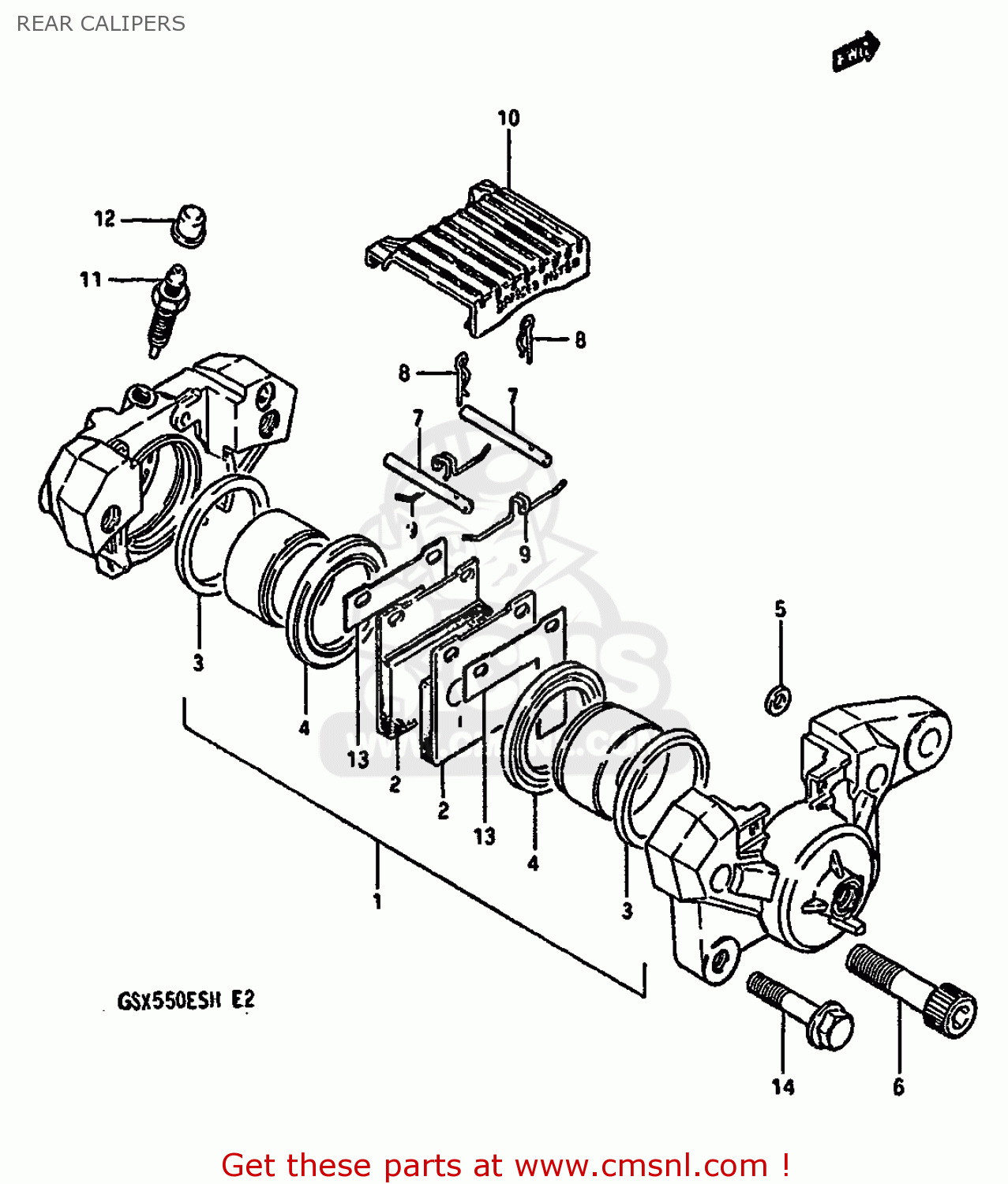

Rear calipers diagram GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

6910033410
ref: 0

CALIPER ASSEMBLY,REAR

€ 376.00

6910016820
ref: 1

PISTON SET

€ 192.50

5913016720
ref: 2

PAD

€ 23.25

5910718410
ref: 3

SEAL,PISTON

€ 17.00

5910816700
ref: 4

BOOT

€ 16.50

6910734200
ref: 5

SEAL,JOINT

€ 12.00

6914534200
ref: 6

BOLT,CALIPER HOUSING

€ 9.50

6914145000
ref: 7

PIN,PAD

€ 6.50

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

5914316700
ref: 9

SPRING

€ 7.50

5915116701
ref: 10

COVER

€ 13.50

5912118410
ref: 11

BLEEDER

€ 8.00

5912218410
ref: 12

CAP,BREATHER

€ 6.00

5937133420
ref: 13

SHIM

€ 14.00

0151708305
ref: 14

BOLT

€ 3.00
