FUEL TANK (GSX550EFF/EFG)

GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

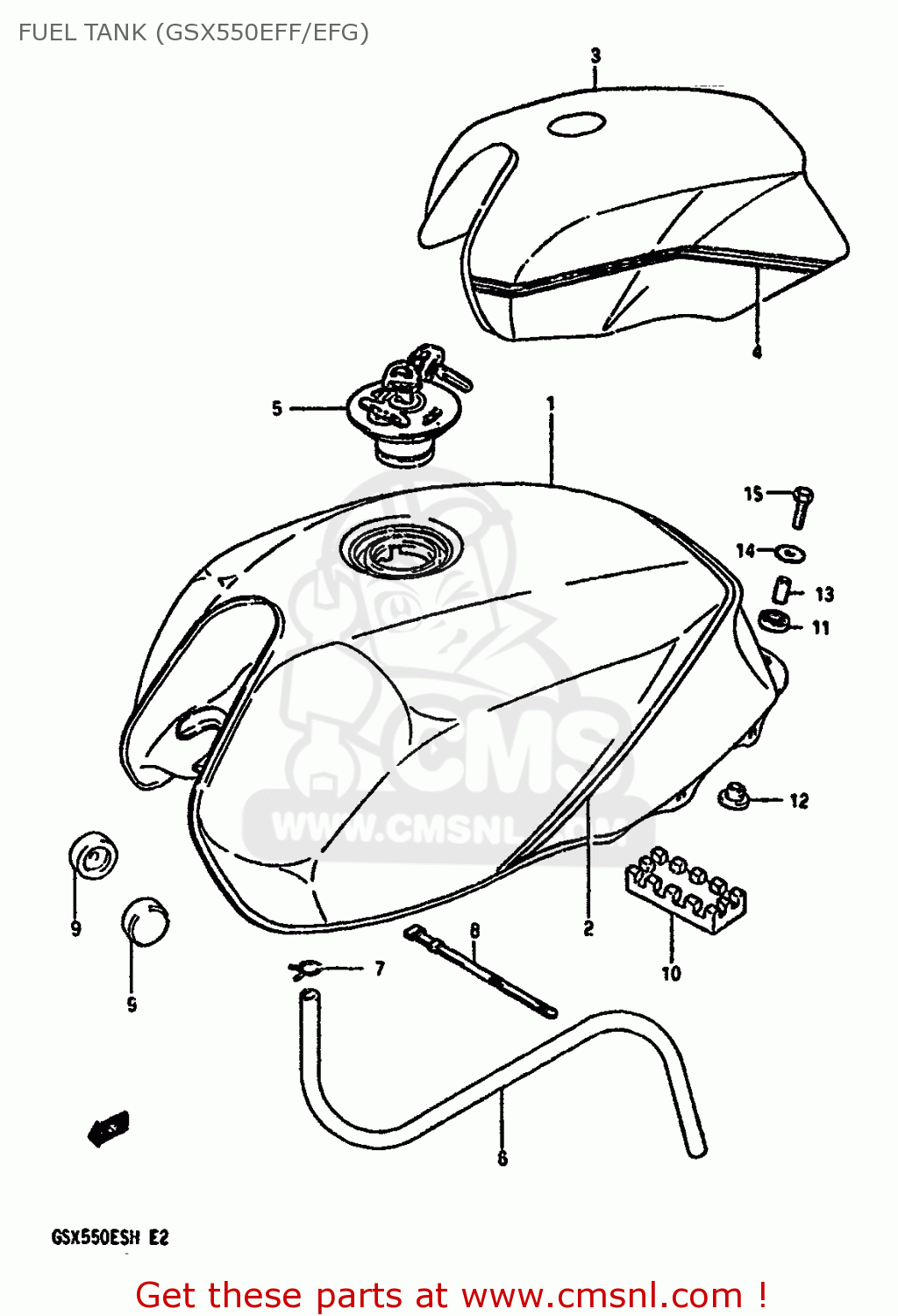

Fuel tank (gsx550eff/efg) diagram GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

FUEL TANK (GSX550EFF/EFG) GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
FUEL TANK (GSX550EFF/EFG) GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
FUEL TANK (GSX550EFF/EFG) GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1-1
49100434707JH
ref: 1-1
MODEL F
TANK ASSY,FUEL
€ 582.00
1-2
49100434807JH
ref: 1-2
MODEL F E22
TANK ASSY,FUEL
€ 582.00
1-3
49100434707JJ
ref: 1-3
MODEL F
TANK ASSY,FUEL
€ 582.00
1-4
49100434807JJ
ref: 1-4
MODEL F E22
TANK ASSY,FUEL
€ 582.00
2
6811043470019
ref: 2
MODEL F
TAPE SET,FUEL TANK (BLACK)
€ 0.00
3-1
44100436507JK
ref: 3-1
MODEL G
TANK ASSY,FUEL
€ 582.00
3-2
44100436607JK
ref: 3-2
MODEL G E22
TANK,FUEL
€ 582.00
3-3
44100436508BN
ref: 3-3
MODEL G
TANK ASSY,FUEL
€ 582.00
3-4
44100436608BN
ref: 3-4
MODEL G E22
TANK ASSY,FUEL
€ 582.00
4-1
68110434907JK
ref: 4-1
MODEL G,FOR 7JK
TAPE SET,FUEL TANK
€ 0.00
4-2
68110434908BN
ref: 4-2
MODEL G,FOR 8BN
TAPE SET,FUEL TANK
€ 0.00
5
4420043410KEY
ref: 5
CAP ASSY,FUEL TANK
4420043410KEY
€ 125.50
6
0934305165
ref: 6
HOSE,FUEL
0934305165
€ 13.00
7
0940108402
ref: 7
CLIP
0940108402
€ 1.50
8
0940718401
ref: 8
CLAMP(L:187)
0940718401
€ 2.00
9
0932910007
ref: 9
CUSHION
0932910007
€ 3.00
10
4454143400
ref: 10
CUSHION,FUEL TANK
4454143400
€ 7.50
11
0932014013
ref: 11
CUSHION
0932014013
€ 3.00
12
0932010020
ref: 12
CUSHION
0932010020
€ 4.00
13
0918006107
ref: 13
SPACER (6.4X9X20)
0918006107
€ 3.00
14
0916006072
ref: 14
WASHER (6.5X24X1.6)
0916006072
€ 2.00
15
0110706306
ref: 15
BOLT
0110706306
€ 2.50
