STAND

GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

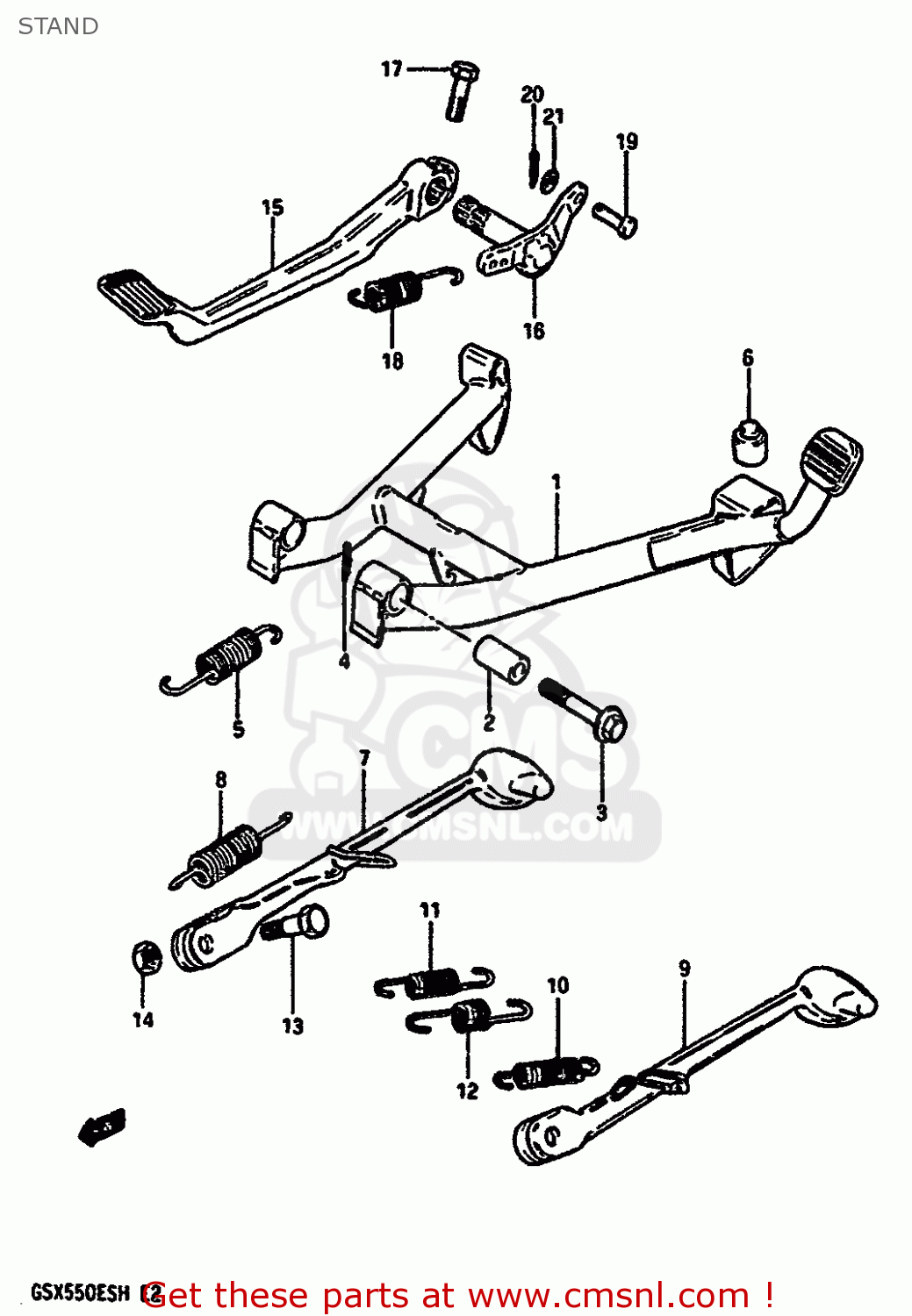

Stand diagram GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

STAND GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
STAND GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
STAND GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1-1
4210043400
ref: 1-1
STAND,CENTER
4210043400
€ 100.50
1-2
4210043410
ref: 1-2
E22,E26
STAND, CENTER
€ 0.00
2
0918010084
ref: 2
SPACER (10.5X16X31.8)
€ 3.00
3
0910110028
ref: 3
BOLT 10X50
€ 4.50
4
0938510001
ref: 4
CLIP
0938510001
€ 1.50
5-1
0944318012
ref: 5-1
SPRING
0944318012
€ 9.00
5-2
0944318013
ref: 5-2
E22,E26
SPRING
€ 3.00
6
0932110001
ref: 6
CUSHION
0932110001
€ 2.50
7
423104340113L
ref: 7
STAND,SIDE
€ 56.00
8
0944315017
ref: 8
SPRING
0944315017
€ 4.00
9
423104341313L
ref: 9
E18,E22,E26,MODEL G/
STAND, PROP (SILVER)
€ 0.00
10
0944317015
ref: 10
E18,E26,MODEL G/H E2
SPRING
0944317015
€ 7.00
11
0944314033
ref: 11
E22
SPRING, INNER
0944314033
€ 6.00
12
0944322005
ref: 12
E22
SPRING, OUTER
€ 7.00
13
0911110019
ref: 13
BOLT L:30
0911110019
€ 4.50
14
0831022106
ref: 14
NUTM10X1.25X8
€ 2.00
15
4311143401
ref: 15
PEDAL,BRAKE
€ 75.00
16
4312043400
ref: 16
ARM,BRAKE PEDAL ROD
€ 42.00
17
0151708258
ref: 17
BOLT
0151708258
€ 2.50
18
0944314002
ref: 18
SPRING
0944314002
€ 2.50
19
0920006029
ref: 19
PIN
0920006029
€ 1.50
20
0411120158
ref: 20
PIN
0411120158
€ 1.50
21
0832221067
ref: 21
WASHER
0832221067
€ 2.00
