STEERING STEM (GSX550EF/EUF/EG/EUG/EUH)

GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

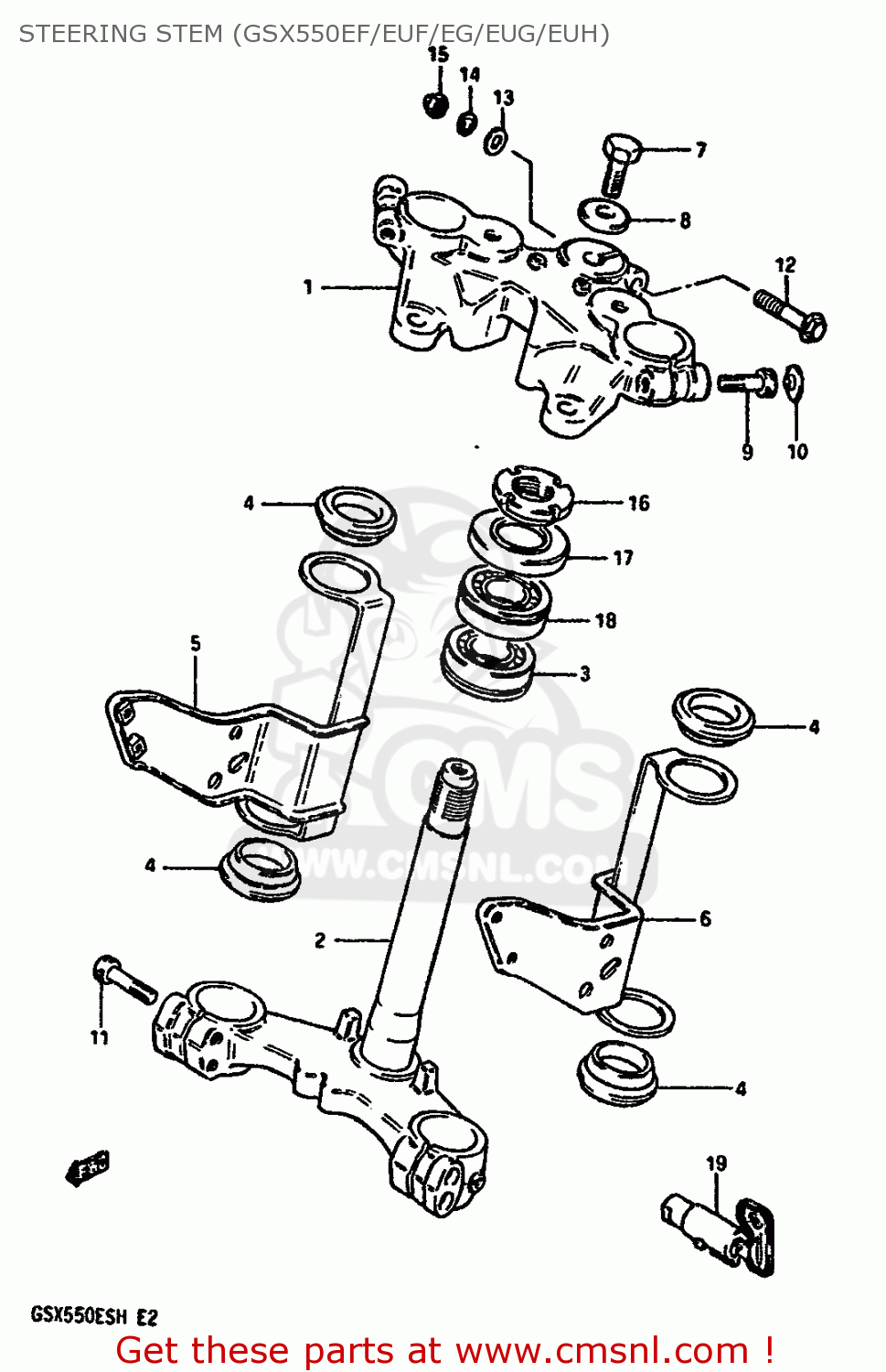

Steering stem (gsx550ef/euf/eg/eug/euh) diagram GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

STEERING STEM (GSX550EF/EUF/EG/EUG/EUH) GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
STEERING STEM (GSX550EF/EUF/EG/EUG/EUH) GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
STEERING STEM (GSX550EF/EUF/EG/EUG/EUH) GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
513114340015T
ref: 1
HEAD,STEERING STEM
513114340015T
€ 134.00
2
514104342015T
ref: 2
STEM,STEERING
514104342015T
€ 217.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
5155349000
ref: 4
CUSHION,HEADLAMP BRACKET
5155349000
€ 4.50
5
515304340115T
ref: 5
BRACKET,HEADLAMP,RIGHT
515304340115T
€ 37.00
6
515404340115T
ref: 6
BRACKET,HEADLAMP,LEFT
515404340115T
€ 39.00
7
5135345380
ref: 7
NUT,STEM HEAD
€ 8.50
8
5135649300A
ref: 8
WASHER,STEERING STEM B
€ 4.00
9
5135200A00
ref: 9
BOLT,FORK INNER TUBE FITTING
5135200A00
€ 6.00
10
0925008010
ref: 10
CAP(OD:20)
0925008010
€ 2.50
11
0711008305
ref: 11
BOLT, REAR (8X30)
0711008305
€ 3.00
12
0151708504
ref: 12
BOLT, UPPER
€ 2.50
13
0832211084
ref: 13
WASHER
0832211084
€ 1.50
14
0832121084
ref: 14
WASHER,LOCK,8.
0832121084
€ 2.50
15
0831311085
ref: 15
NUT,M8X1.25X12
€ 2.00
16
5163134200
ref: 16
NUT,STEERING STEM
5163134200
€ 23.00
17
5164340502
ref: 17
DUST SEAL,STEERING UPR
5164340502
€ 8.00
18
0926525008
ref: 18
TAPER,ROLLER BEARING
0926525008
€ 48.50
19
5190030901
ref: 19
E22
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
