SEAT TAIL COVER (GSX550EF/EUF/EG/EUG)

GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

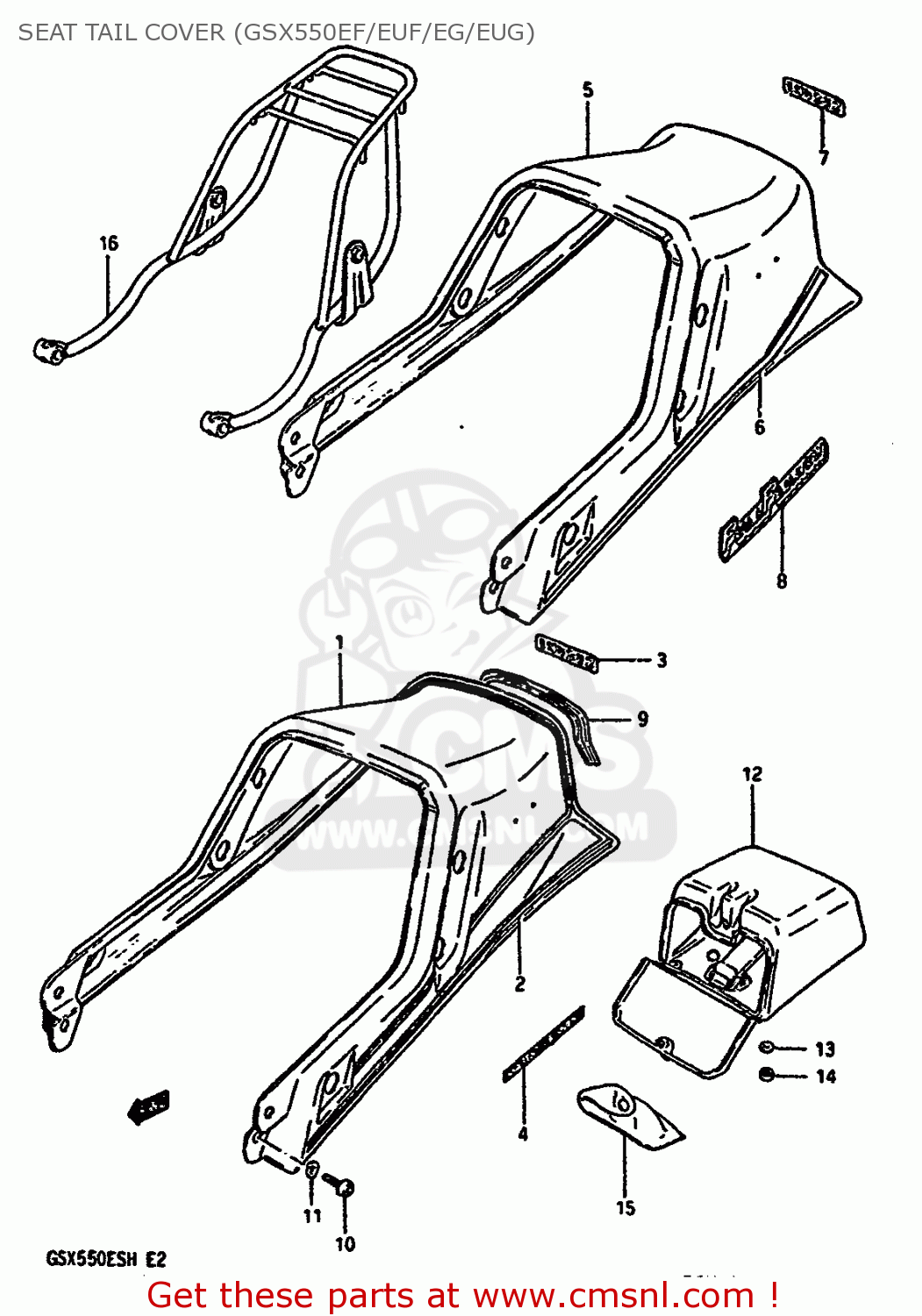

Seat tail cover (gsx550ef/euf/eg/eug) diagram GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)

SEAT TAIL COVER (GSX550EF/EUF/EG/EUG) GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
SEAT TAIL COVER (GSX550EF/EUF/EG/EUG) GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
SEAT TAIL COVER (GSX550EF/EUF/EG/EUG) GSX550E 1985 (F) (E01 E02 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1-1
45590434407JH
ref: 1-1
MODEL F
COVER,SEAT TAIL
€ 186.50
1-2
45590434407JJ
ref: 1-2
MODEL F
COVER,SEAT TAIL
€ 186.50
2-1
68160434507JF
ref: 2-1
MODEL F,FOR 7JH
TAPE SET,SEAT TAIL COVER
€ 0.00
2-2
68160434507JG
ref: 2-2
MODEL F,FOR 7JJ
TAPE SET,SEAT TAIL COVER
€ 0.00
3
6816631300064
ref: 3
MODEL F
EMBLEM(WHITE)
6816631300064
€ 3.50
4
682350470087W
ref: 4
MODEL F
EMBLEM
682350470087W
€ 16.00
5-1
45510436207JH
ref: 5-1
MODEL G
COVER,SEAT TAIL
€ 0.00
5-2
45510436207JK
ref: 5-2
MODEL G
COVER,SEAT TAIL
€ 186.50
6-1
6876043400019
ref: 6-1
MODEL G,FOR 7JH
TAPE SET
€ 0.00
6-2
6876043400064
ref: 6-2
MODEL G,FOR 7JK
TAPE SET
€ 0.00
7
6816631300064
ref: 7
MODEL G
EMBLEM(WHITE)
6816631300064
€ 3.50
8
6823540A1066P
ref: 8
MODEL G
EMBLEM
6823540A1066P
€ 5.00
9
4556243401
ref: 9
BLIND,SEAT TAIL COVER
€ 5.50
10
0211206168
ref: 10
SCREW
0211206168
€ 2.50
11
0832121067
ref: 11
WASHER,LOCK
0832121067
€ 2.50
12
9499043400
ref: 12
BOX,SEAT TAIL
€ 30.50
13
0916906010
ref: 13
WASHER
0916906010
€ 3.00
14
0831931068
ref: 14
NUT
0831931068
€ 2.50
15
0980000269
ref: 15
TOOL ASSY
€ 53.00
16
4631043400
ref: 16
OPT
CARRIER, SPORTS
€ 75.50
