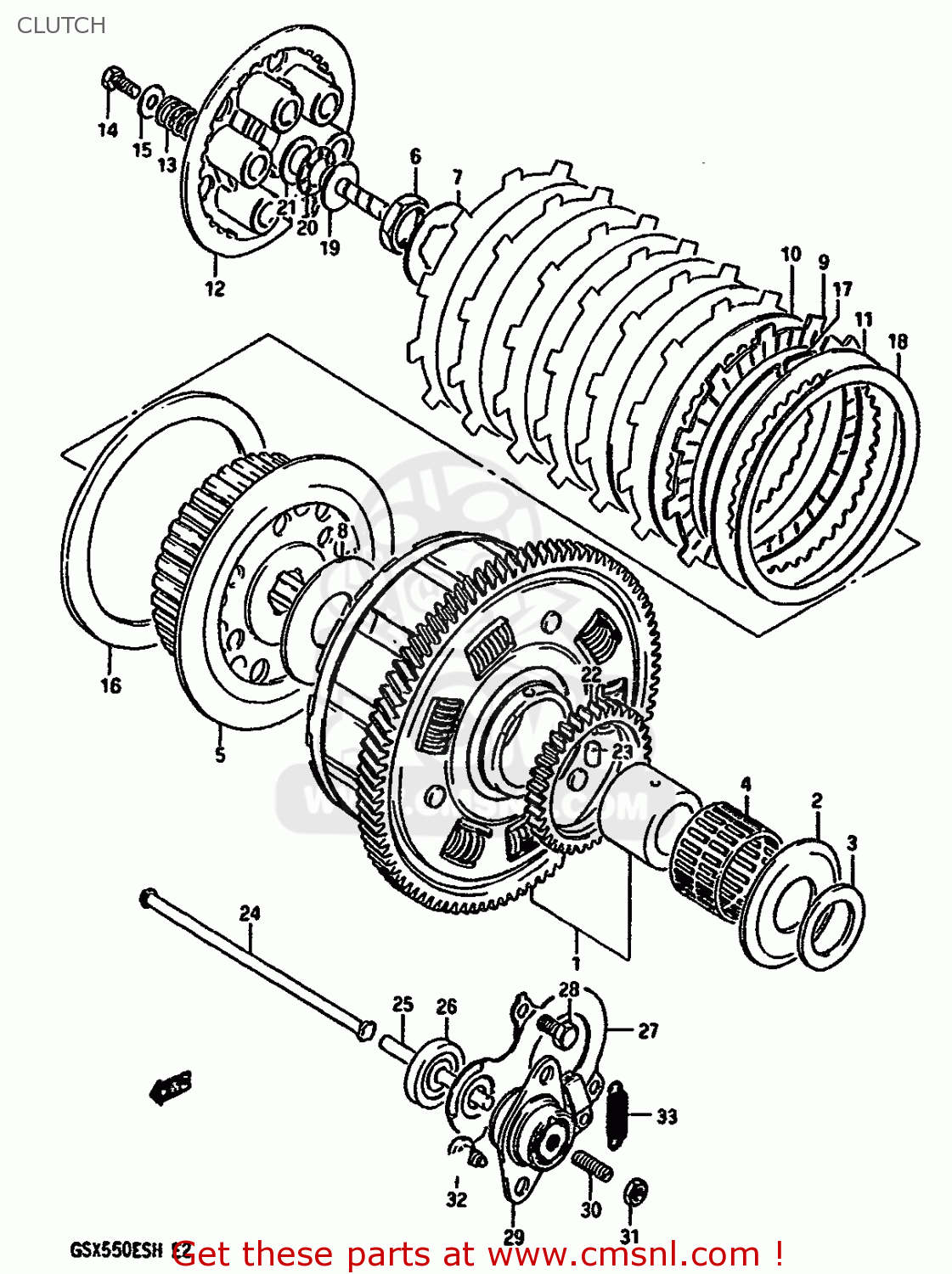

CLUTCH

ref

part #

description

quantity

1

2120043810
ref: 1
NT:89

GEAR ASSEMBLY,PRIMARY DRIVE

€ 235.50

2

0916025038
ref: 2

WASHER

€ 4.50

3

0821125405
ref: 3

WASHER

€ 3.00

4

0926340004
ref: 4

BEARING(40X45X32)

€ 24.50

5

2141043401
ref: 5

HUB,CLUTCH SLEEVE

€ 69.00

6

0914024007
ref: 6

NUT

€ 4.50

7

0916725007
ref: 7

WASHER,LOCK

€ 7.50

8

0916025038
ref: 8

WASHER

€ 4.50

9

2144145001
ref: 9

PLATE,CLUTCH DRIVE (NAS)

€ 20.00

10

2145145000
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

11

2145131000
ref: 11

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

12

2146216501
ref: 12

DISC,CLUTCH PRESSURE

€ 51.00

13

0944019004
ref: 13

SPRING

€ 3.00

14

0110706166
ref: 14

BOLT

€ 2.00

15

0916006020
ref: 15

WASHER

€ 2.00

16

2147145101
ref: 16

SEAT,WAVE WASHER

€ 16.00

17

2148145100
ref: 17

RING,STOPPER

€ 5.00

18

0916400003
ref: 18

WASHER

€ 9.00

19

2312144100
ref: 19

PIECE,CLUTCH PUSH

€ 21.50

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0916015015
ref: 21

WASHER

€ 4.00

22

1632143400
ref: 22

GEAR,OIL PUMP DRIVE

€ 41.00

23

0926106005
ref: 23

PIN

€ 0.00

24

2311031300
ref: 24

ROD,CLUTCH PUSH

€ 25.00

25

2311115501
ref: 25

ROD,CLUTCH PUSH,L

€ 11.50

26

0928506018
ref: 26

SEAL,OIL(6X34X7.5)

€ 12.00

27

2311743400
ref: 27

PLATE,CLUTCH PUSH ROD

€ 8.00

28

0110706127
ref: 28

BOLT

€ 2.00

29

2320031300
ref: 29

SCREW ASSY,CLUTCH RELEASE

€ 104.50

30

0913406010
ref: 30

SCREW(6X25)

€ 3.00

31

0831022067
ref: 31

NUT 6MM

€ 2.50

32

0311106168
ref: 32

SCREW

€ 1.50

33

0944308001
ref: 33

SPRING

€ 3.00
