GSX550E 1987 (H)

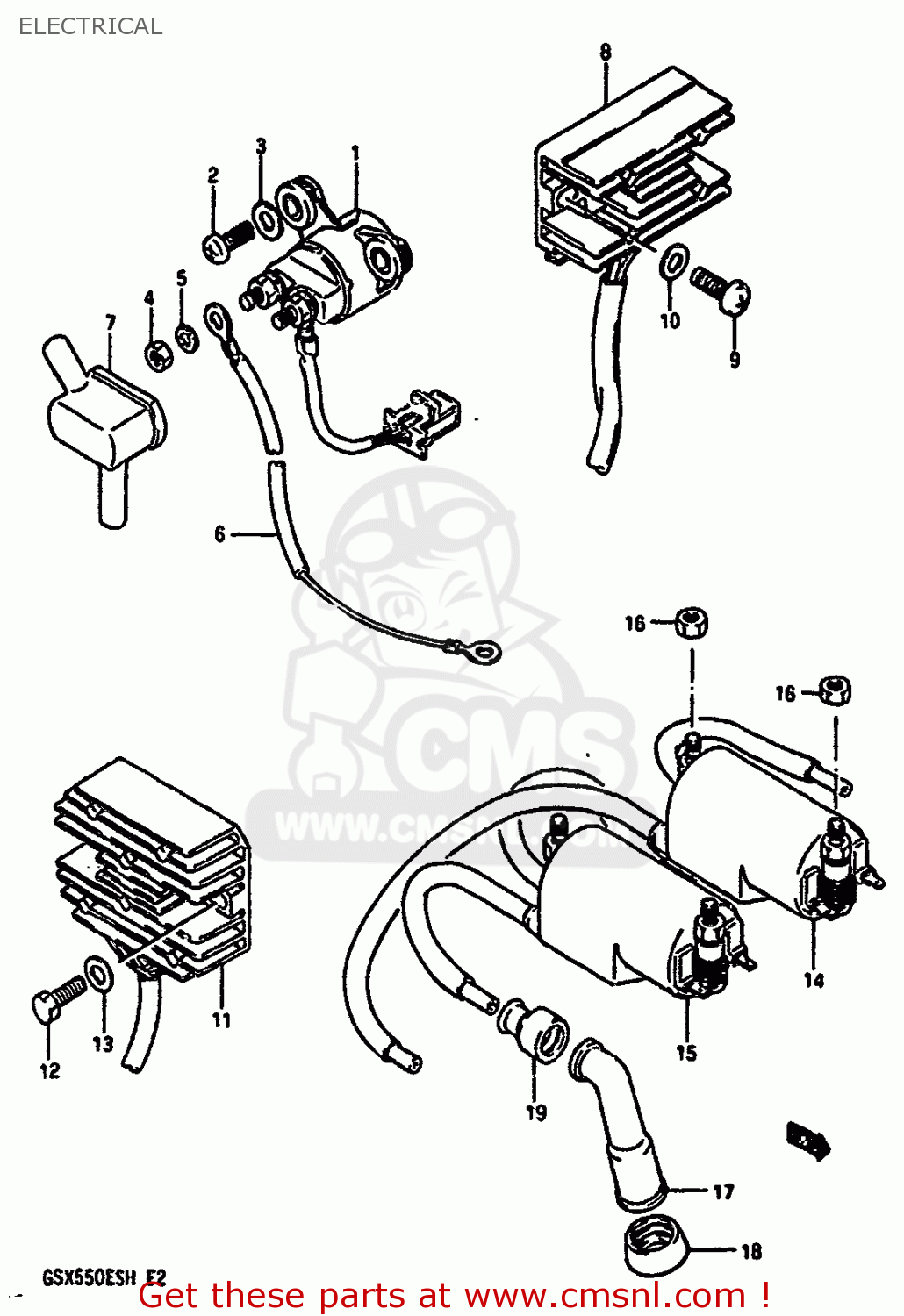

Electrical diagram GSX550E 1987 (H)
ELECTRICAL GSX550E 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1
3180043411
ref: 1
RELAY ASSY,STARTING MOTOR
€ 92.50
2
0211206208
ref: 2
SCREW
€ 2.00
3
0916006007
ref: 3
WASHER
€ 2.00
4
0831011066
ref: 4
NUT
€ 2.00
5
0832121066
ref: 5
WASHER,LOCK
€ 2.00
6
3385043441
ref: 6
WIRE,STARTER MOTOR LEAD
€ 24.50
7
3186143410
ref: 7
CAP,STARTER RELAY TERMINAL
€ 6.00
8
3280043400
ref: 8
MODEL F
RECTIFIER ASSEMBLY
€ 380.50
9
0211206206
ref: 9
SCREW
€ 2.00
10
0832221066
ref: 10
WASHER, LOWER
€ 2.00
11
3280043410
ref: 11
MODEL G/H
RECTIFIER ASSEMBLY
€ 289.00
12
0912806023
ref: 12
SCREW(6X20)
€ 1.50
13
0832221064
ref: 13
WASHER
€ 2.00
14
3341043420
ref: 14
COIL ASSEMBLY,IGNITION
€ 348.00
15
3342043420
ref: 15
COIL ASSEMBLY,IGNITION
€ 348.00
16
0831011068
ref: 16
NUT
€ 2.50
17
3351045010
ref: 17
CAP ASSY,SPARK PLUG
€ 23.00
18
3354124510
ref: 18
SEAL,SPARK PLUG CAP
€ 7.00
19
3354298000
ref: 19
SEAL,SPARK PLU
€ 4.50
