SPEEDOMETER-TACHOMETER (GSX550EF/EUF/EG/EUG/EUH)
GSX550E 1987 (H)

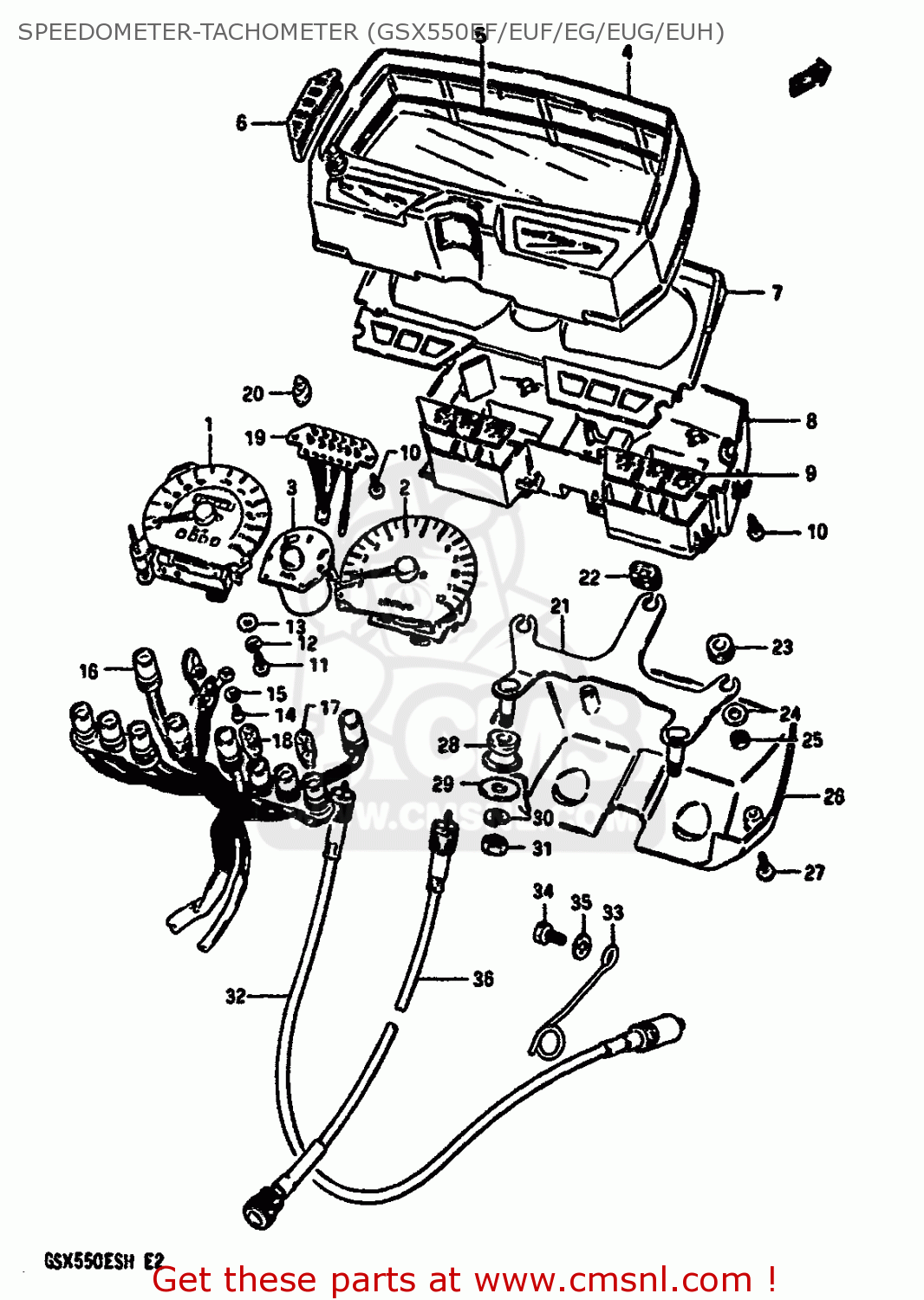

Speedometer-tachometer (gsx550ef/euf/eg/eug/euh) diagram GSX550E 1987 (H)
SPEEDOMETER-TACHOMETER (GSX550EF/EUF/EG/EUG/EUH) GSX550E 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412043420
ref: 1-1
SPEEDOMETER (MILE/KILO)
€ 0.00
1-2
3412043410
ref: 1-2
SPEEDOMETER (KILO)
€ 330.50
2-1
3422043412
ref: 2-1
TACHOMETER
€ 209.50
2-2
3422043411
ref: 2-2
GSX550EUF/EUG/EUH E2
METER,TACHOMETER
€ 186.50
2-3
3422043482
ref: 2-3
E24
METER,TACHOMETER
€ 209.50
3
3432043410
ref: 3
METER,FUEL
€ 78.50
4-1
3415043410
ref: 4-1
HOOD,METER
€ 72.50
4-2
3415043440
ref: 4-2
E22
HOOD,METER
€ 72.50
5
3411243410
ref: 5
GLASS,SPEEDOMETER
€ 36.50
6
3418943410
ref: 6
CUSHION,METER CASE
€ 12.50
7-1
3415343410
ref: 7-1
PLATE,METER WINDOW
€ 17.50
7-2
3415343440
ref: 7-2
E22
PLATE, WINDOW
€ 23.00
8
3411143410
ref: 8
CASE,METER,INNER
€ 64.00
9
3630043810
ref: 9
LENS SET,PILOT
€ 24.00
10
3645634510
ref: 10
SCREW,GEAR INDICATOR
€ 2.00
11
0211203108
ref: 11
SCREW
€ 1.50
12
0832121038
ref: 12
LOCK WASHER
€ 1.50
13
0832221038
ref: 13
WASHER
€ 2.50
14
0211203068
ref: 14
SCREW
€ 2.00
15
0832221038
ref: 15
WASHER
€ 2.50
16-1
3417043410
ref: 16-1
SOCKET
€ 95.50
16-2
3417043440
ref: 16-2
E22
SOCKET
€ 0.00
17
0947112082
ref: 17
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
18
0947112077
ref: 18
BULB(12V1.7W,T10,WB121)
€ 1.00
19
3645343410
ref: 19
SOCKET,GEAR INDICATOR
€ 30.00
20
0947112071
ref: 20
BULB(14V1.12W)
€ 5.00
21
3495043410
ref: 21
BRACKET,METER
€ 17.00
22
3499545720
ref: 22
CUSHION,METER
€ 3.00
23
3499643410
ref: 23
CUSHION,METER
€ 3.00
24
0916005031
ref: 24
WASHER
€ 1.50
25
0831022058
ref: 25
NUT
€ 2.50
26
3419343410
ref: 26
COVER,METER,UNDER
€ 59.00
27
0311204125
ref: 27
SCREW
€ 1.50
28
3495631001
ref: 28
CUSHION,METER BRACKET
€ 4.50
29
0916008057
ref: 29
WASHER (8.5X20X1.6)
€ 2.00
30
0832121084
ref: 30
WASHER,LOCK,8.
€ 2.50
31
0831011085
ref: 31
NUT
€ 1.50
32
3491043410
ref: 32
CABLE ASSEMBLY,SPEEDOMETER
€ 65.00
33
3493845100
ref: 33
CLAMP,SPEEDOMETER CABLE
€ 14.50
34
0110706167
ref: 34
BOLT
€ 3.00
35
0832221067
ref: 35
WASHER
€ 2.00
36
3494044311
ref: 36
CABLE ASSY,TACHOMETER
€ 13.50
