REAR MASTER CYLINDER

GSX550E 1987 (H)

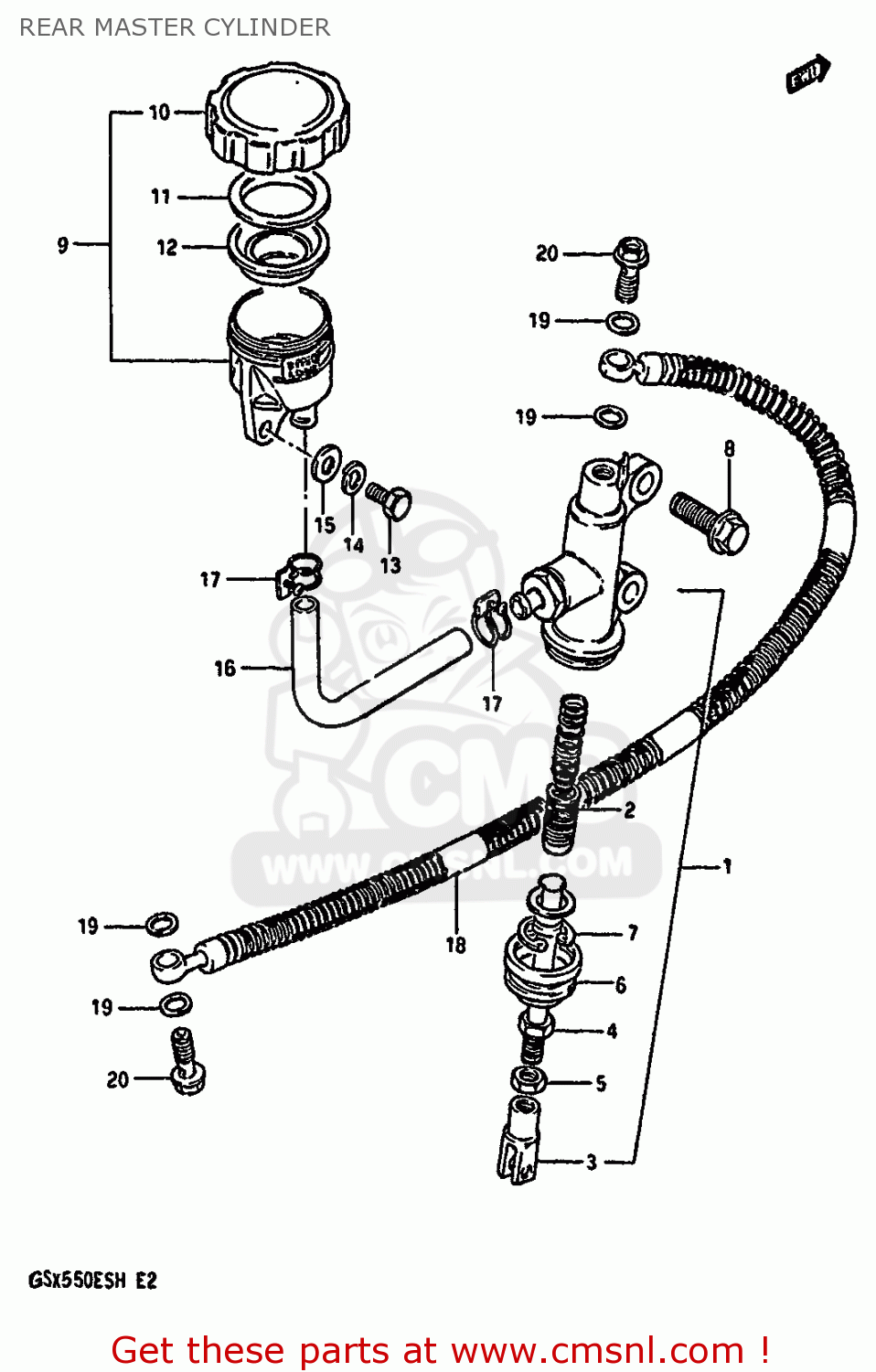

Rear master cylinder diagram GSX550E 1987 (H)

REAR MASTER CYLINDER GSX550E 1987 (H)
REAR MASTER CYLINDER GSX550E 1987 (H)
REAR MASTER CYLINDER GSX550E 1987 (H)
prices are in EUR
ref
part #
description
quantity
1
6960043400
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
6960043400
€ 201.00
2
6960034810
ref: 2
PISTON/CUP SET
6960034810
€ 36.50
3
6969234300
ref: 3
YOKE
6969234300
€ 11.00
4
6967031301
ref: 4
ROD,PUSH
€ 15.00
5
6969334300
ref: 5
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
6969145001
€ 6.50
7
5116270040
ref: 7
CIRCLIP
5116270040
€ 3.00
8
0151708255
ref: 8
BOLT
€ 2.50
9-1
6974034200
ref: 9-1
MODEL F/G
TANK ASSEMBLY,RESERVOIR
6974034200
€ 27.50
9-2
6974034201
ref: 9-2
MODEL H
TANK ASSEMBLY,RESERVOIR
€ 27.50
9-3
6974034250
ref: 9-3
E4
TANK ASSEMBLY,RESERVOIR
€ 27.50
10-1
5966918605
ref: 10-1
MODEL F/G
CAP
€ 16.50
10-2
5966920A00
ref: 10-2
MODEL H
CAP
€ 16.50
10-3
5966939110
ref: 10-3
CAP
€ 16.00
11
5966818441
ref: 11
PLATE,DIAPHRAGM
5966818441
€ 3.50
12
5966718441
ref: 12
DIAPHRAGM
5966718441
€ 8.50
13
0110706166
ref: 13
BOLT
€ 2.00
14
0832121067
ref: 14
WASHER,LOCK
0832121067
€ 2.50
15
0832221067
ref: 15
WASHER
0832221067
€ 2.00
16
6973143401
ref: 16
HOSE,RESERVOIR TANK
€ 13.00
17
0940016302
ref: 17
CLAMP
0940016302
€ 4.50
18
6948043403
ref: 18
HOSE,REAR BRAKE
€ 72.00
19
0916110009
ref: 19
WASHER(10X15X1.5)
0916110009
€ 2.00
20
0936010017
ref: 20
BOLT UNION
0936010017
€ 6.50
