Buy Suzuki GSX Parts Online


SEAT TAIL COVER (GSX550EFF/EFG)

GSX550E 1987 (H)

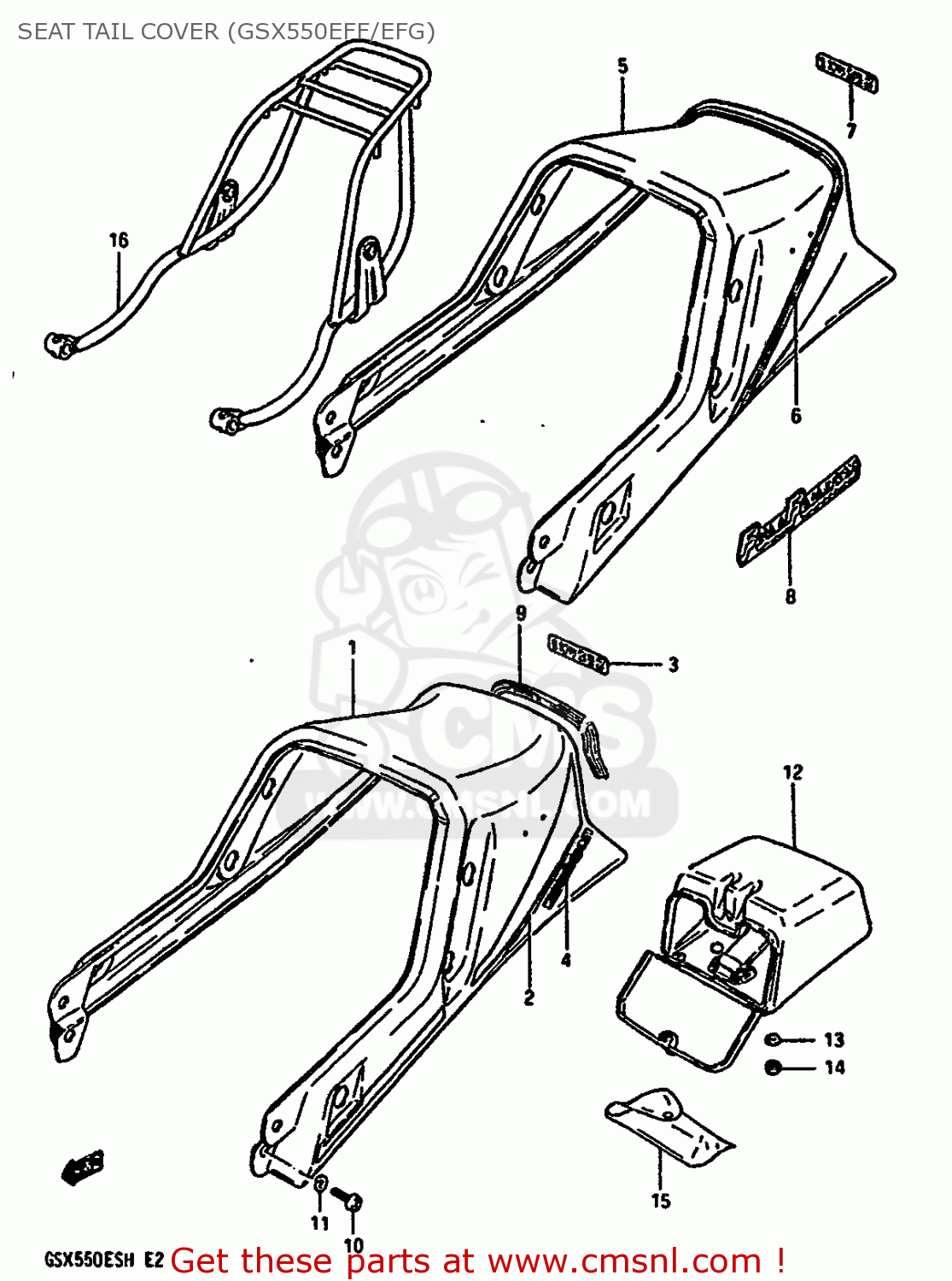

Seat tail cover (gsx550eff/efg) diagram GSX550E 1987 (H)

SEAT TAIL COVER (GSX550EFF/EFG) GSX550E 1987 (H)
SEAT TAIL COVER (GSX550EFF/EFG) GSX550E 1987 (H)
SEAT TAIL COVER (GSX550EFF/EFG) GSX550E 1987 (H)
prices are in EUR
ref
part #
description
quantity
1-1
45590434307JH
ref: 1-1
MODEL F
COVER,SEAT TAIL
€ 186.50
1-2
45590434307JJ
ref: 1-2
MODEL F
COVER,SEAT TAIL
€ 186.50
2
6816043490019
ref: 2
MODEL F
TAPE SET,TAIL COVER (BLACK)
€ 0.00
3
6816631300019
ref: 3
MODEL F
EMBLEM
6816631300019
€ 4.00
4
682350470087W
ref: 4
MODEL F
EMBLEM
682350470087W
€ 16.00
5-1
45510436607JK
ref: 5-1
MODEL G
COVER,SEAT TAIL
€ 0.00
5-2
45510436608BN
ref: 5-2
MODEL G
COVER,SEAT TAIL
€ 186.50
6-1
68760434107JK
ref: 6-1
MODEL G,FOR 7JK
TAPE SET,TAIL COVER
€ 0.00
6-2
68760434108BN
ref: 6-2
MODEL G,FOR 8BN
TAPE SET,TAIL COVER
€ 0.00
7-1
6816631300064
ref: 7-1
MODEL G,FOR 7JK
EMBLEM(WHITE)
6816631300064
€ 3.50
7-2
6816631300019
ref: 7-2
MODEL G,FOR 8BN
EMBLEM
6816631300019
€ 4.00
8-1
6823540A1060K
ref: 8-1
MODEL G,FOR 7JK
EMBLEM
€ 6.00
8-2
6823540A1069L
ref: 8-2
MODEL G,FOR 8BN
EMBLEM
€ 6.00
9
4556243401
ref: 9
BLIND,SEAT TAIL COVER
€ 5.50
10
0211206168
ref: 10
SCREW
0211206168
€ 2.50
11
0832121067
ref: 11
WASHER,LOCK
0832121067
€ 2.50
12
9499043400
ref: 12
BOX,SEAT TAIL
€ 30.50
13
0916906010
ref: 13
WASHER
0916906010
€ 3.00
14
0831931068
ref: 14
NUT
0831931068
€ 2.50
15
0980000269
ref: 15
TOOL ASSY
€ 53.00
16
4631043400
ref: 16
OPT
CARRIER, SPORTS
€ 75.50
