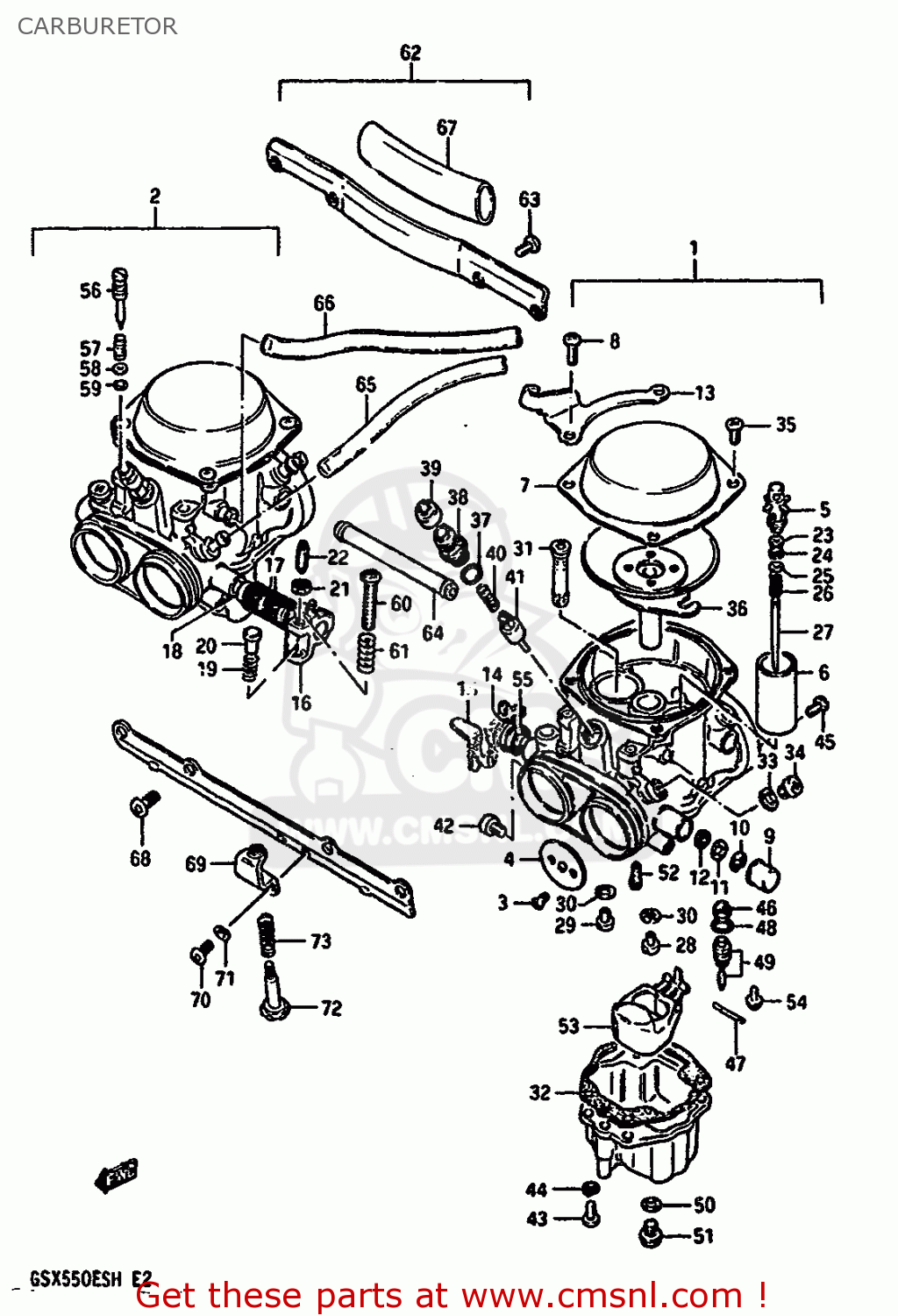

CARBURETOR

ref

part #

description

quantity

1-1

1320143580
ref: 1-1

CARBURETOR,LH

€ 0.00

1-2

1320143450
ref: 1-2
E18

CARBURETOR,LH

€ 328.00

1-3

1320143460
ref: 1-3
GSX550EUF/EUG/EUH E2

CARBURETOR,LH

€ 0.00

2-1

1320243580
ref: 2-1

CARBURETOR,RH

€ 0.00

2-2

1320243450
ref: 2-2
E18

CARBURETOR,RH

€ 0.00

2-3

1320243460
ref: 2-3
GSX550EUF/EUG/EUH E2

CARBURETOR,RH

€ 0.00

3

1360444080
ref: 3

SCREW

€ 3.50

4-1

1355143450
ref: 4-1

VALVE,THROTTLE

€ 0.00

4-2

1355143410
ref: 4-2
E18

VALVE,THROTTLE

€ 0.00

5

1351143410
ref: 5

HOLDER,GUIDE

€ 6.50

6-1

1355143500
ref: 6-1

VALVE,THROTTLE

€ 0.00

6-2

1355143400
ref: 6-2
E18

VALVE,THROTTLE

€ 0.00

7

1350243430
ref: 7

COVER,DIAPHRAGM

€ 0.00

8

0211205125
ref: 8
LH

SCREW

€ 1.50

9

1357845530
ref: 9

CAP,THROTTLE SHAFT

€ 5.50

10

1361744080
ref: 10

E RING

€ 3.50

11

1355747070
ref: 11

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

12

1365151010
ref: 12

SEAL

€ 4.00

13

1362143420
ref: 13
LH

BRACKET,THROTTLE CABLE

€ 5.50

14

1357343410
ref: 14
LH

SPRING,THROTTLE SHAFT

€ 6.50

15

1355043410
ref: 15
LH

SHAFT ASSEMBLY

€ 0.00

16

1355043400
ref: 16
RH

SHAFT ASSEMBLY

€ 0.00

17

1357343400
ref: 17
RH

SPRING

€ 9.50

18

1357443410
ref: 18
RH

RING

€ 0.00

19

1326844010
ref: 19
RH

SPRING,THROTTLE SCREW

€ 3.00

20

1357547070
ref: 20
RH

PIN,THROTTLE LEVER

€ 2.50

21

1360747070
ref: 21
RH

NUT

€ 4.00

22

1360547080
ref: 22
RH

SCREW

€ 7.00

23

1338747010
ref: 23

RING

€ 7.50

24

1341547070
ref: 24

CAP,LEVER

€ 4.50

25

1338244030
ref: 25

WASHER

€ 3.50

26

1338844030
ref: 26

SPRING

€ 6.00

27-1

1338343530
ref: 27-1

NEEDLE, JET (5C13-3)

€ 14.50

27-2

1338343400
ref: 27-2
E18

NEEDLE,JET(5C7-3)

€ 13.50

27-3

1338343530
ref: 27-3
GSX550EUF/EUG/EUH E2

NEEDLE, JET (5C13-3)

€ 14.50

28-1

0949190007
ref: 28-1
LH,RH

JET,MAIN(90)

€ 10.50

28-2

0949195005
ref: 28-2
LH,RH E18

JET,MAIN(95)

€ 8.50

28-3

0949192004
ref: 28-3
LH,RH GSX550EUF/EUG/

JET,MAIN(92.5)

€ 8.50

29-1

0949197003
ref: 29-1
ML,MR

JET,MAIN(97.5)

€ 8.50

29-2

0949120012
ref: 29-2
ML,MR E18

JET,MAIN(102.5)

€ 8.50

29-3

0949120017
ref: 29-3
ML,MR GSX550EUF/EUG/

JET,MAIN

€ 10.50

30

1333244080
ref: 30

WASHER,NEEDLE NOZZLE

€ 2.50

31-1

0949400464
ref: 31-1

JET, NEEDLE (P-4)

€ 26.50

31-2

0949400462
ref: 31-2
E18

JET,NEEDLE (P-2)

€ 0.00

31-3

0949400452
ref: 31-3
GSX550EUF/EUG/EUH E2

JET,NEEDLE

€ 16.00

32

1325143410
ref: 32

GASKET,FLOAT CHAMBER (MCA)

€ 10.50

33

1353143410
ref: 33

WASHER

€ 3.50

34

1360543410
ref: 34

SCREW

€ 0.00

35

0211205105
ref: 35
LH:2,RH:4

SCREW

€ 2.00

36

1350043410
ref: 36

DIAPHRAGM,CARBURETOR

€ 181.50

37

1327847090
ref: 37

O RING

€ 2.00

38

1341843410
ref: 38

HOLDER,GUIDE

€ 6.50

39

1368104010
ref: 39

CAP

€ 3.00

40

1341743410
ref: 40

SPRING

€ 3.50

41

1341143410
ref: 41

VALVE,STARTER

€ 23.50

42

1360573000
ref: 42
LH

SCREW

€ 10.50

43

0211204165
ref: 43

SCREW

€ 1.00

44

0832121045
ref: 44

LOCK WASHER

€ 2.00

45-1

0949227005
ref: 45-1

JET,PILOT AIR (135)

€ 0.00

45-2

0949230004
ref: 45-2
E18

JET,PILOT(150)

€ 7.50

45-3

0949229001
ref: 45-3
GSX550EUF/EUG/EUH E2

JET

€ 7.00

46

1337665010
ref: 46

FILTER

€ 6.50

47

1325420010
ref: 47

PIN,FLOAT

€ 3.00

48

1337444080
ref: 48

O-RING,NEEDLE VALVE

€ 6.00

49

1337043410
ref: 49

VALVE ASSEMBLY,NEEDLE

€ 70.50

50

1324644080
ref: 50

GASKET (NAS)

€ 3.50

51

1324743410
ref: 51

PLUG,DRAIN

€ 9.50

52-1

0949235010
ref: 52-1

JET,PILOT(37.5)

€ 10.50

52-2

0949240014
ref: 52-2
E18,GSX550EUF/EUG/EU

JET(40)

€ 8.50

53

1325043410
ref: 53

FLOAT

€ 28.00

54

1360243410
ref: 54

SCREW

€ 2.50

55

1357443400
ref: 55
LH

RING,THROTTLE SHAFT

€ 0.00

56-1

1327947080
ref: 56-1

SCREW,PILOT AIR

€ 11.50

56-2

1327947080
ref: 56-2
E18

SCREW,PILOT AIR

€ 11.50

56-3

1327947080
ref: 56-3
GSX550EUF/EUG/EUH E2

SCREW,PILOT AIR

€ 11.50

57

1326847070
ref: 57

SPRING

€ 5.00

58

1327744080
ref: 58

GASKET

€ 2.00

59

1327844080
ref: 59

O-RING

€ 4.00

60

1360515530
ref: 60
RH E18,GSX550EUF/EUG

SCREW

€ 0.00

61

1327193311
ref: 61
RH E18,GSX550EUF/EUG

SPRING

€ 4.50

62

1321043420
ref: 62

FLANGE ASSEMBLY,CARBURETOR

€ 70.50

63

0211205125
ref: 63

SCREW

€ 1.50

64

1368543410
ref: 64

PIPE,CARBURETOR

€ 25.50

65-1

1368335420
ref: 65-1

HOSE 4.5X8X600

€ 14.00

65-2

1368335420
ref: 65-2
GSX550EUF/EUG E22

HOSE 4.5X8X600

€ 14.00

66

1368343410
ref: 66

HOSE

€ 17.50

67-1

1368443440
ref: 67-1

HOSE(16X19X100)

€ 6.50

67-2

1368443440
ref: 67-2
E18

HOSE(16X19X100)

€ 6.50

68

0211206125
ref: 68

SCREW

€ 1.50

69

1362143430
ref: 69

BRACKET,SLOW ADJUST

€ 6.00

70

0211205088
ref: 70

SCREW

€ 2.00

71

0832121057
ref: 71

LOCK WASHER

€ 2.00

72

1326743420
ref: 72

ADJUSTER

€ 15.50

73

1326843410
ref: 73

SPRING

€ 6.50
