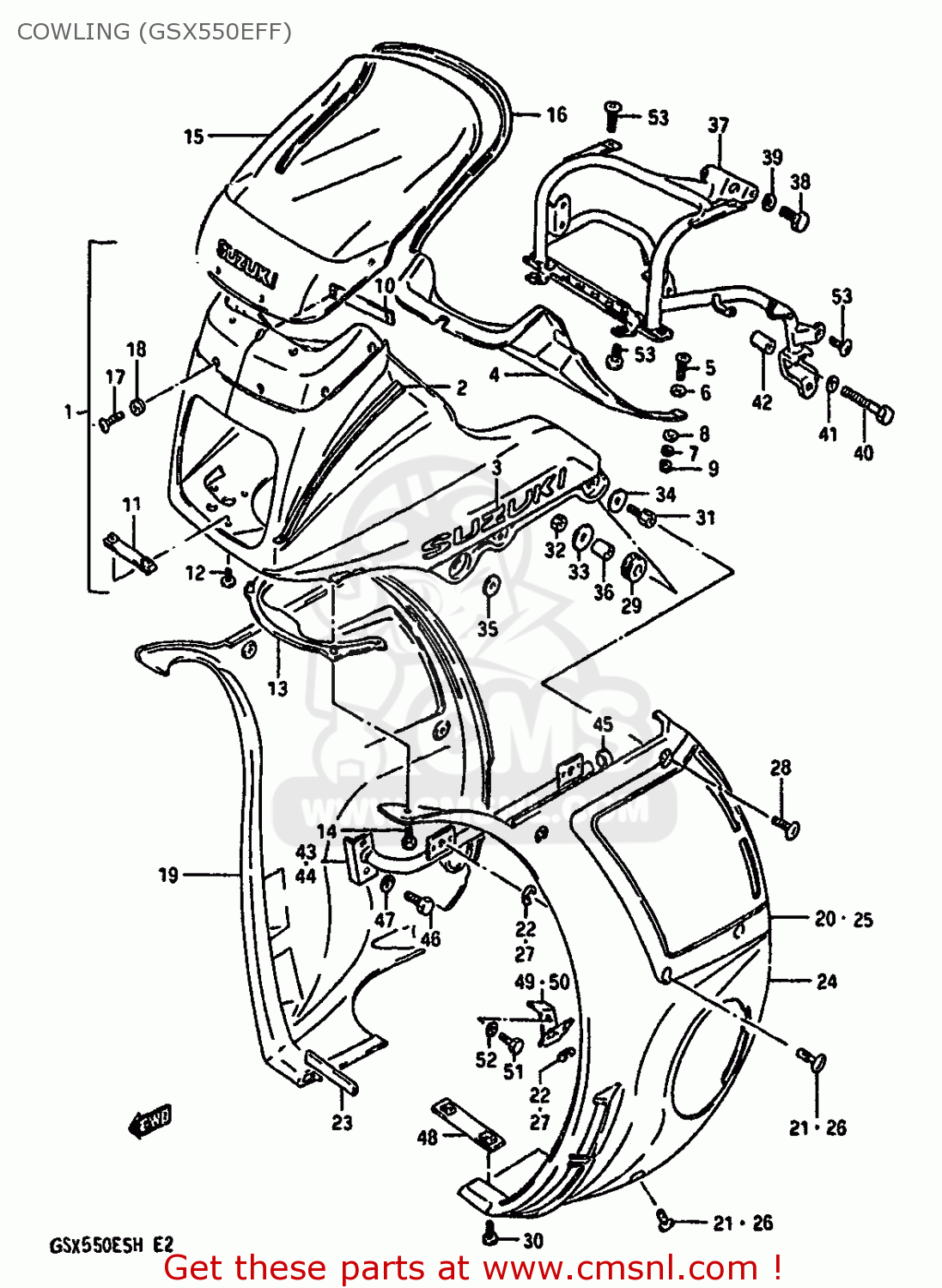

COWLING (GSX550EFF)

ref

part #

description

quantity

1-1

94700434007JH
ref: 1-1

COWLING ASSY (WHITE/BLUE)

€ 983.50

1-2

94700434007JJ
ref: 1-2

COWLING ASSY (WHITE/RED)

€ 909.50

2

6819043430019
ref: 2

TAPE SET

€ 0.00

3-1

681124340008K
ref: 3-1
FOR 7JH

EMBLEM

€ 7.50

3-2

681124340007G
ref: 3-2
FOR 7JJ

EMBLEM (ORANGE)

€ 9.50

4

9442243400
ref: 4

PANEL,COWLING,UPPER

€ 16.50

5

0214205165
ref: 5

SCREW

€ 2.50

6

0832221055
ref: 6

WASHER,5MM

€ 2.50

7

0832121055
ref: 7

WASHER,LOCK

€ 3.00

8

0832221055
ref: 8

WASHER,5MM

€ 2.50

9

0831012055
ref: 9

NUT ,5MM

€ 2.50

10

9441643400
ref: 10

BRACKET,COWLING,UPPER

€ 3.50

11

9442043400
ref: 11

BRACKET,COWLING,LOWER

€ 2.50

12

0214205128
ref: 12

SCREW

€ 1.50

13

9448043410
ref: 13

COVER,COWLING,LOWER

€ 19.00

14

0214205165
ref: 14

SCREW

€ 2.50

15-1

9461143421
ref: 15-1

WINDOW

€ 281.50

15-2

9461143431
ref: 15-2
E17

WINDOW,COWLING

€ 281.50

16-1

9463143400
ref: 16-1

MOLDING,LOWER

€ 18.00

16-2

9463143410
ref: 16-2
E17

MOULDING

€ 14.00

17

0214205165
ref: 17

SCREW

€ 2.50

18

0932005008
ref: 18

CUSHION

€ 5.00

19-1

94430434507JH
ref: 19-1
FOR 7JH

COVER,COWLING

€ 148.00

19-2

94430434507JJ
ref: 19-2
FOR 7JJ

COVER,RH (WHITE/RED)

€ 148.00

20-1

68680434407JF
ref: 20-1
FOR 7JH

TAPE SET

€ 29.50

20-2

68680434407JG
ref: 20-2
FOR 7JJ

TAPE SET

€ 0.00

21

9449143400
ref: 21

FASTENER,COWL SIDE COVER

€ 8.00

22

0833211075
ref: 22

E-RING

€ 2.00

23

9463143450
ref: 23

MOLDING,LOWER

€ 3.50

24-1

94440434507JH
ref: 24-1
FOR 7JH

COVER,LH (WHITE/BLUE)

€ 175.50

24-2

94440434507JJ
ref: 24-2
FOR 7JJ

COVER,LH (WHITE/RED)

€ 175.50

25-1

68690434407JF
ref: 25-1
FOR 7JH

TAPE SET

€ 33.50

25-2

68690434407JG
ref: 25-2
FOR 7JJ

TAPE SET

€ 0.00

26

9449143400
ref: 26

FASTENER,COWL SIDE COVER

€ 8.00

27

0833211075
ref: 27

E-RING

€ 2.00

28

9443943400
ref: 28

SCREW,COWLING SIDE COVER

€ 3.50

29

0932008018
ref: 29

CUSHION

€ 4.00

30

0214206127
ref: 30

SCREW 6X12

€ 1.50

31

9447543400
ref: 31

BOSS,COWLING BODY,SIDE

€ 8.50

32

0831011065
ref: 32

NUT

€ 2.00

33

0916006004
ref: 33

WASHER (6.5X24X1.6)

€ 1.50

34

0916006081
ref: 34

WASHER, QUTER, REAR

€ 2.00

35

0916006028
ref: 35

WASHER(6.5X18X1)

€ 1.50

36

0918006027
ref: 36

SPACER (6.3X9.1X6.7)

€ 3.00

37

9451043400
ref: 37

BRACE,COWLING

€ 112.50

38

0110708165
ref: 38

BOLT

€ 2.00

39

0832121084
ref: 39

WASHER,LOCK,8.

€ 2.50

40

0110708455
ref: 40

BOLT

€ 2.50

41

0832121084
ref: 41

WASHER,LOCK,8.

€ 2.50

42

0918008057
ref: 42

SPACER (8.2X12.5X23.5)

€ 2.00

43

9452043400
ref: 43

BRACE,COWLING SIDE,RIGHT

€ 33.50

44

9456043400
ref: 44

BRACE,COWLING SIDE,LEFT

€ 33.50

45

0932912004
ref: 45

CUSHION

€ 1.50

46

0110706125
ref: 46

BOLT

€ 2.00

47

0832121064
ref: 47

WASHER,LOCK

€ 2.00

48

9457043400
ref: 48

BRACE,COWLING,LOWER,FRONT

€ 3.50

49

9458043400
ref: 49

BRACKET,COWLING SIDE,RIGHT

€ 7.00

50

9459043400
ref: 50

BRACKET,COWLING SIDE,LEFT

€ 7.50

51

0110706125
ref: 51

BOLT

€ 2.00

52

0832121064
ref: 52

WASHER,LOCK

€ 2.00

53

0214206125
ref: 53

SCREW 6X12

€ 2.00
