HEADLAMP (GSX550ESF/EFF/ESG/EFG/ESH/EFH)

GSX550EU 1987 (H) GERMANY (E22)

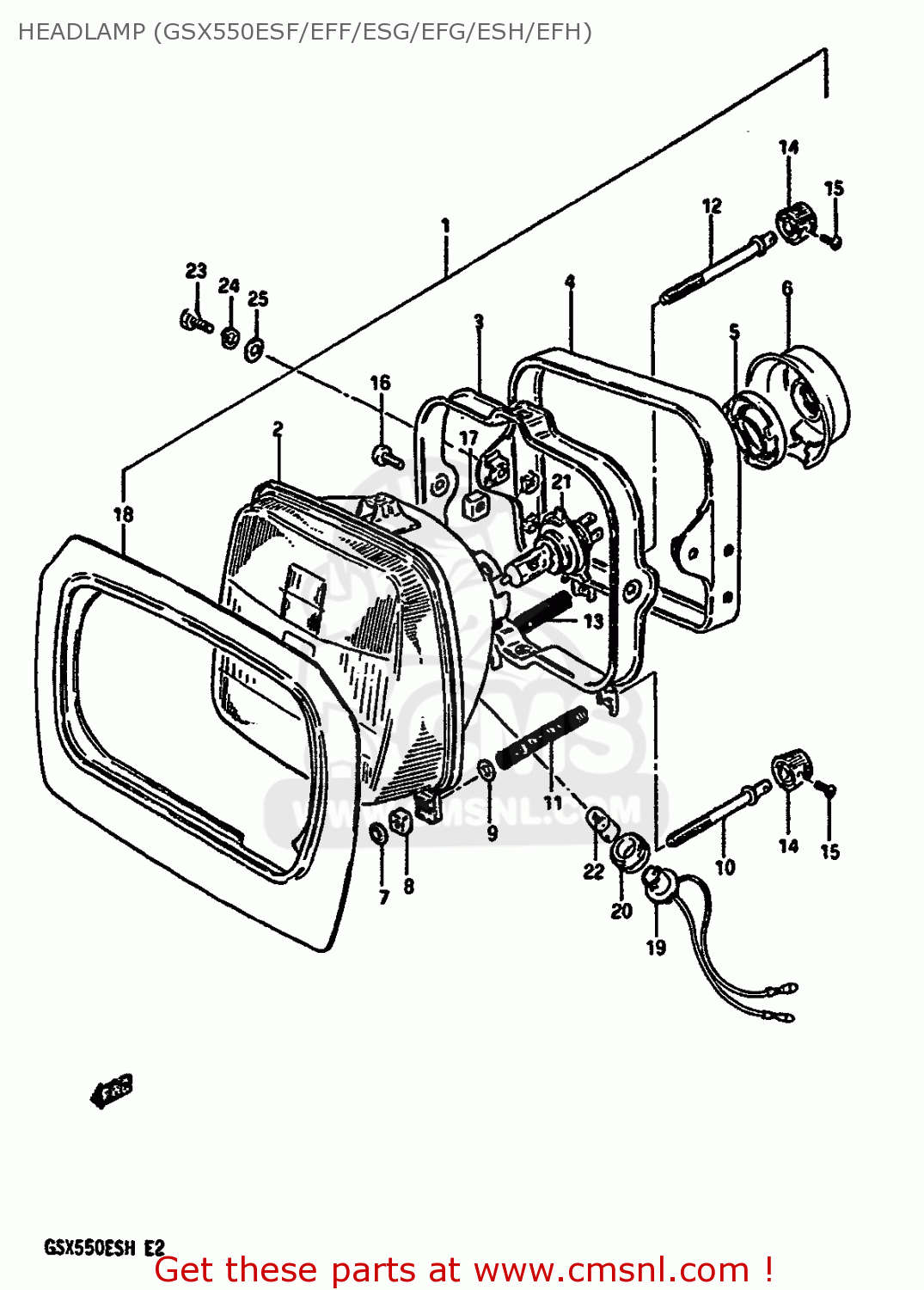

Headlamp (gsx550esf/eff/esg/efg/esh/efh) diagram GSX550EU 1987 (H) GERMANY (E22)

HEADLAMP (GSX550ESF/EFF/ESG/EFG/ESH/EFH) GSX550EU 1987 (H) GERMANY (E22)
HEADLAMP (GSX550ESF/EFF/ESG/EFG/ESH/EFH) GSX550EU 1987 (H) GERMANY (E22)
HEADLAMP (GSX550ESF/EFF/ESG/EFG/ESH/EFH) GSX550EU 1987 (H) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1-1
3510049500999
ref: 1-1
MODEL F/G E1,E6
HEADLAMP ASSY
€ 0.00
1-2
3510049520999
ref: 1-2
E2
HEADLAMP ASSY
€ 0.00
1-3
3510049550999
ref: 1-3
E4,E17,E18,E21,E22,E
HEADLAMP ASSY
3510049550999
€ 184.50
1-5
3510049530999
ref: 1-5
E24,MODEL H E6
LAMP ASSEMBLY,HEAD
€ 0.00
2-1
3512149500
ref: 2-1
MODEL F/G E1,E6
UNIT
€ 163.00
2-2
3512149520
ref: 2-2
E2
UNIT
3512149520
€ 150.00
2-3
3512149550
ref: 2-3
E4,E17,E18,E21,E22,E
LAMP UNIT
3512149550
€ 150.00
2-4
3512149530
ref: 2-4
E24,MODEL H E6
LAMP UNIT
€ 0.00
3
3513049500
ref: 3
RING,MOUNTING
3513049500
€ 30.00
4
3514149500
ref: 4
HOUSING,LAMP UNIT
€ 31.00
5
3513649200
ref: 5
HOLDER
3513649200
€ 8.50
6
3517349200
ref: 6
COVER,HEADLAMP SOCKET
3517349200
€ 12.50
7
3515249330
ref: 7
NUT,HEADLAMP ADJUSTER
€ 2.00
8
3515249500
ref: 8
NUT,HEADLAMP ADJUSTER
3515249500
€ 2.50
9
3515749320
ref: 9
WASHER
€ 2.00
10
3515149500
ref: 10
SCREW,HEADLAMP ADJUST
€ 16.50
11
3515449500
ref: 11
SPRING
3515449500
€ 4.50
12
3515149320
ref: 12
SCREW,ADJUSTING
3515149320
€ 16.50
13
3515449320
ref: 13
SPRING
3515449320
€ 3.00
14
3516149320
ref: 14
KNOB,ADJUSTER
3516149320
€ 6.00
15
0211203108
ref: 15
SCREW
0211203108
€ 1.50
16
0211205128
ref: 16
SCREW
€ 2.50
17
3513545900
ref: 17
NUT
3513545900
€ 2.50
18
3512949500
ref: 18
SHADE
3512949500
€ 21.00
19
3611849320
ref: 19
SOCKET
3611849320
€ 12.00
20
3611622630
ref: 20
JOINT,RUBBER
3611622630
€ 5.00
21-1
0947112060
ref: 21-1
BULB(12V60/55W,H4)
0947112060
€ 8.00
21-2
0947112061
ref: 21-2
E4 EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
22-1
0947112001
ref: 22-1
MODEL F/G E1,E6
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
22-2
0947112063
ref: 22-2
E2,E4,E17,E18,E21,E2
BULB(12V4W)
0947112063
€ 6.00
23
0110706126
ref: 23
BOLT
€ 2.00
24
0832121066
ref: 24
WASHER,LOCK
0832121066
€ 2.00
25
0832221066
ref: 25
WASHER, LOWER
0832221066
€ 2.00
