Buy Suzuki GSX Parts Online


TURN SIGNAL LAMP (E18,E21,E22,E25,E26)

GSX550EU 1987 (H) GERMANY (E22)

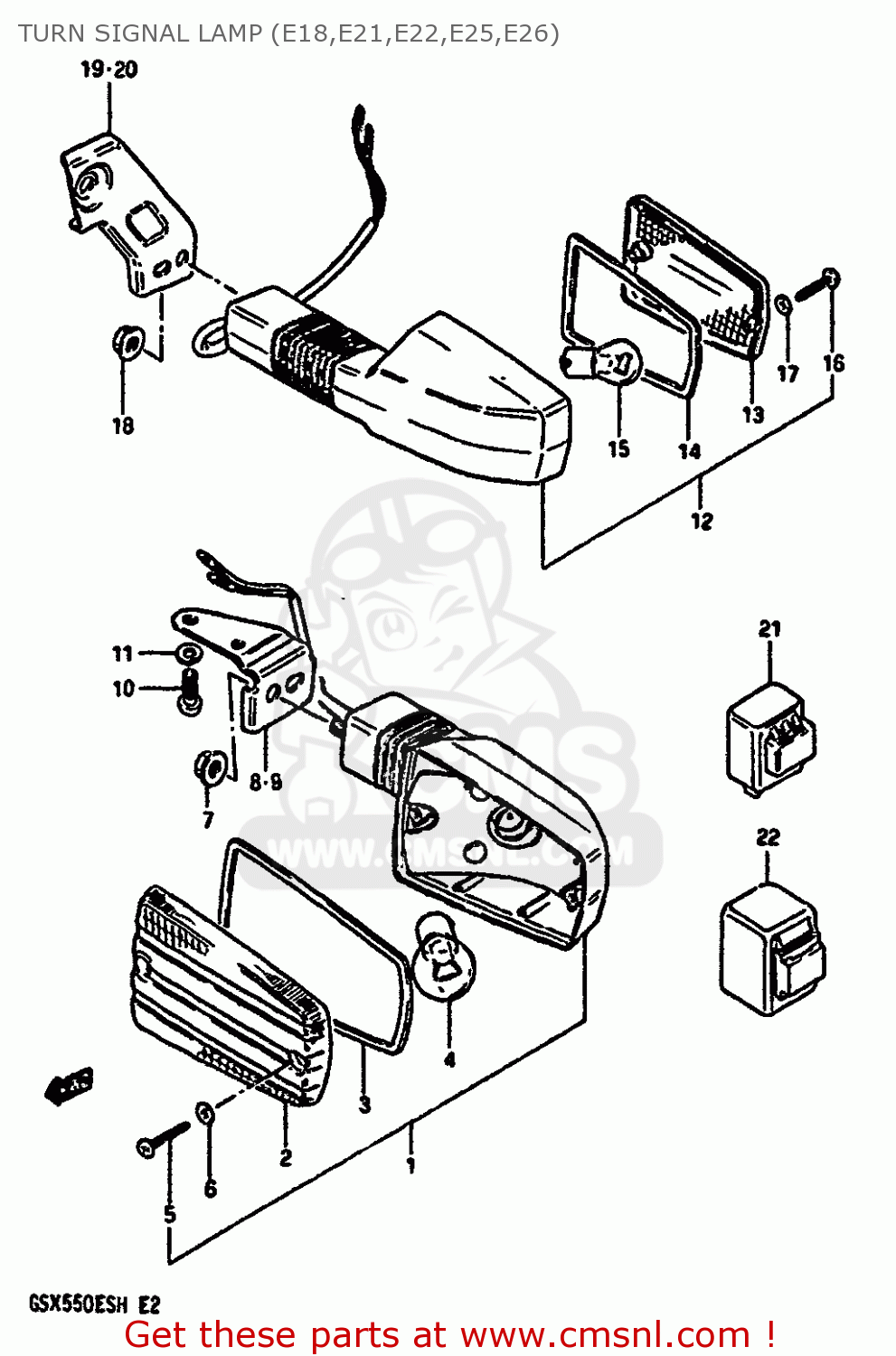

Turn signal lamp (e18,e21,e22,e25,e26) diagram GSX550EU 1987 (H) GERMANY (E22)

TURN SIGNAL LAMP (E18,E21,E22,E25,E26) GSX550EU 1987 (H) GERMANY (E22)
TURN SIGNAL LAMP (E18,E21,E22,E25,E26) GSX550EU 1987 (H) GERMANY (E22)
TURN SIGNAL LAMP (E18,E21,E22,E25,E26) GSX550EU 1987 (H) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1-1
3560143481
ref: 1-1
GSX550EF/EUF/EG/EUG/
LAMP ASSY, FRONT TURN SIGNAL
3560143481
€ 54.00
1-2
3560143421
ref: 1-2
GSX550ESF/EFF/ESG/EF
LAMP ASSY, FRONT TURN SIGNAL
3560143421
€ 98.50
2
3561243410
ref: 2
LENS
3561243410
€ 11.00
3
3561343410
ref: 3
GASKET (NAS)
3561343410
€ 3.50
4
0947112045
ref: 4
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0831626085
ref: 7
NUT M8
0831626085
€ 1.50
8
3567143400
ref: 8
GSX550ESF/EFF/ESG/EF
BRACKET,FRONT TURN SIGNAL
3567143400
€ 5.00
9
3568143400
ref: 9
GSX550ESF/EFF/ESG/EF
BRACKET,FRONT TURN SIGNAL
3568143400
€ 5.50
10
0211206167
ref: 10
SCREW
0211206167
€ 2.50
11
0832121067
ref: 11
WASHER,LOCK
0832121067
€ 2.50
12-1
3560343421
ref: 12-1
E18,E21,E25,E26
LAMP ASSY, REAR TURN SIGNAL
3560343421
€ 75.00
12-2
3560343481
ref: 12-2
E22
LAMP ASSY, REAR TURN SIGNAL
3560343481
€ 79.00
13
3565243420
ref: 13
LENS,TURN SIGN
3565243420
€ 11.50
14
3561343410
ref: 14
GASKET (NAS)
3561343410
€ 3.50
15
0947112045
ref: 15
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
16
0321104208
ref: 16
SCREW
0321104208
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
3562743010
€ 2.00
18
0831626088
ref: 18
NUT
0831626088
€ 3.00
19
3562143400
ref: 19
BRACKET,REAR TURN SIGNAL
€ 7.50
20
3564143400
ref: 20
BRACKET,REAR TURN SIGNAL
€ 7.50
21
3861031310
ref: 21
E18,E21,E25,E26
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
22
3861045091
ref: 22
E22
RELAY ASSY,TUR
€ 67.50
