COWLING (GSX550ESH)
GSX550EU 1987 (H) GERMANY (E22)

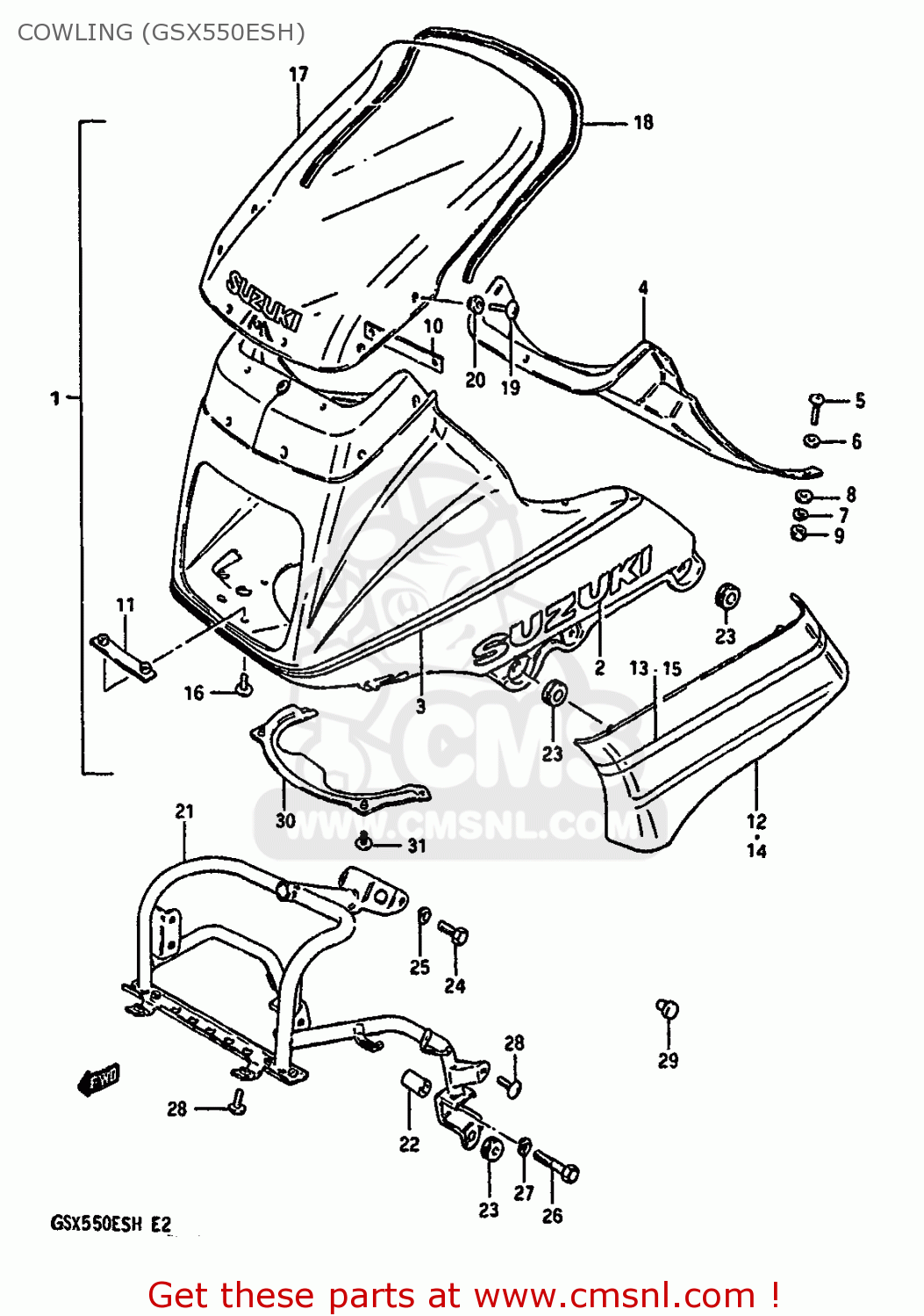

Cowling (gsx550esh) diagram GSX550EU 1987 (H) GERMANY (E22)
COWLING (GSX550ESH) GSX550EU 1987 (H) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
94700434907JH
ref: 1-1
COWLING ASSY (WHITE/BLUE)
€ 960.50
1-2
94700434908ZP
ref: 1-2
COWLING ASSY (WHITE/RED)
€ 960.50
1-3
94700436007JH
ref: 1-3
E17
COWLING ASSY (WHITE/BLUE)
€ 0.00
1-4
94700436008ZP
ref: 1-4
E17
COWLING ASSY (WHITE/RED)
€ 960.50
2
6811109300064
ref: 2
EMBLEM,FUEL TA
€ 11.50
3-1
68190434607JF
ref: 3-1
FOR 7JH
TAPE SET
€ 0.00
3-2
68190434609AP
ref: 3-2
FOR 8ZP
TAPE SET
€ 0.00
4
9442243400
ref: 4
PANEL,COWLING,UPPER
€ 16.50
5
0214205165
ref: 5
SCREW
€ 2.50
6
0832221055
ref: 6
WASHER,5MM
€ 2.50
7
0832121055
ref: 7
WASHER,LOCK
€ 3.00
8
0832221055
ref: 8
WASHER,5MM
€ 2.50
9
0831012055
ref: 9
NUT ,5MM
€ 2.50
10
9441643400
ref: 10
BRACKET,COWLING,UPPER
€ 3.50
11
9442043400
ref: 11
BRACKET,COWLING,LOWER
€ 2.50
12-1
94450434307JH
ref: 12-1
FOR 7JH
COVER,RH (WHITE/BLUE)
€ 63.50
12-2
94450434308ZP
ref: 12-2
FOR 8ZP
COVER,RH (WHITE/RED)
€ 63.50
13-1
68680434707JF
ref: 13-1
FOR 7JH
TAPE SET
€ 0.00
13-2
68680434709AP
ref: 13-2
FOR 8ZP
TAPE SET
€ 0.00
14-1
94460434307JH
ref: 14-1
FOR 7JH
COVER,LH (WHITE/BLUE)
€ 960.50
14-2
94460434308ZP
ref: 14-2
FOR 8ZP
COVER,LH (WHITE/RED)
€ 25.00
15-1
68690434707JF
ref: 15-1
FOR 7JH
TAPE SET
€ 0.00
15-2
68690434709AP
ref: 15-2
FOR 8ZP
TAPE SET
€ 0.00
16
0214205127
ref: 16
SCREW
€ 1.50
17-1
9461143421
ref: 17-1
WINDOW
€ 281.50
17-2
9461143431
ref: 17-2
E17
WINDOW,COWLING
€ 281.50
18-1
9463144110
ref: 18-1
L:1920 700
MOLD,COWLING
€ 18.00
18-2
9463143410
ref: 18-2
E17
MOULDING
€ 14.00
19
0214205164
ref: 19
SCREW
€ 2.50
20
0932005008
ref: 20
CUSHION
€ 5.00
21
9451043400
ref: 21
BRACE,COWLING
€ 112.50
22
0918008057
ref: 22
SPACER (8.2X12.5X23.5)
€ 2.00
23
0932008018
ref: 23
CUSHION
€ 4.00
24
0110708165
ref: 24
BOLT
€ 2.00
25
0832121084
ref: 25
WASHER,LOCK,8.
€ 2.50
26
0110708455
ref: 26
BOLT
€ 2.50
27
0832121084
ref: 27
WASHER,LOCK,8.
€ 2.50
28
0214206125
ref: 28
SCREW 6X12
€ 2.00
29-1
0925006007
ref: 29-1
PLUG
€ 2.00
29-2
0925005006
ref: 29-2
PLUG
€ 2.50
30
9448043410
ref: 30
COVER,COWLING,LOWER
€ 19.00
31
0214205164
ref: 31
SCREW
€ 2.50
