CRANKCASE COVER

GSX550EU 1987 (H) GERMANY (E22)

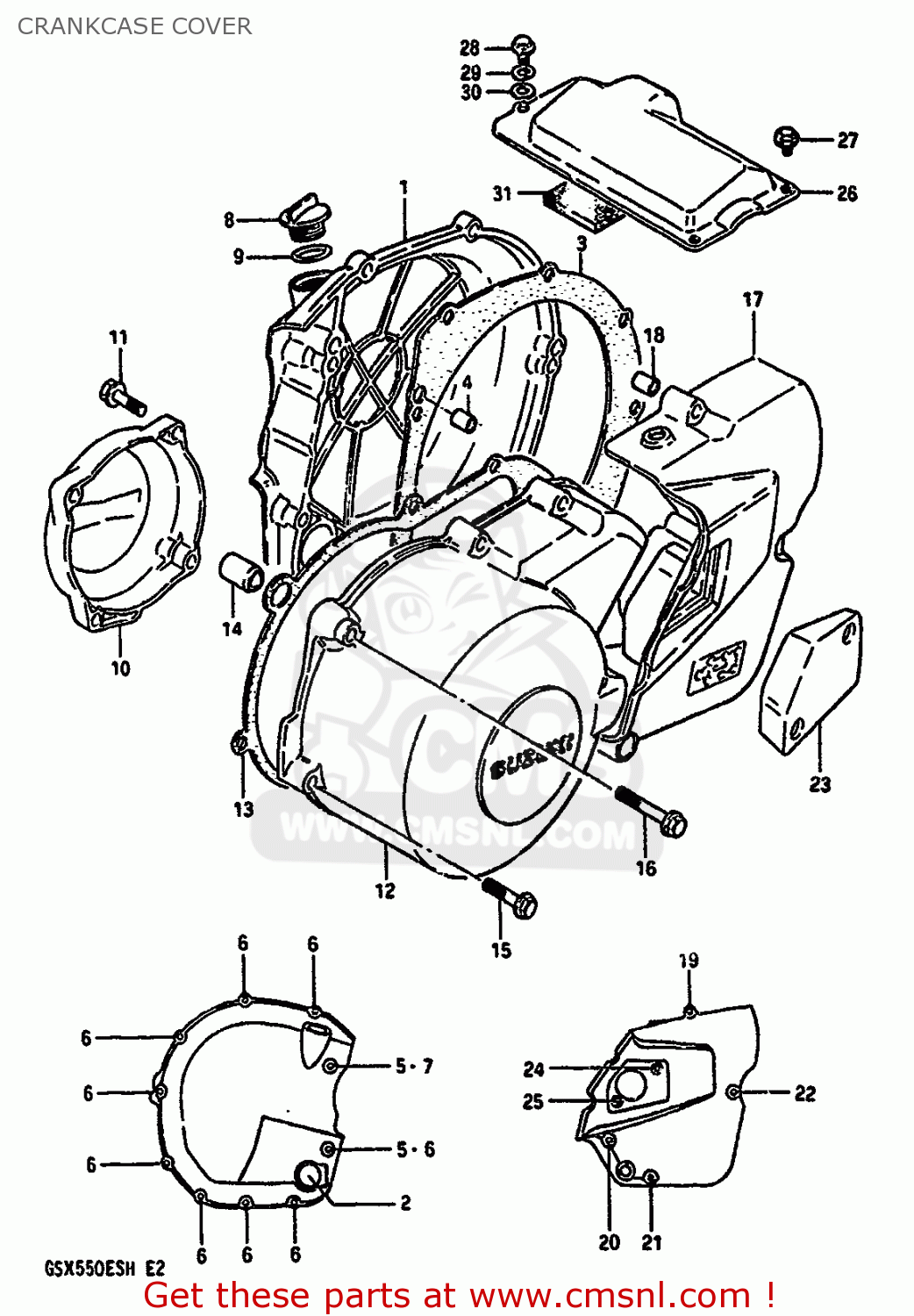

Crankcase cover diagram GSX550EU 1987 (H) GERMANY (E22)

CRANKCASE COVER GSX550EU 1987 (H) GERMANY (E22)

CRANKCASE COVER GSX550EU 1987 (H) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

1134043401
ref: 1

COVER,CLUTCH

€ 176.00

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148243401
ref: 3

GASKET,CLUTCH COVER (MCA)

€ 16.50

4

0421109129
ref: 4

PIN

€ 2.00

5

0916806023
ref: 5
FROM 09168-06015

GASKET(5.8X13X1.2) (NAS)

€ 2.00

6

0154706254
ref: 6

BOLT 6X25

€ 2.50

7

0154706354
ref: 7

BOLT 6X35

€ 3.00

8

0925920008
ref: 8

PLUG

€ 6.50

9

0928017003
ref: 9

O RING(D:3.1,ID:16.8)

€ 2.00

10

1138143400
ref: 10

COVER,CONTACT BREAKER

€ 56.50

11

0154706254
ref: 11

BOLT 6X25

€ 2.50

12

1135143400
ref: 12

COVER,MAGNETO

€ 173.00

13

1148343400
ref: 13

GASKET,MAGNETO COVER (MCA)

€ 15.50

14

0920611005
ref: 14

PIN (11X20)(SUS)

€ 6.50

15

0154706304
ref: 15

BOLT 6X30

€ 2.50

16

0154706454
ref: 16

BOLT

€ 3.00

17

1136043400
ref: 17

COVER,ENGINE SPROCKET

€ 79.00

18

0421109129
ref: 18

PIN

€ 2.00

19

0154706404
ref: 19

BOLT 6X40

€ 3.00

20

0154706555
ref: 20

BOLT (6X55)

€ 3.00

21

0154706505
ref: 21

BOLT 6X50

€ 3.50

22

0154706805
ref: 22

BOLT 6X80

€ 3.50

23

1138743400
ref: 23

CAP,CLUTCH RELEASE ADJUST

€ 26.00

24

0213205124
ref: 24

SCREW

€ 2.00

25

0213205205
ref: 25

SCREW

€ 2.00

26

1138243401
ref: 26

COVER,STARTER MOTOR

€ 20.00

27

0154705084
ref: 27

BOLT

€ 2.50

28

0154705125
ref: 28

BOLT

€ 2.00

29

0832121055
ref: 29

WASHER,LOCK

€ 3.00

30

0916005031
ref: 30

WASHER

€ 1.50

31

1136234200
ref: 31

DAMPER,STARTER MOTOR CLUTCH

€ 5.50
