COWLING BODY (MODEL T)

GSX600F KATANA 1990 (L) USA (E03)

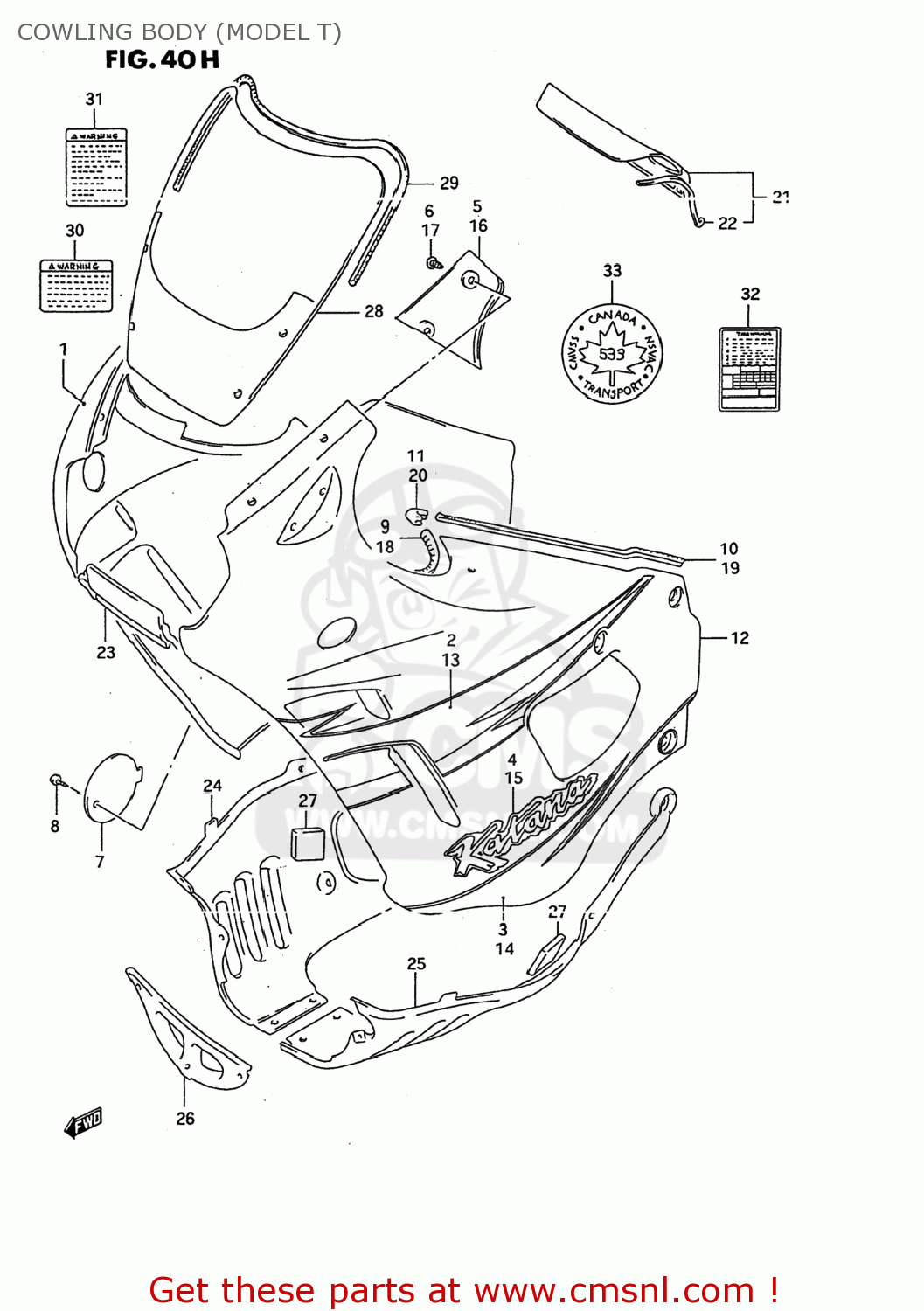

Cowling body (model t) diagram GSX600F KATANA 1990 (L) USA (E03)

COWLING BODY (MODEL T) GSX600F KATANA 1990 (L) USA (E03)
COWLING BODY (MODEL T) GSX600F KATANA 1990 (L) USA (E03)
COWLING BODY (MODEL T) GSX600F KATANA 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9440143CJ01ZV
ref: 1-1
94401-43CJ1-1ZV
COVER ASSEMBLY,COWLING,RIGHT
€ 2.00
1-2
9440143CJ033J
ref: 1-2
94401-43CJ1-33J
COVER ASSEMBLY,COWLING,RIGHT
€ 2.00
2-1
6868521C10Z53
ref: 2-1
TAPE,BODY COWL SIDE UPR,R
€ 54.50
2-2
6868521C10Z51
ref: 2-2
TAPE,BODY COWL SIDE UPR,R
€ 54.50
3-1
6868621C20Z54
ref: 3-1
TAPE,BODY COWL SIDE LWR,R
6868621C20Z54
€ 50.00
3-2
6868621C20Z52
ref: 3-2
TAPE,BODY COWLING SIDE,LOWER
6868621C20Z52
€ 57.00
4
6868121C20F2U
ref: 4
EMBLEM,COWLING SIDE
€ 0.00
5-1
9443319C011ZV
ref: 5-1
94433-19C01
COVER,METER SIDE,RIGHT
€ 22.00
5-2
9443319C0133J
ref: 5-2
COVER,COWLING METER SIDE,R
9443319C0133J
€ 21.50
6
0354104103
ref: 6
03541-0410A
SCREW
0354104103
€ 1.50
7-1
9443519C011ZV
ref: 7-1
LID,OIL
€ 21.50
7-2
9443519C0133J
ref: 7-2
LID,OIL
9443519C0133J
€ 20.50
8
0913906030
ref: 8
SCREW(6X16)
0913906030
€ 3.50
9
9463149310
ref: 9
MOLD,COWLING
9463149310
€ 14.00
10
9463519C00
ref: 10
MOLDING
9463519C00
€ 6.00
11
9443819C00
ref: 11
JOINT,MOLDING END
9443819C00
€ 9.50
12-1
9440243CJ01ZV
ref: 12-1
94402-43CJ1-1ZV
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
12-2
9440243CJ033J
ref: 12-2
94402-43CJ1-33J
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
13-1
6869521C10Z53
ref: 13-1
TAPE,BODY COWLING SIDE,UPPER
€ 64.50
13-2
6869521C10Z51
ref: 13-2
TAPE,BODY COWLING SIDE,UPPER
€ 87.00
14-1
6869621C20Z54
ref: 14-1
TAPE,BODY COWL SIDE LWR,L
6869621C20Z54
€ 50.00
14-2
6869621C20Z52
ref: 14-2
TAPE,BODY COWL SIDE LWR,L
6869621C20Z52
€ 50.00
15
6868121C20F2U
ref: 15
EMBLEM,COWLING SIDE
€ 0.00
16-1
9444319C011ZV
ref: 16-1
COVER,METER SIDE,L(GREEN)
€ 19.00
16-2
9444319C0133J
ref: 16-2
COVER,COWLING METER SIDE,L
9444319C0133J
€ 25.50
17
0354104103
ref: 17
03541-0410A
SCREW
0354104103
€ 1.50
18
9463149310
ref: 18
MOLD,COWLING
9463149310
€ 14.00
19
9463519C00
ref: 19
MOLDING
9463519C00
€ 6.00
20
9443819C00
ref: 20
JOINT,MOLDING END
9443819C00
€ 9.50
21
9442019C02
ref: 21
COVER,METER
9442019C02
€ 39.00
22
9463519C10
ref: 22
94635-19C00
MOLDING
9463519C10
€ 6.00
23-1
9442119C011ZV
ref: 23-1
PANEL,COWLING CTR
€ 22.00
23-2
9442119C0133J
ref: 23-2
PANEL,COWLING CTR
9442119C0133J
€ 27.00
24
9447119C001TU
ref: 24
COVER,COWLING,UNDER,RIGHT
€ 141.00
25
9448119C001TU
ref: 25
COVER,COWLING,UNDER,LEFT
€ 159.50
26
9447519C01
ref: 26
COVER,COWLING UNDER FR
9447519C01
€ 23.50
27
9447548B10
ref: 27
94915-44E00
CUSHION,UNDER COWLING
9447548B10
€ 6.50
28
9461019C60
ref: 28
WINDOW,COWLING
€ 185.00
29
9463118D01
ref: 29
MOLDING,WINDSCREEN
9463118D01
€ 12.50
30
6831940C10
ref: 30
68319-33E11
LABEL,GENERAL WARNING
6831940C10
€ 4.50
31-1
6861248B00
ref: 31-1
68922-14F00
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
31-2
6861248B10
ref: 31-2
68922-14F30
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
32
6833219C11
ref: 32
68332-19C12
LABEL (TIRE AIR PRESSURE)
€ 6.00
33
6831826601
ref: 33
PLATE
€ 0.00
