CYLINDER HEAD
GSX600F KATANA 1990 (L) USA (E03)

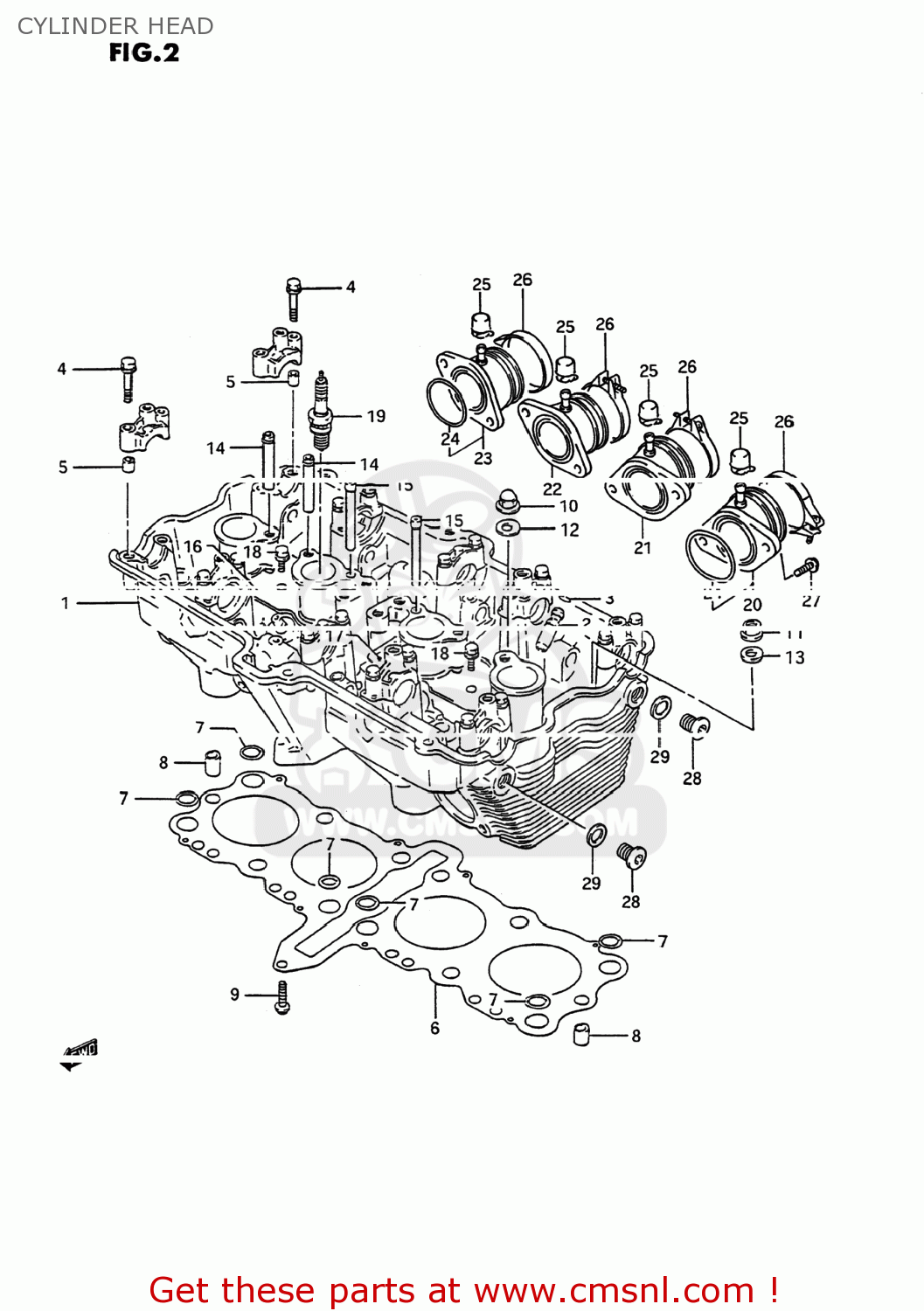

Cylinder head diagram GSX600F KATANA 1990 (L) USA (E03)
CYLINDER HEAD GSX600F KATANA 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110019C01
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 1,261.50
1-2
1110043C00
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 1,354.00
1-3
1110019E00
ref: 1-3
HEAD ASSEMBLY,CYLINDER
€ 1,352.00
1-4
1110019E20
ref: 1-4
HEAD ASSEMBLY,CYLINDER
€ 1,356.50
2-1
1111527A70
ref: 2-1
11116-06B70
GUIDE,VALVE
€ 43.00
2-2
1111618D70
ref: 2-2
GUIDE,VALVE
€ 19.00
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6-1
1114119C01
ref: 6-1
11141-19C03
GASKET,CYLINDER HEAD (NAS)
€ 63.00
6-2
1114119C02
ref: 6-2
11141-19C03
GASKET,CYLINDER HEAD (NAS)
€ 63.00
6-3
1114119C03
ref: 6-3
GASKET,CYLINDER HEAD (NAS)
€ 63.00
7
0928012013
ref: 7
O RING(D:2.6,ID:12.1)
€ 7.50
8
0421111189
ref: 8
PIN
€ 2.00
9-1
0151706305
ref: 9-1
01550-0630A
BOLT 6X30
€ 2.50
9-2
0155006303
ref: 9-2
01550-0630A
BOLT
€ 2.50
10
0915910054
ref: 10
NUT
€ 7.50
11-1
0831616103
ref: 11-1
08316-1010B
NUT
€ 2.00
11-2
0831610103
ref: 11-2
08316-1010B
NUT
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
€ 2.00
13
0916010060
ref: 13
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
€ 4.00
18-1
0151706128
ref: 18-1
01550-06127
BOLT
€ 2.50
18-2
0155006123
ref: 18-2
01550-0612A
BOLT
€ 2.50
19-1
0948200221
ref: 19-1
PLUG,SPARK(DR8ES)
€ 5.50
19-2
0948200410
ref: 19-2
PLUG,SPARK(CR9EK)
€ 10.50
19-3
0948200411
ref: 19-3
09482-00459
PLUG,SPARK(U27ETR)
€ 8.50
19-4
0948200412
ref: 19-4
PLUG,SPARK(CR8EK)
€ 11.00
19-5
0948200413
ref: 19-5
PLUG,SPARK(U24ETR)
€ 11.00
19-6
0948200462
ref: 19-6
PLUG,SPARK(CR10EK)
€ 10.50
19-7
0948200463
ref: 19-7
PLUG,SPARK(U31ETR)
€ 10.50
20-1
1310119C00
ref: 20-1
PIPE,INTAKE NO.1
€ 39.50
20-1
1310119C00
ref: 20-1
PIPE,INTAKE NO.1
€ 39.50
20-2
1310119C10
ref: 20-2
13101-19C12
PIPE ASSEMBLY,INTAKE
€ 39.50
20-2
1310119C10
ref: 20-2
13101-19C12
PIPE ASSEMBLY,INTAKE
€ 39.50
20-3
1310119C12
ref: 20-3
PIPE ASSY,INTAKE NO.1
€ 39.50
21-1
1310219C00
ref: 21-1
PIPE,INTAKE NO.2
€ 37.50
21-1
1310219C00
ref: 21-1
PIPE,INTAKE NO.2
€ 37.50
21-2
1310219C10
ref: 21-2
13102-19C12
PIPE ASSEMBLY,INTAKE
€ 37.50
21-2
1310219C10
ref: 21-2
13102-19C12
PIPE ASSEMBLY,INTAKE
€ 37.50
21-3
1310219C12
ref: 21-3
PIPE ASSY,INTAKE NO.2
€ 37.50
22-1
1310319C00
ref: 22-1
PIPE,INTAKE NO.3
€ 37.50
22-1
1310319C00
ref: 22-1
PIPE,INTAKE NO.3
€ 37.50
22-2
1310319C10
ref: 22-2
13103-19C12
PIPE ASSEMBLY,INTAKE
€ 37.50
22-2
1310319C10
ref: 22-2
13103-19C12
PIPE ASSEMBLY,INTAKE
€ 37.50
22-3
1310319C12
ref: 22-3
PIPE ASSY,INTAKE NO.3
€ 37.50
23-1
1310419C00
ref: 23-1
PIPE,INTAKE NO.4
€ 37.00
23-1
1310419C00
ref: 23-1
PIPE,INTAKE NO.4
€ 37.00
23-2
1310419C10
ref: 23-2
13104-19C12
PIPE ASSEMBLY,INTAKE
€ 37.00
23-2
1310419C10
ref: 23-2
13104-19C12
PIPE ASSEMBLY,INTAKE
€ 37.00
23-3
1310419C12
ref: 23-3
PIPE ASSY,INTAKE NO.4
€ 37.00
24
0928040010
ref: 24
O RING(D:2.4,ID:39.7)
€ 3.50
25
1315019C00
ref: 25
CAP
€ 5.50
26-1
0940250208
ref: 26-1
CLAMP
€ 5.00
26-2
0940252208
ref: 26-2
CLAMP
€ 5.50
27-1
0215206165
ref: 27-1
02112-0616A
SCREW
€ 2.00
27-2
0211216163
ref: 27-2
02112-1616A
SCREW
€ 2.00
28-1
0924814004
ref: 28-1
09248-14010
PLUG
€ 5.00
28-2
0924814010
ref: 28-2
PLUG
€ 5.00
29
0916814002
ref: 29
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
