COWLING (MODEL J)

GSX600F KATANA 1990 (L) USA (E03)

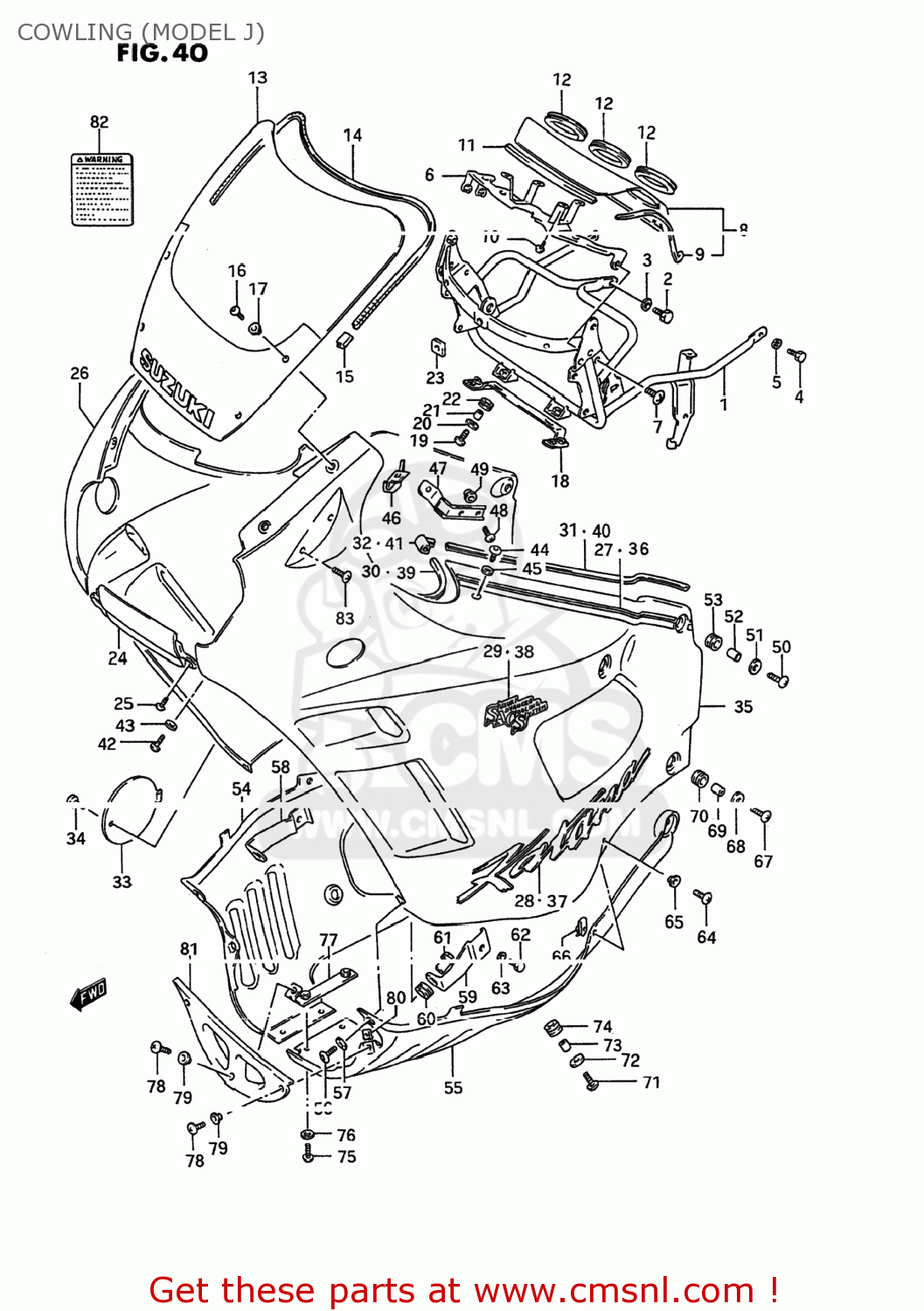

Cowling (model j) diagram GSX600F KATANA 1990 (L) USA (E03)

COWLING (MODEL J) GSX600F KATANA 1990 (L) USA (E03)
COWLING (MODEL J) GSX600F KATANA 1990 (L) USA (E03)
COWLING (MODEL J) GSX600F KATANA 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
9451019C00
ref: 1
94510-20C20
BRACE,COWLING
9451019C00
€ 128.50
2
0110708205
ref: 2
01500-0820A
BOLT
€ 2.00
3
0832121084
ref: 3
08321-0108A
WASHER,LOCK,8.
0832121084
€ 2.50
4
0110706125
ref: 4
01500-0612A
BOLT
€ 2.00
5
0832121064
ref: 5
08321-0106A
WASHER,LOCK
0832121064
€ 2.00
6
9452019C00
ref: 6
PLATE,METER FITING
9452019C00
€ 31.50
7
0214206125
ref: 7
02142-0612A
SCREW 6X12
0214206125
€ 2.00
8
9442019C00
ref: 8
94420-19C02
COVER,METER
€ 39.00
9
9463519C10
ref: 9
94635-19C00
MOLDING
9463519C10
€ 6.00
10
0354105085
ref: 10
03541-0508A
SCREW 5X8
€ 2.00
11
9452719C00
ref: 11
MOLDING,METER COVER
9452719C00
€ 3.00
12
9442619C00
ref: 12
CUSHION,METER COVER
9442619C00
€ 6.00
13
9461019C00
ref: 13
94610-19C10
WINDOW,COWLING
€ 283.50
14
9463119C00
ref: 14
94631-49300
MOLDING
9463119C00
€ 15.00
15
9463719C00
ref: 15
CAP,MOLDING END
9463719C00
€ 4.50
16
0913905022
ref: 16
09139-05042
SCREW
0913905022
€ 2.50
17
0916105010
ref: 17
WASHER(5.2X11X1)
0916105010
€ 2.00
18
9446019C00
ref: 18
PLATE,COWL CTR PANEL
9446019C00
€ 12.00
19
0214206205
ref: 19
02142-0620A
SCREW, CENTER
0214206205
€ 2.00
20
0916006039
ref: 20
09160-06109
WASHER (6.5X18X1.6)
0916006039
€ 2.00
21
0918006167
ref: 21
09180-06286
SPACER (6,8X10X9.4)
0918006167
€ 2.50
22
0932010015
ref: 22
CUSHION
0932010015
€ 2.50
23
9463819C00
ref: 23
63191-25C00
CUSHION,SCREEN
€ 2.50
24
9442119C0022R
ref: 24
94421-19C01-22R
PANEL,COWLING,CENTER
€ 27.00
25
0214205127
ref: 25
SCREW
0214205127
€ 1.50
26-1
9440119C2022R
ref: 26-1
COVER,COWLING R
€ 366.50
26-1
9440119C2022R
ref: 26-1
COVER,COWLING R
€ 366.50
26-2
9440119C2006X
ref: 26-2
COVER,COWLING R
€ 366.50
26-2
9440119C2006X
ref: 26-2
COVER,COWLING R
€ 366.50
27-1
6818019C0085K
ref: 27-1
TAPE SET,COWLING,RIGHT
6818019C0085K
€ 19.50
27-2
6818019C002GC
ref: 27-2
TAPE SET,COWL,R
€ 19.50
28-1
6818119C009AP
ref: 28-1
EMBLEM (KATANA)
6818119C009AP
€ 47.50
28-2
6818119C002GB
ref: 28-2
EMBLEM,KATANA
6818119C002GB
€ 29.50
29-1
6813127A009AP
ref: 29-1
EMBLEM (SALS)
€ 8.50
29-2
6813127A002GT
ref: 29-2
EMBLEM (SALS)
€ 9.00
30
9463119C10
ref: 30
94631-49310
MOLDING
9463119C10
€ 14.00
31
9463519C00
ref: 31
MOLDING
9463519C00
€ 6.00
32
9443819C00
ref: 32
JOINT,MOLDING END
9443819C00
€ 9.50
33
9443519C0022R
ref: 33
94435-19C01-22R
LID,OIL
€ 22.50
34
0913906030
ref: 34
SCREW(6X16)
0913906030
€ 3.50
35-1
9440219C2022R
ref: 35-1
COVER ASSY,COW
€ 345.50
35-1
9440219C2022R
ref: 35-1
COVER ASSY,COW
€ 345.50
35-2
9440219C2006X
ref: 35-2
COVER ASSY,COW
€ 345.50
35-2
9440219C2006X
ref: 35-2
COVER ASSY,COW
€ 345.50
36-1
6819019C0085K
ref: 36-1
TAPE SET,COWLING,LEFT
€ 19.50
36-2
6819019C002GC
ref: 36-2
TAPE SET,COWLING,LEFT
€ 19.50
37-1
6818119C009AP
ref: 37-1
EMBLEM (KATANA)
6818119C009AP
€ 47.50
37-2
6818119C002GB
ref: 37-2
EMBLEM,KATANA
6818119C002GB
€ 29.50
38-1
6813127A009AP
ref: 38-1
EMBLEM (SALS)
€ 8.50
38-2
6813127A002GT
ref: 38-2
EMBLEM (SALS)
€ 9.00
39
9463119C10
ref: 39
94631-49310
MOLDING
9463119C10
€ 14.00
40
9463519C00
ref: 40
MOLDING
9463519C00
€ 6.00
41
9443819C00
ref: 41
JOINT,MOLDING END
9443819C00
€ 9.50
42
0913906029
ref: 42
SCREW(6X25)
0913906029
€ 5.00
43
0916006036
ref: 43
WASHER(6.5X18X1.5)
0916006036
€ 1.50
44
0913906030
ref: 44
SCREW(6X16)
0913906030
€ 3.50
45
0916106021
ref: 45
WASHER(6.3X16X1.5)
0916106021
€ 2.50
46
9456019C00
ref: 46
BRACKET,COWLING UPR,R
9456019C00
€ 40.50
47
9457019C00
ref: 47
BRACKET,COWLING UPR,L
9457019C00
€ 40.50
48
0912506055
ref: 48
SCREW(6X25)
0912506055
€ 3.00
49
9457319C00
ref: 49
NUT,COWLING SIDE BRKT
9457319C00
€ 8.00
50
0913906029
ref: 50
SCREW(6X25)
0913906029
€ 5.00
51
0916006036
ref: 51
WASHER(6.5X18X1.5)
0916006036
€ 1.50
52
0918006011
ref: 52
09180-06263
SPACER (6.1X9X9)
0918006011
€ 2.00
53
0932009016
ref: 53
CUSHION
0932009016
€ 2.50
54
9447119C00019
ref: 54
94471-19C00-13L
COVER,COWLING,UNDER,RIGHT
9447119C00019
€ 126.00
55
9448119C00019
ref: 55
COVER,COWLING UNDER,L
€ 151.50
56
0913906042
ref: 56
SCREW(6X30)
0913906042
€ 7.50
57
0916006036
ref: 57
WASHER(6.5X18X1.5)
0916006036
€ 1.50
58
9453119C00
ref: 58
BRACKET,COWLING LWR,R
9453119C00
€ 8.00
59
9453219C00
ref: 59
BRACKET,COWLING LWR,L
9453219C00
€ 6.00
60
0932010015
ref: 60
CUSHION
0932010015
€ 2.50
61
9459019C00
ref: 61
NUT,COWLING,FR
9459019C00
€ 8.00
62
0110706165
ref: 62
01500-0616A
BOLT 6X16
0110706165
€ 2.00
63
0832121064
ref: 63
08321-0106A
WASHER,LOCK
0832121064
€ 2.00
64
0913905032
ref: 64
SCREW(5X18)
0913905032
€ 2.50
65
0916105017
ref: 65
WASHER(5.2X14X1.5)
0916105017
€ 3.00
66
9448432B00
ref: 66
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
67
0913906029
ref: 67
SCREW(6X25)
0913906029
€ 5.00
68
0916006036
ref: 68
WASHER(6.5X18X1.5)
0916006036
€ 1.50
69
0918006097
ref: 69
SPACER(6.1X9X12.3)
0918006097
€ 5.50
70
0932009016
ref: 70
CUSHION
0932009016
€ 2.50
71
0214206205
ref: 71
02142-0620A
SCREW, CENTER
0214206205
€ 2.00
72
0916006039
ref: 72
09160-06109
WASHER (6.5X18X1.6)
0916006039
€ 2.00
73
0918006011
ref: 73
09180-06263
SPACER (6.1X9X9)
0918006011
€ 2.00
74
0932009016
ref: 74
CUSHION
0932009016
€ 2.50
75
0214205164
ref: 75
02142-0516A
SCREW
0214205164
€ 2.50
76
0832221055
ref: 76
08322-0105A
WASHER,5MM
0832221055
€ 2.50
77
9458019C00
ref: 77
BRACKET,FR UNDER COWL
9458019C00
€ 6.50
78
0214205164
ref: 78
02142-0516A
SCREW
0214205164
€ 2.50
79
0916105017
ref: 79
WASHER(5.2X14X1.5)
0916105017
€ 3.00
80
9448432B00
ref: 80
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
81
9447519C00019
ref: 81
94475-19C01
COVER,COWLING,UNDER,FRONT
9447519C00019
€ 23.50
82-1
6861248B00
ref: 82-1
68922-14F00
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
82-2
6861248B10
ref: 82-2
68922-14F30
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
83
0214206127
ref: 83
SCREW 6X12
0214206127
€ 1.50
