GSX600F KATANA 1990 (L) USA (E03)

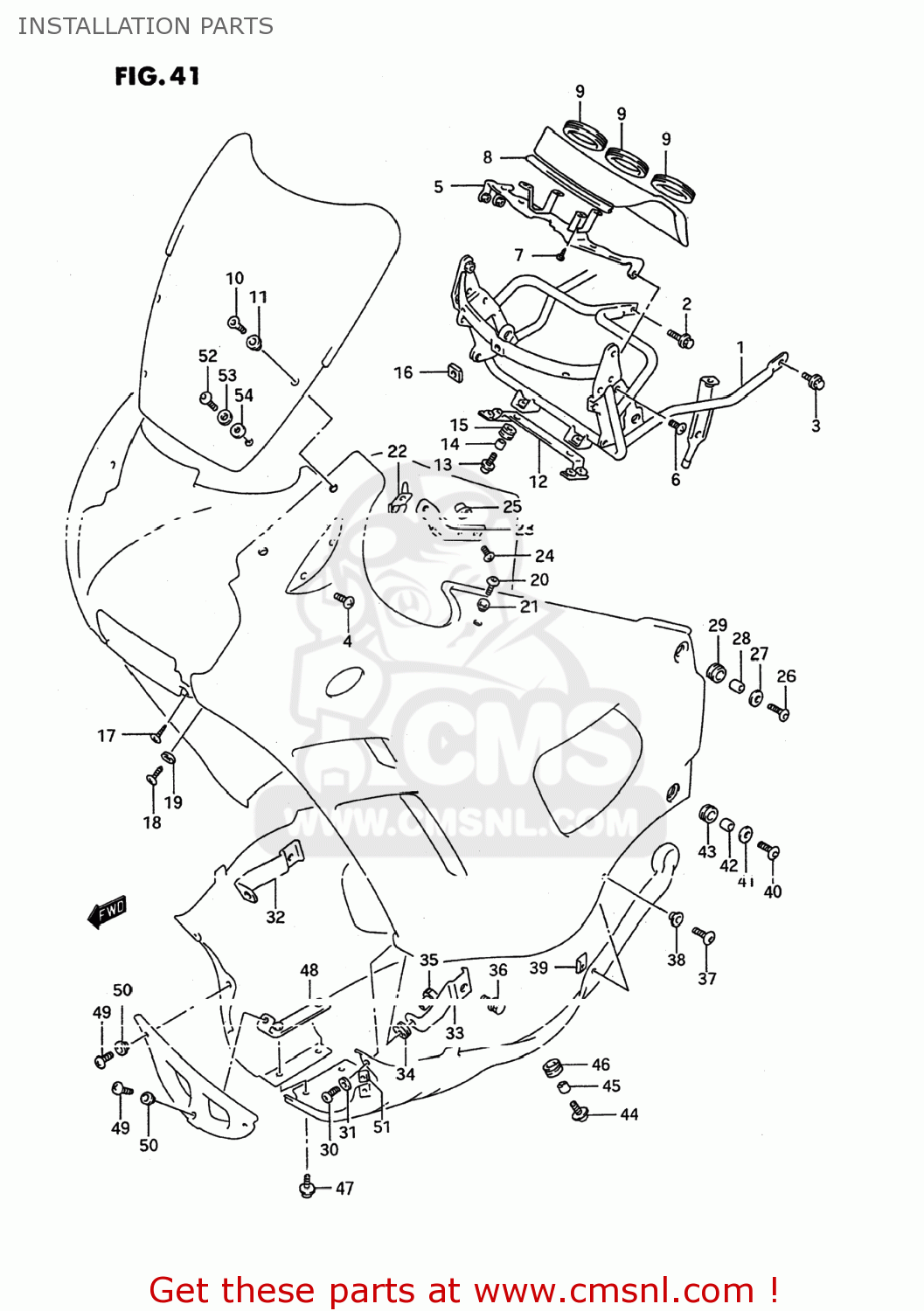

Installation parts diagram GSX600F KATANA 1990 (L) USA (E03)
INSTALLATION PARTS GSX600F KATANA 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9451019C00
ref: 1-1
94510-20C20
BRACE,COWLING
€ 128.50
1-2
9451020C00
ref: 1-2
94510-20C20
BRACE,COWLING
€ 128.50
1-3
9451020C20
ref: 1-3
BRACE,COWLING
€ 128.50
2-1
0151708205
ref: 2-1
01550-0820A
BOLT
€ 3.00
2-2
0151708207
ref: 2-2
01550-08207
BOLT
€ 3.00
2-3
0910308266
ref: 2-3
BOLT(8X20)
€ 2.50
3-1
0151706125
ref: 3-1
01550-0612A
BOLT 6X12
€ 2.50
3-2
0155006127
ref: 3-2
BOLT
€ 2.50
3-3
0155006123
ref: 3-3
01550-0612A
BOLT
€ 2.50
4-1
0214206127
ref: 4-1
SCREW 6X12
€ 1.50
4-2
0214206123
ref: 4-2
02142-0612A
SCREW 6X12
€ 2.00
5
9452019C00
ref: 5
PLATE,METER FITING
€ 31.50
6-1
0214206125
ref: 6-1
02142-0612A
SCREW 6X12
€ 2.00
6-2
0214206127
ref: 6-2
SCREW 6X12
€ 1.50
6-3
0214206123
ref: 6-3
02142-0612A
SCREW 6X12
€ 2.00
7-1
0354105085
ref: 7-1
03541-0508A
SCREW 5X8
€ 2.00
7-2
0354105083
ref: 7-2
03541-0508A
SCREW 5X8
€ 2.00
8
9452719C00
ref: 8
MOLDING,METER COVER
€ 3.00
9
9442619C00
ref: 9
CUSHION,METER COVER
€ 6.00
10
0913905022
ref: 10
09139-05042
SCREW
€ 2.50
11
0916105010
ref: 11
WASHER(5.2X11X1)
€ 2.00
12
9446019C00
ref: 12
PLATE,COWL CTR PANEL
€ 12.00
13
0913606081
ref: 13
SCREW(6X20)
€ 3.00
14
0918006167
ref: 14
09180-06286
SPACER (6,8X10X9.4)
€ 2.50
15
0932010015
ref: 15
CUSHION
€ 2.50
16
9463819C00
ref: 16
63191-25C00
CUSHION,SCREEN
€ 2.50
17-1
0214205127
ref: 17-1
SCREW
€ 1.50
17-2
0214205123
ref: 17-2
02142-0512A
SCREW 5X12
€ 1.50
18
0913906029
ref: 18
SCREW(6X25)
€ 5.00
19
0916006036
ref: 19
WASHER(6.5X18X1.5)
€ 1.50
20
0913906030
ref: 20
SCREW(6X16)
€ 3.50
21
0916106021
ref: 21
WASHER(6.3X16X1.5)
€ 2.50
22
9456019C00
ref: 22
BRACKET,COWLING UPR,R
€ 40.50
23
9457019C00
ref: 23
BRACKET,COWLING UPR,L
€ 40.50
24-1
0912506055
ref: 24-1
SCREW(6X25)
€ 3.00
24-2
0912506038
ref: 24-2
09125-06055
SCREW
€ 3.00
24-3
0214206253
ref: 24-3
02142-0625A
SCREW
€ 1.50
25
9457319C00
ref: 25
NUT,COWLING SIDE BRKT
€ 8.00
26
0913906029
ref: 26
SCREW(6X25)
€ 5.00
27
0916006036
ref: 27
WASHER(6.5X18X1.5)
€ 1.50
28
0918006011
ref: 28
09180-06263
SPACER (6.1X9X9)
€ 2.00
29
0932009016
ref: 29
CUSHION
€ 2.50
30
0913906042
ref: 30
SCREW(6X30)
€ 7.50
31
0916006036
ref: 31
WASHER(6.5X18X1.5)
€ 1.50
32
9453119C00
ref: 32
BRACKET,COWLING LWR,R
€ 8.00
33
9453219C00
ref: 33
BRACKET,COWLING LWR,L
€ 6.00
34
0932010015
ref: 34
CUSHION
€ 2.50
35
9459019C00
ref: 35
NUT,COWLING,FR
€ 8.00
36-1
0113706165
ref: 36-1
01570-0616A
BOLT
€ 2.50
36-2
0157006167
ref: 36-2
BOLT
€ 2.50
36-3
0157006163
ref: 36-3
01570-0616A
BOLT
€ 2.50
37
0913905025
ref: 37
SCREW(5X14)
€ 2.00
38
0916105017
ref: 38
WASHER(5.2X14X1.5)
€ 3.00
39
9448432B00
ref: 39
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
40
0913906029
ref: 40
SCREW(6X25)
€ 5.00
41
0916006036
ref: 41
WASHER(6.5X18X1.5)
€ 1.50
42
0918006097
ref: 42
SPACER(6.1X9X12.3)
€ 5.50
43
0932009016
ref: 43
CUSHION
€ 2.50
44
0913606081
ref: 44
SCREW(6X20)
€ 3.00
45
0918006011
ref: 45
09180-06263
SPACER (6.1X9X9)
€ 2.00
46
0932009016
ref: 46
CUSHION
€ 2.50
47-1
0214215165
ref: 47-1
02142-0516A
SCREW, LOWER
€ 2.50
47-2
0214215167
ref: 47-2
02142-05167
SCREW,LOWER
€ 1.50
47-3
0214205163
ref: 47-3
02142-0516A
SCREW
€ 2.50
48
9458019C00
ref: 48
BRACKET,FR UNDER COWL
€ 6.50
49-1
0214205164
ref: 49-1
02142-0516A
SCREW
€ 2.50
49-2
0214205167
ref: 49-2
SCREW
€ 1.50
49-3
0214205163
ref: 49-3
02142-0516A
SCREW
€ 2.50
50
0916105017
ref: 50
WASHER(5.2X14X1.5)
€ 3.00
51
9448432B00
ref: 51
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
52
0913905022
ref: 52
09139-05042
SCREW
€ 2.50
53
0832201053
ref: 53
08322-0105A
WASHER
€ 2.50
54
0916105002
ref: 54
09320-06502
WASHER
€ 2.00
