REAR WHEEL (MODEL J)
GSX600F KATANA 1990 (L) USA (E03)

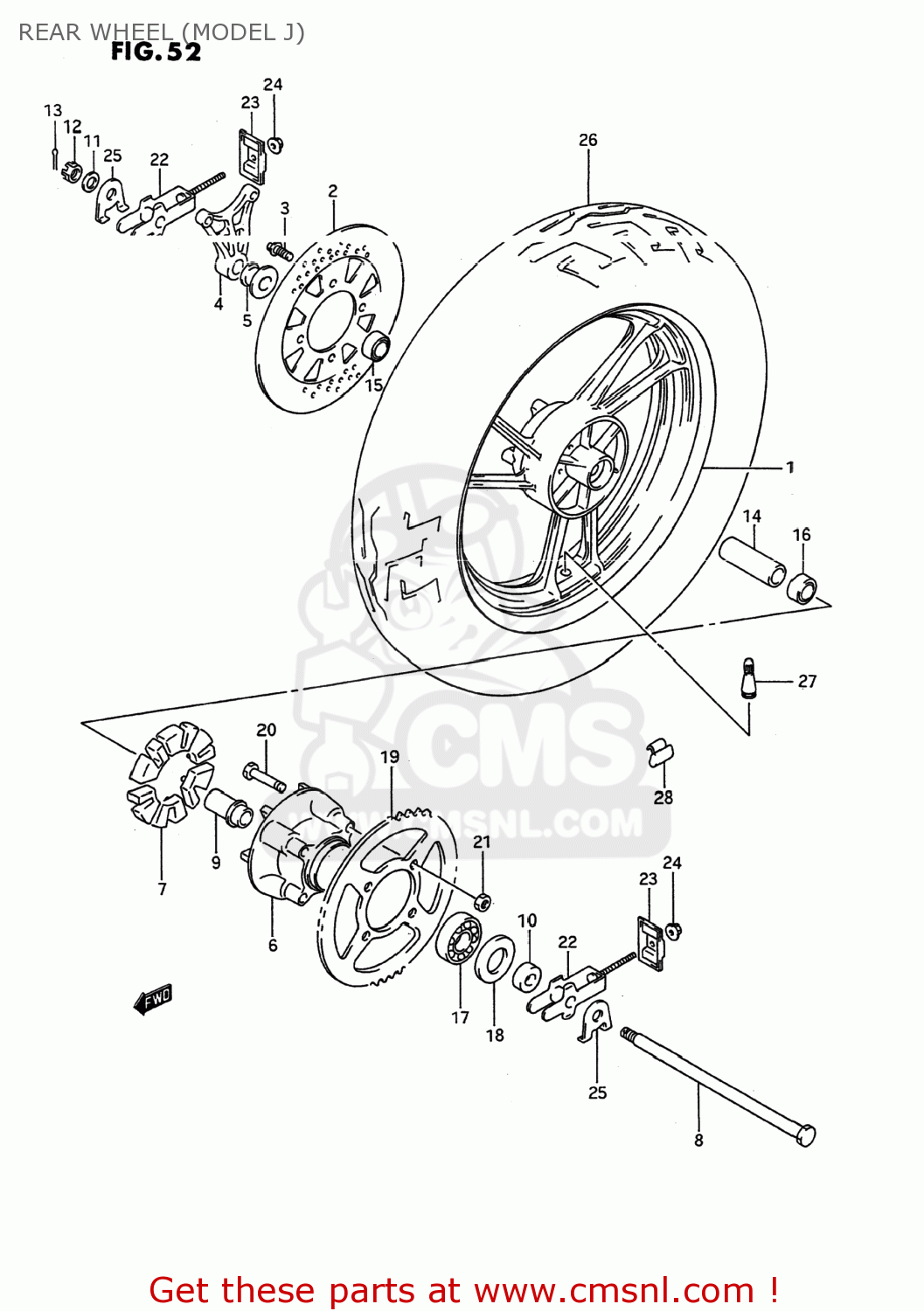

Rear wheel (model j) diagram GSX600F KATANA 1990 (L) USA (E03)
REAR WHEEL (MODEL J) GSX600F KATANA 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411130B0228W
ref: 1
WHEEL,REAR (MT3.00X17)
€ 613.00
2
6921119C00
ref: 2
DISC,RR BRAKE
€ 166.00
3
0712008305
ref: 3
07120-0830A
BOLT
€ 3.50
4
6972143400
ref: 4
BRACKET,RR,CALIPER
€ 51.50
5
6474019C00
ref: 5
SPACER,RR AXLE,R
€ 19.00
6-1
6461119C00
ref: 6-1
64611-19C02
DRUM,REAR SPROCKET MOUNT
€ 117.50
6-2
6461119C02
ref: 6-2
DRUM,REAR SPROCKET MOUNT
€ 117.50
7-1
6465104A00
ref: 7-1
ABSORBER,RR HUB SHOCK
€ 12.50
7-2
6465119C00
ref: 7-2
ABSORBER,REAR HUB SHOCK
€ 7.00
8
6471119C00
ref: 8
64711-19C0V
AXLE,REAR
€ 48.50
9
6473319C00
ref: 9
RETAINER,RR SPROCKET DRUM
€ 26.00
10
6475119C00
ref: 10
SPACER,RR AXLE,L
€ 12.50
11
0916017013
ref: 11
09160-17050
WASHER (17X30X3.2)
€ 2.00
12
0831441168
ref: 12
08314-4016A
NUT
€ 4.50
13
0411140308
ref: 13
04111-4030A
PIN,COTTER
€ 1.50
14
0918017072
ref: 14
SPACER(17.5X25X81)
€ 13.50
15
0814363037
ref: 15
BEARING
€ 23.00
16
0814362037
ref: 16
BEARING
€ 18.50
17
0926225073
ref: 17
BEARING(25X62X17)
€ 21.50
18
0928535001
ref: 18
SEAL,OIL(35X62X8)
€ 9.00
19
6451119C00
ref: 19
SPROCKET,REAR (46T-530)
€ 69.00
20-1
0911910043
ref: 20-1
BOLT(10X47)
€ 4.50
20-2
6454119C00
ref: 20-2
BOLT,REAR SPROCKET
€ 3.50
21
0831931107
ref: 21
NUT
€ 3.00
22
6141019C01
ref: 22
ADJUSTER,CHAIN
€ 20.00
23
6142119C00
ref: 23
PLATE,CHAIN ADJUSTER GUIDE
€ 5.50
24
0831931087
ref: 24
NUT
€ 2.50
25
6471219C00
ref: 25
64712-19C01
WASHER,CHAIN ADJUSTER
€ 5.50
26
6510019C00
ref: 26
65110-19C10
TIRE
€ 334.00
27
4313075150
ref: 27
43130-78030
VALVE,TIRE
€ 14.50
28-1
5541100A00
ref: 28-1
BALANCER,WHEEL (10G)
€ 6.50
28-2
5541200A00
ref: 28-2
55412-17G00
BALANCER,WHEEL
€ 7.00
28-3
5541300A00
ref: 28-3
55413-00A01
BALANCER,WHEEL
€ 4.00
