ALTERNATOR
GSX600F KATANA 1995 (S) USA (E03)

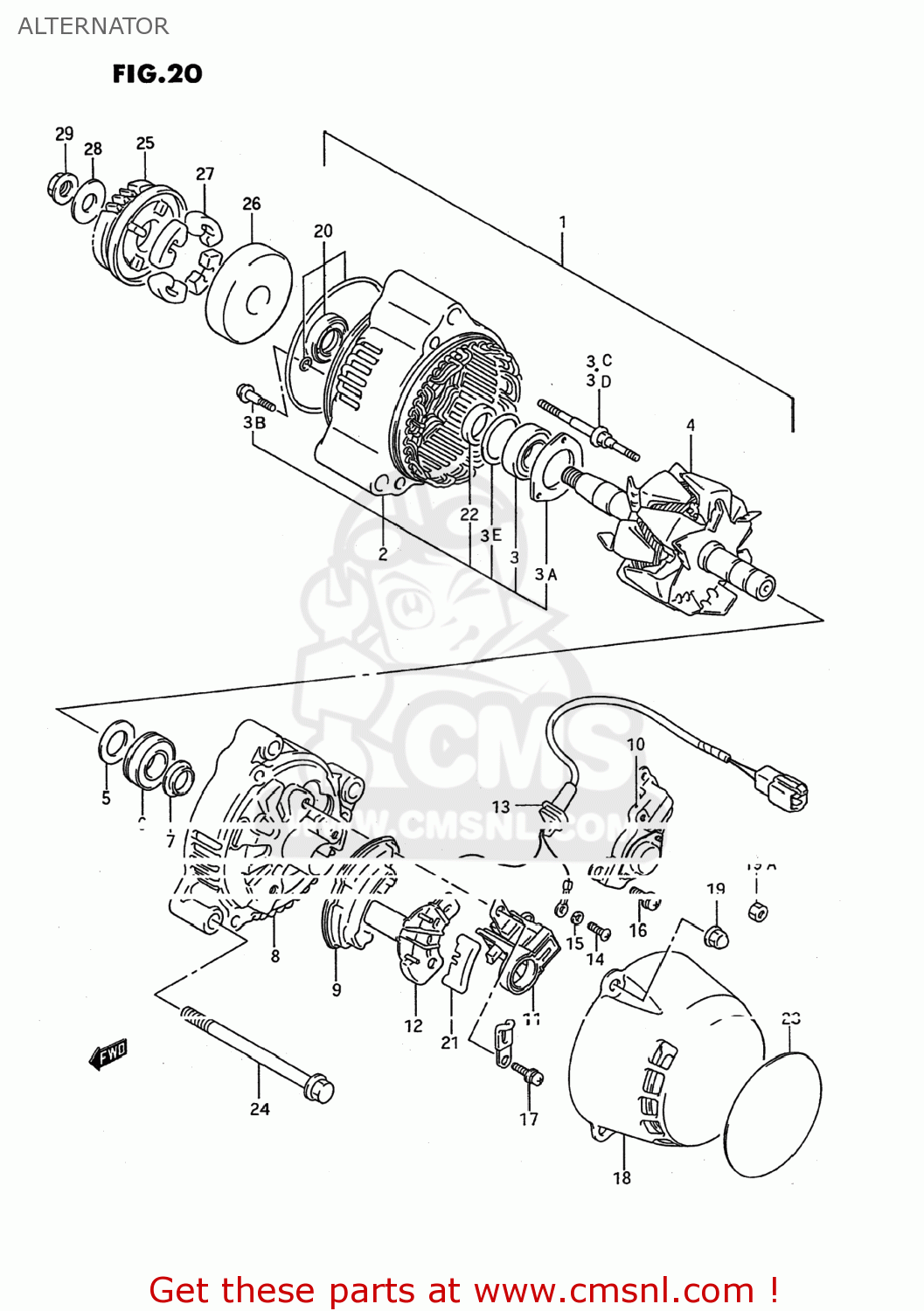

Alternator diagram GSX600F KATANA 1995 (S) USA (E03)
ALTERNATOR GSX600F KATANA 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3140048B03
ref: 1-1
31400-17C04
GENERATOR ASSEMBLY
€ 1,063.50
1-2
3140019C02
ref: 1-2
31400-17C04
ALTERNATOR ASSEMBLY
€ 1,063.50
1-3
3140017C03
ref: 1-3
31400-17C04
ALTERNATOR ASSEMBLY
€ 1,063.50
1-4
3140017C04
ref: 1-4
ALTERNATOR ASSY
€ 1,063.50
2
3158048B00
ref: 2
FRAME,DRIVE END
€ 248.50
3
3161206B00
ref: 3
BEARING
€ 36.50
3A
3158548B00
ref: 3A
RETAINER
€ 9.00
3B
3158648B00
ref: 3B
SCREW,BEARING RETAINER
€ 3.50
3C
3158785250
ref: 3C
STUD BOLT
€ 9.00
3D
3158719C00
ref: 3D
31587-85250
STUD BOLT
€ 9.00
3E
3161348B00
ref: 3E
COVER,BEARING
€ 5.50
4-1
3171048B03
ref: 4-1
31710-48B04
ROTOR ASSEMBLY
€ 277.50
4-2
3171048B04
ref: 4-2
ALTERNATOR ASSY
€ 277.50
5
3161382610
ref: 5
COVER,BEARING
€ 3.50
6
3161248B00
ref: 6
BEARING
€ 42.50
7
3161327A10
ref: 7
COVER(2)
€ 5.50
8
3161148B00
ref: 8
FRAME,END
€ 83.00
9
3162127A00
ref: 9
HOLDER,RECTIFIER
€ 225.50
10
3250027A00
ref: 10
REGULATOR
€ 321.00
11
3165648B00
ref: 11
HOLDER,BRUSH
€ 55.50
12
3168727A00
ref: 12
31687-17E00
COVER,RECTIFIER
€ 4.50
13
3148048B00
ref: 13
WIRE,LEAD
€ 22.00
14-1
0211204086
ref: 14-1
02112-0408A
SCREW
€ 2.00
14-2
3151685250
ref: 14-2
02112-0406B
SCREW
€ 2.00
14-3
0211204063
ref: 14-3
02112-0406B
SCREW 4X6
€ 2.00
15
0832121046
ref: 15
08321-0104A
LOCK WASHER
€ 2.00
16
3168827A00
ref: 16
SCREW
€ 2.50
17
3168806B00
ref: 17
31688-27A00
SCREW
€ 2.50
18
3161448B00
ref: 18
COVER
€ 67.50
19
3169248B00
ref: 19
08313-2005A
NUT
€ 1.50
19A
0831616055
ref: 19A
NUT ,5MM
€ 2.00
20-1
3178048B00
ref: 20-1
31780-27X50
SEAL SET,OIL
€ 47.50
20-2
3178027X50
ref: 20-2
SERVICE KIT(A)
€ 47.50
21-1
3151427A00
ref: 21-1
31687-17E00
BUSH
€ 4.50
21-2
3168717E00
ref: 21-2
COVER,RECTIFIER
€ 4.50
22
3177606B00
ref: 22
SPACER
€ 22.00
23
3161517C00
ref: 23
31615-27E00
PROTECTOR,ALTERNATOR
€ 10.00
24-1
0151708908
ref: 24-1
01550-08907
BOLT 8X90
€ 3.50
24-2
0155008903
ref: 24-2
01550-0890B
BOLT
€ 3.50
25
2273019C01
ref: 25
22730-19C02
GEAR,GENERATOR DRIVEN
€ 112.50
26
2273327A04
ref: 26
22733-27A05
HOUSING,GENERATOR GEAR
€ 95.00
27
2123106B00
ref: 27
DAMPER,GENERATOR DRIVEN
€ 5.50
28
0821110283
ref: 28
WASHER
€ 3.00
29-1
0831626106
ref: 29-1
08316-2010B
NUT
€ 3.50
29-2
0831620103
ref: 29-2
08316-2010B
NUT
€ 3.50
