Buy Suzuki GSX Parts Online


HANDLEBAR

GSX600F KATANA 1995 (S) USA (E03)

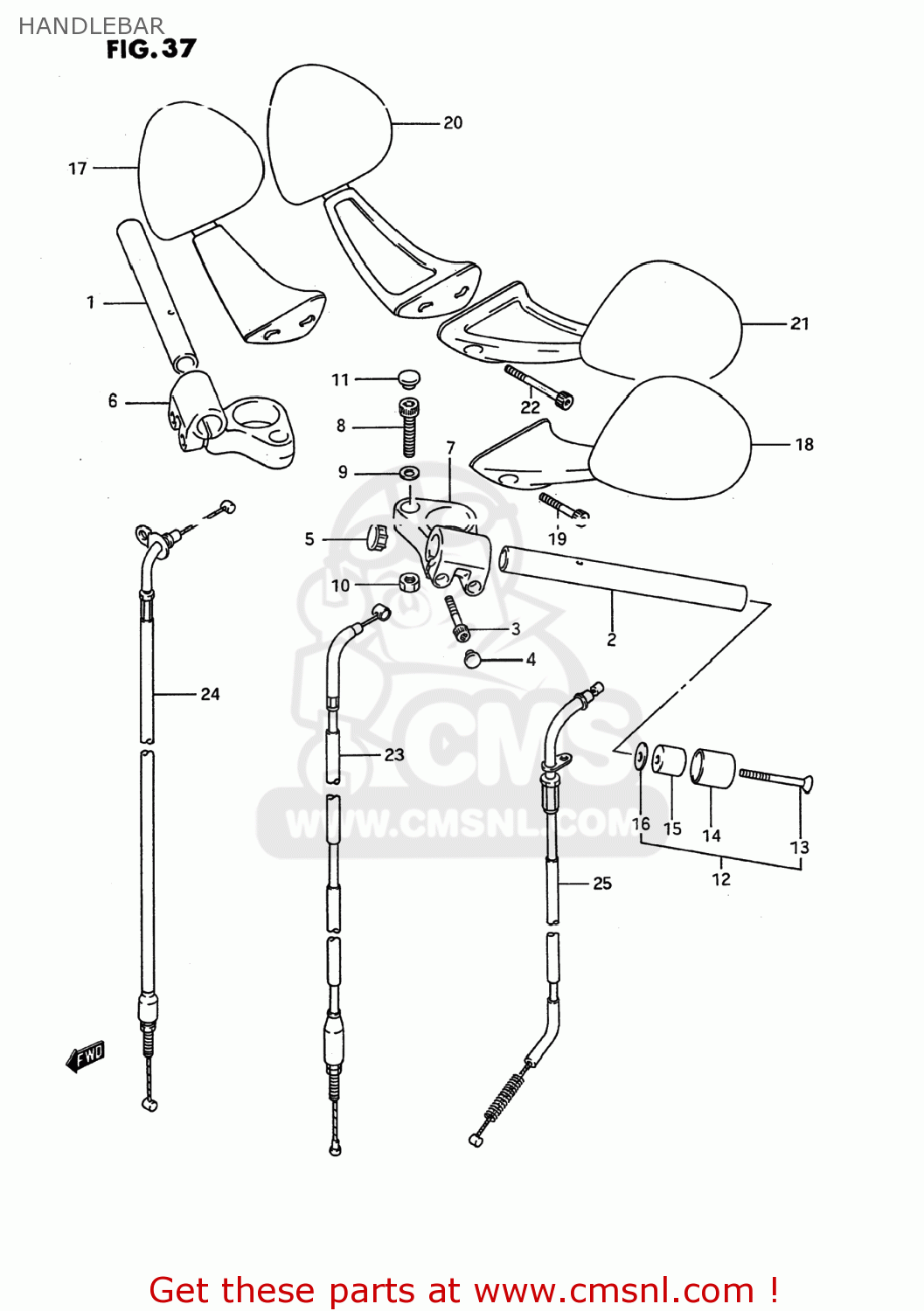

Handlebar diagram GSX600F KATANA 1995 (S) USA (E03)

HANDLEBAR GSX600F KATANA 1995 (S) USA (E03)
HANDLEBAR GSX600F KATANA 1995 (S) USA (E03)
HANDLEBAR GSX600F KATANA 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5611019C00
ref: 1
HANDLEBAR,R
5611019C00
€ 36.00
2
5615019C00
ref: 2
HANDLEBAR,L
5615019C00
€ 39.00
3-1
0713006307
ref: 3-1
BOLT
0713006307
€ 3.00
3-2
0713006303
ref: 3-2
07130-0630B
BOLT
0713006303
€ 3.00
4
0925005009
ref: 4
CAP(OD:10)
0925005009
€ 2.50
5
5721533400
ref: 5
CAP,HANDLEBAR
5721533400
€ 4.00
6-1
5621119C01
ref: 6-1
HOLDER,HANDLEBAR,R
5621119C01
€ 102.00
6-2
5621119C10
ref: 6-2
56211-19C12
HOLDER,HANDLEBAR,RIGHT
5621119C10
€ 131.00
7-1
5622119C01
ref: 7-1
HOLDER,HANDLEBAR,LEFT
5622119C01
€ 91.00
7-2
5622119C10
ref: 7-2
56221-19C12
HOLDER,HANDLEBAR,LEFT
€ 86.50
8
0910610022
ref: 8
09106-10022-XC0
BOLT 10X45
0910610022
€ 4.00
9
0916410005
ref: 9
09164-10010
WASHER
0916410005
€ 6.50
10
0831931107
ref: 10
NUT
0831931107
€ 3.00
11
0925008010
ref: 11
CAP(OD:20)
0925008010
€ 2.50
12-1
5620019841
ref: 12-1
56200-11832
BALANCER SET,HANDLEBAR
€ 58.50
12-2
5620027810
ref: 12-2
56200-11832
BALANCER SET,HANDLEBAR
5620027810
€ 58.50
12-2
5620027810
ref: 12-2
56200-11832
BALANCER SET,HANDLEBAR
5620027810
€ 58.50
12-3
5620019820
ref: 12-3
56200-11832
BALANCER SET,HANDLEBAR
€ 58.50
12-3
5620019820
ref: 12-3
56200-11832
BALANCER SET,HANDLEBAR
€ 58.50
12-4
5620011821
ref: 12-4
56200-11832
BALANCER SET,HANDLEBAR
5620011821
€ 58.50
12-5
5620011831
ref: 12-5
56200-11832
BALANCER SET,HANDLEBAR
5620011831
€ 58.50
13-1
0213206505
ref: 13-1
02122-0650B
SCREW
0213206505
€ 3.00
13-2
0212206453
ref: 13-2
02122-0645B
SCREW
0212206453
€ 2.00
14
5627431300
ref: 14
CAP,BALANCER
5627431300
€ 223.50
15
5627149400
ref: 15
BALANCER,HANDLE
5627149400
€ 19.50
16
5627534401
ref: 16
SPACER,BALANCER
5627534401
€ 2.50
17
5650019C00
ref: 17
56500-20C31
MIRROR ASSEMBLY,REAR VIEW
€ 95.50
18
5660019C00
ref: 18
56600-20C31
MIRROR ASSEMBLY,REAR VIEW
5660019C00
€ 95.50
19
0711006405
ref: 19
07130-0640B
BOLT
0711006405
€ 3.50
20-1
5650020C40
ref: 20-1
56500-20C42
MIRROR ASSEMBLY,REAR VIEW
€ 83.00
20-2
5650020C41
ref: 20-2
56500-20C42
MIRROR ASSEMBLY,REAR VIEW
€ 83.00
21-1
5660020C40
ref: 21-1
56600-20C42
MIRROR ASSEMBLY,REAR VIEW
€ 81.50
21-2
5660020C41
ref: 21-2
56600-20C42
MIRROR ASSEMBLY,REAR VIEW
€ 81.50
22-1
0711006705
ref: 22-1
07130-0670B
BOLT
€ 4.00
22-2
0713006703
ref: 22-2
07130-0670B
BOLT
0713006703
€ 4.00
23
5820019C00
ref: 23
CABLE ASSY,CLUTCH
5820019C00
€ 29.50
24-1
5830019C00
ref: 24-1
CABLE ASSY,THROTTLE
5830019C00
€ 36.00
24-2
5830019C10
ref: 24-2
CABLE ASSY,THROTTLE
5830019C10
€ 31.50
25-1
5841019C00
ref: 25-1
58410-19C01
CABLE,STARTER
5841019C00
€ 24.00
25-2
5841019C11
ref: 25-2
CABLE,STARTER
5841019C11
€ 24.00
