FRAME COVER (MODEL J/K)

GSX600F KATANA 1995 (S) USA (E03)

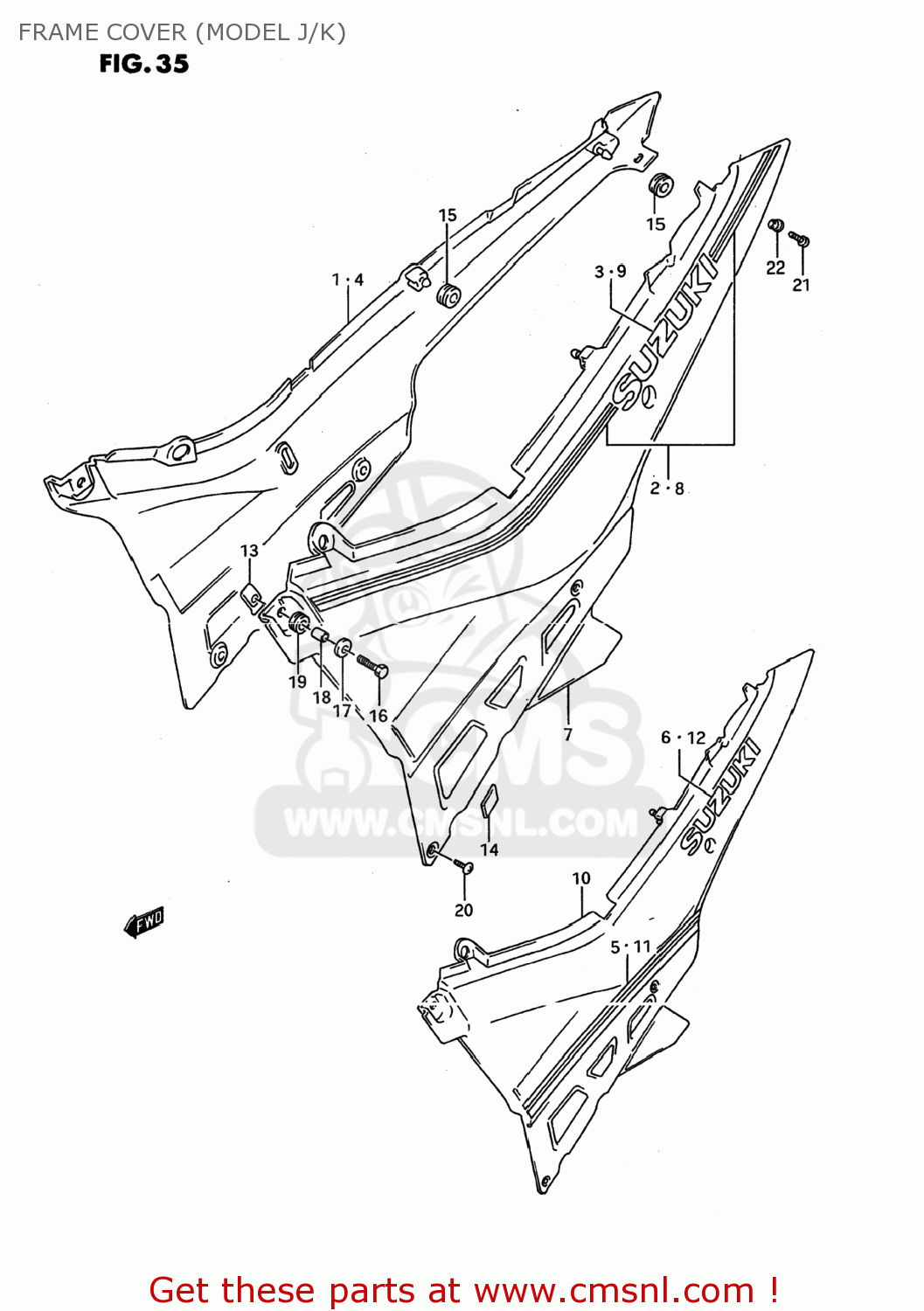

Frame cover (model j/k) diagram GSX600F KATANA 1995 (S) USA (E03)

FRAME COVER (MODEL J/K) GSX600F KATANA 1995 (S) USA (E03)
FRAME COVER (MODEL J/K) GSX600F KATANA 1995 (S) USA (E03)
FRAME COVER (MODEL J/K) GSX600F KATANA 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4711019C007JT
ref: 1-1
47111-19C01
COVER,FRAME,RIGHT
€ 275.50
1-2
4711019C002GA
ref: 1-2
47111-19C01
COVER,FRAME,RIGHT
€ 275.50
2-1
6813019C0085K
ref: 2-1
TAPE SET,FRAME COVER,RIGHT
€ 19.00
2-2
6813019C002GC
ref: 2-2
TAPE SET,FRAME COVER,RIGHT
€ 15.50
3-1
681114340007P
ref: 3-1
EMBLEM
681114340007P
€ 9.00
3-2
681114340038K
ref: 3-2
EMBLEM
€ 7.50
4-1
4711019C302LR
ref: 4-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4-2
4711019C312LR
ref: 4-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4-3
4711019C302YP
ref: 4-3
COVER,FRAME,RIGHT
€ 221.50
4-4
4711019C312YP
ref: 4-4
47110-19C30-2YP
COVER,FRAME,RIGHT
€ 221.50
5-1
6813019C2071P
ref: 5-1
TAPE,FRAME COVER RH
€ 0.00
5-2
6813019C2070G
ref: 5-2
TAPE SET,FRAME COVER,RIGHT
€ 15.50
6-1
6813119C20764
ref: 6-1
EMBLEM (GOLD) MODEL K FOR 2LR
€ 0.00
6-2
6813119C20019
ref: 6-2
68111-47C10-019
EMBLEM
€ 13.00
7-1
4721019C007JT
ref: 7-1
47211-19C01
COVER,FRAME,LEFT
€ 327.50
7-1
6814019C0085K
ref: 7-1
TAPE SET,FRAME COVER,LEFT
6814019C0085K
€ 15.50
7-2
4721019C002GA
ref: 7-2
47211-19C01
COVER,FRAME,LEFT
€ 327.50
7-2
6814019C002GC
ref: 7-2
TAPE SET,FRAME COVER,LEFT
€ 16.00
9-1
681114340007P
ref: 9-1
EMBLEM
681114340007P
€ 9.00
9-2
681114340038K
ref: 9-2
EMBLEM
€ 7.50
10-1
4721019C302LR
ref: 10-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10-2
4721019C312LR
ref: 10-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10-3
4721019C302YP
ref: 10-3
COVER,FRAME,LEFT
€ 196.00
10-4
4721019C312YP
ref: 10-4
47210-19C30-2YP
COVER,FRAME,LEFT
€ 196.00
11-1
6814019C2071P
ref: 11-1
TAPE,FRAME COVER LH
€ 0.00
11-2
6814019C2070G
ref: 11-2
TAPE,FRAME COVER LH
€ 15.50
12-1
6813119C20764
ref: 12-1
EMBLEM (GOLD) MODEL K FOR 2LR
€ 0.00
12-2
6813119C20019
ref: 12-2
68111-47C10-019
EMBLEM
€ 13.00
13-1
4715319C00
ref: 13-1
47153-19C01
PLATE,FRAME COVER
€ 4.00
13-2
4715319C01
ref: 13-2
PLATE,FRAME COVER
4715319C01
€ 4.00
14
4716119C00
ref: 14
CUSHION,FRAME COVER
4716119C00
€ 1.50
15
0932008018
ref: 15
CUSHION
0932008018
€ 4.00
16
0912806006
ref: 16
09128-06057
BOLT(6X20)
0912806006
€ 2.00
17
0916006057
ref: 17
09160-06109
WASHER
€ 2.00
18
0918006011
ref: 18
09180-06263
SPACER (6.1X9X9)
0918006011
€ 2.00
19
0932009016
ref: 19
CUSHION
0932009016
€ 2.50
20
0913905038
ref: 20
SCREW(5X15.3)
0913905038
€ 2.00
21
0214205124
ref: 21
02142-0512A
SCREW, FRONT & REAR
€ 1.50
22
0916905009
ref: 22
WASHER
0916905009
€ 3.50
