FRONT DAMPER (MODEL J)
GSX600F KATANA 1995 (S) USA (E03)

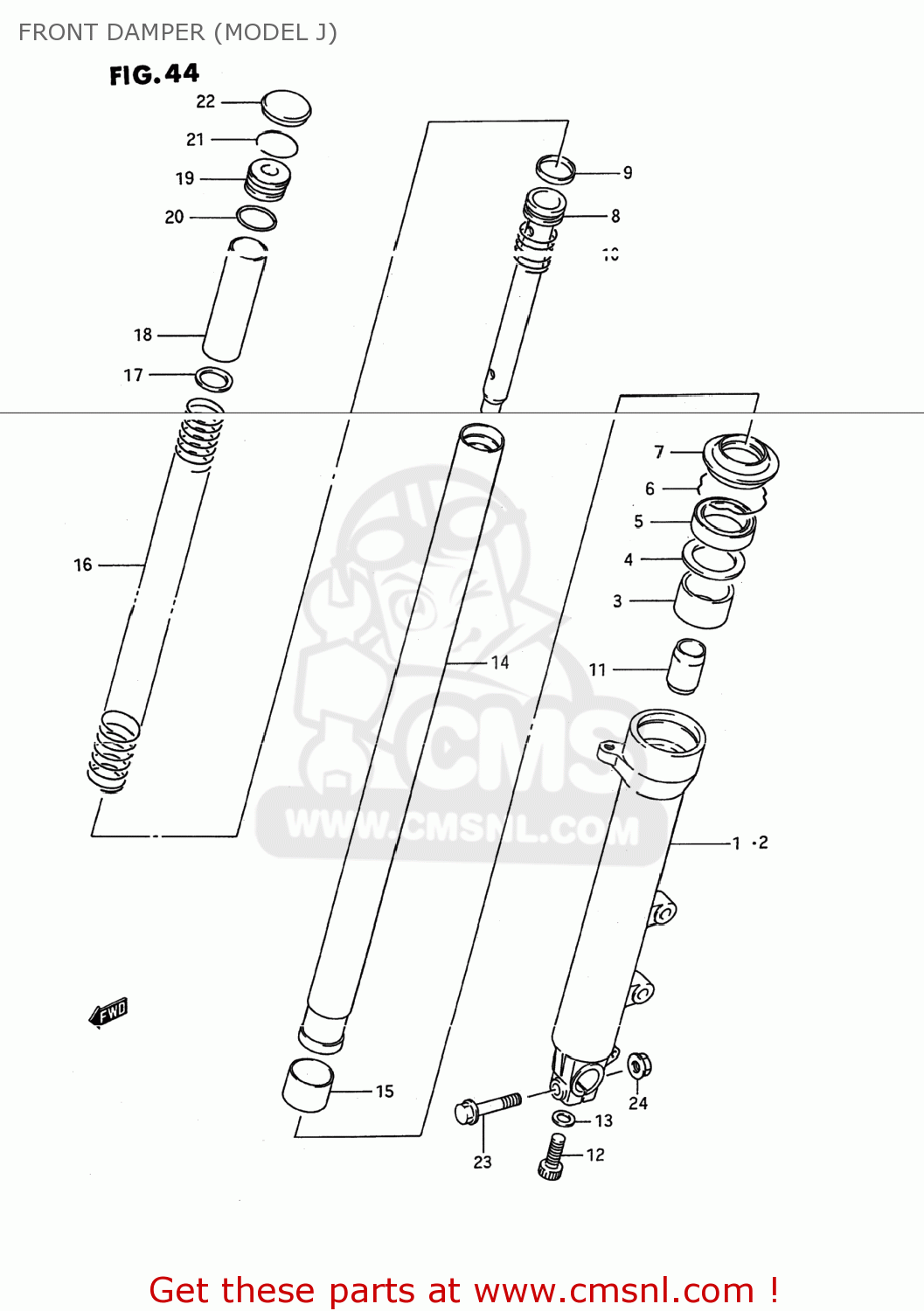

Front damper (model j) diagram GSX600F KATANA 1995 (S) USA (E03)
FRONT DAMPER (MODEL J) GSX600F KATANA 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110319C00
ref:
51103-19C01
DAMPER ASSEMBLY,RIGHT
€ 581.00
5110419C00
ref:
51104-19C01
DAMPER ASSEMBLY,LEFT
€ 360.00
1
5113019C00
ref: 1
51130-19C01
TUBE,OUTER,RIGHT
€ 373.50
2
5114019C00
ref: 2
51140-19C01
TUBE,OUTER,LEFT
€ 321.00
3
5115248B31
ref: 3
BUSH,GUIDE
€ 20.00
4
5116838B00
ref: 4
SPACER,SEAL
€ 5.00
5
5115338B00
ref: 5
51153-08D00
OIL SEAL,FRONT FORK
€ 15.50
6
5155638B00
ref: 6
CIRCLIP,FORK OIL SEAL
€ 4.50
7
5157138B00
ref: 7
51173-15D00
BOOT
€ 19.50
8
5114619C00
ref: 8
CYLINDER
€ 0.00
9
5119619C00
ref: 9
RING,PISTON
€ 4.50
10
5117748B31
ref: 10
SPRING,REBOUND
€ 12.00
11
5119548B31
ref: 11
PIECE,OIL LOCK
€ 19.00
12
5114748130
ref: 12
BOLT(8X27)
€ 3.50
13
5114836011
ref: 13
GASKET (NAS)
€ 4.00
14
5111019C00
ref: 14
TUBE,INNER
€ 342.00
15
5112148B31
ref: 15
BUSH,SLIDE
€ 15.50
16
5117119C00
ref: 16
SPRING
€ 53.50
17
5119219C00
ref: 17
JOINT,SPRING
€ 3.50
18
5117619C00
ref: 18
COLLAR,SPRING
€ 8.50
19
5117219C00
ref: 19
SEAT,SPRING
€ 20.50
20
5111719C00
ref: 20
O RING
€ 0.00
21
5116948B31
ref: 21
RING,STOPPER
€ 4.00
22
5118919C00
ref: 22
CAP
€ 11.50
23
0151708504
ref: 23
01550-0850B
BOLT, UPPER
€ 2.50
24
0831616085
ref: 24
08316-1008B
NUT 8MM
€ 3.00
