WIRING HARNESS
GSX600F KATANA 1995 (S) USA (E03)

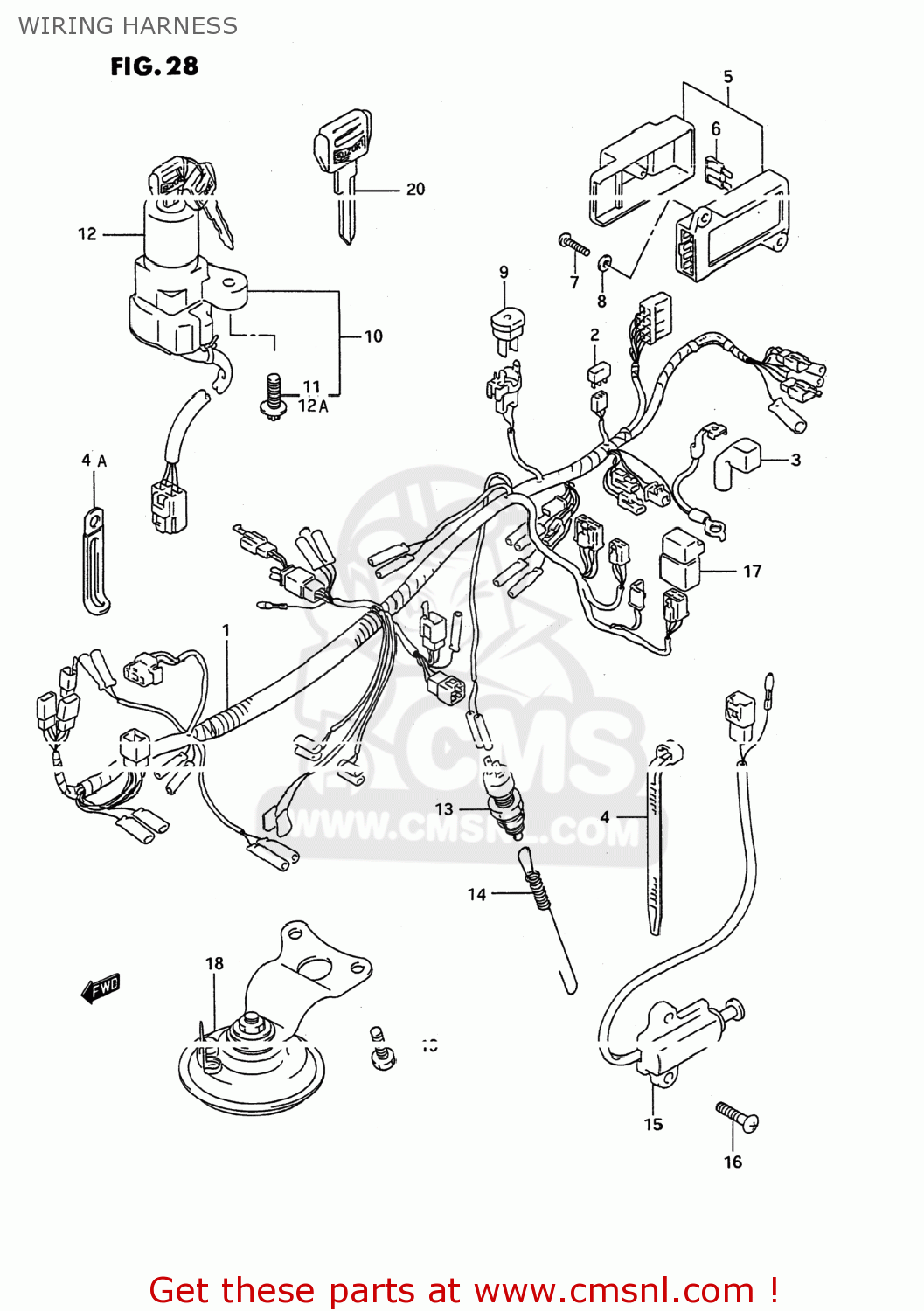

Wiring harness diagram GSX600F KATANA 1995 (S) USA (E03)
WIRING HARNESS GSX600F KATANA 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661019C01
ref: 1-1
36610-19C02
HARNESS,WIRING
€ 259.00
1-2
3661019C10
ref: 1-2
36610-19C12
HARNESS,WIRING
€ 308.50
1-3
3661019C11
ref: 1-3
36610-19C12
HARNESS,WIRING
€ 308.50
1-4
3661019C12
ref: 1-4
HARNESS,WIRING
€ 308.50
1-5
3661019C40
ref: 1-5
HARNESS,WIRING
€ 330.50
1-6
3661019C60
ref: 1-6
HARNESS,WIRING
€ 395.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3-1
3362427A00
ref: 3-1
33624-43500
CAP,BATTERY PLUS
€ 3.50
3-2
3362443500
ref: 3-2
CAP,BATTERY PLUS TERMINAL
€ 3.50
4-1
0940710403
ref: 4-1
CLAMP(L:95)
€ 2.50
4A-1
0940406426
ref: 4A-1
09404-06433
CLAMP
€ 3.00
4-2
0940711401
ref: 4-2
CLAMP(L:95)
€ 2.50
4A-2
0940406429
ref: 4A-2
CLAMP(L:45)
€ 2.50
4-3
0940714403
ref: 4-3
CLAMP(L:125)
€ 2.50
4-4
0940718403
ref: 4-4
09407-18402
CLAMP L:165
€ 2.50
5-1
3674005A01
ref: 5-1
36740-27A00
BOX ASSEMBLY,FUSE
€ 77.50
5-2
3674019C00
ref: 5-2
BOX ASSY,FUSE
€ 88.00
6-1
0948110101
ref: 6-1
FUSE(10A)
€ 2.50
6-2
0948110101
ref: 6-2
FUSE(10A)
€ 2.50
6-3
0948125101
ref: 6-3
09481-25103
FUSE (25A)
€ 2.50
7-1
0211206203
ref: 7-1
02112-0620A
SCREW, 6X20
€ 2.00
7-2
0211216203
ref: 7-2
02112-1620B
SCREW
€ 2.50
7-3
0214206203
ref: 7-3
02142-0620A
SCREW
€ 2.00
8
0832201067
ref: 8
WASHER
€ 2.00
9
3675005A00
ref: 9
BREAKER ASSY,CIRCUT
€ 36.50
10
3710017C00
ref: 10
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
11
0913906026
ref: 11
SCREW(6X18)
€ 2.50
12A
0913906026
ref: 12A
SCREW(6X18)
€ 2.50
12-1
3710017C02
ref: 12-1
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
12-2
3710033D00
ref: 12-2
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
12-3
3710026D02
ref: 12-3
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
13
3774024A00
ref: 13
SWITCH ASSY,STOP LAMP
€ 20.50
14
0944306005
ref: 14
SPRING
€ 6.00
15-1
3784020A10
ref: 15-1
37840-44X50
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
15-2
3784020A11
ref: 15-2
37840-44X50
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
15-3
3784044X50
ref: 15-3
SWITCH ASSY,SIDE STAND
€ 75.50
16-1
0211236205
ref: 16-1
02112-3620A
SCREW
€ 2.00
16-2
0155006203
ref: 16-2
01550-0620A
BOLT
€ 2.50
17-1
3874024B10
ref: 17-1
38740-24X50
RELAY ASSEMBLY
€ 37.50
17-2
3874024X50
ref: 17-2
RELAY ASSY
€ 37.50
18-1
3850019C00
ref: 18-1
38500-19C01
HORN ASSEMBLY
€ 54.00
18-2
3850019C01
ref: 18-2
HORN ASSY
€ 54.00
19-1
0111706165
ref: 19-1
01550-0616A
BOLT
€ 2.50
19-2
0155006163
ref: 19-2
01550-0616A
BOLT
€ 2.50
20-1
3714603A80
ref: 20-1
37146-26D10
KEY,BLANK
€ 41.50
20-2
3714626D10
ref: 20-2
KEY,BLANK
€ 41.50
