FUEL TANK (MODEL J/K/L)
GSX600F KATANA 1995 (S) USA (E03)

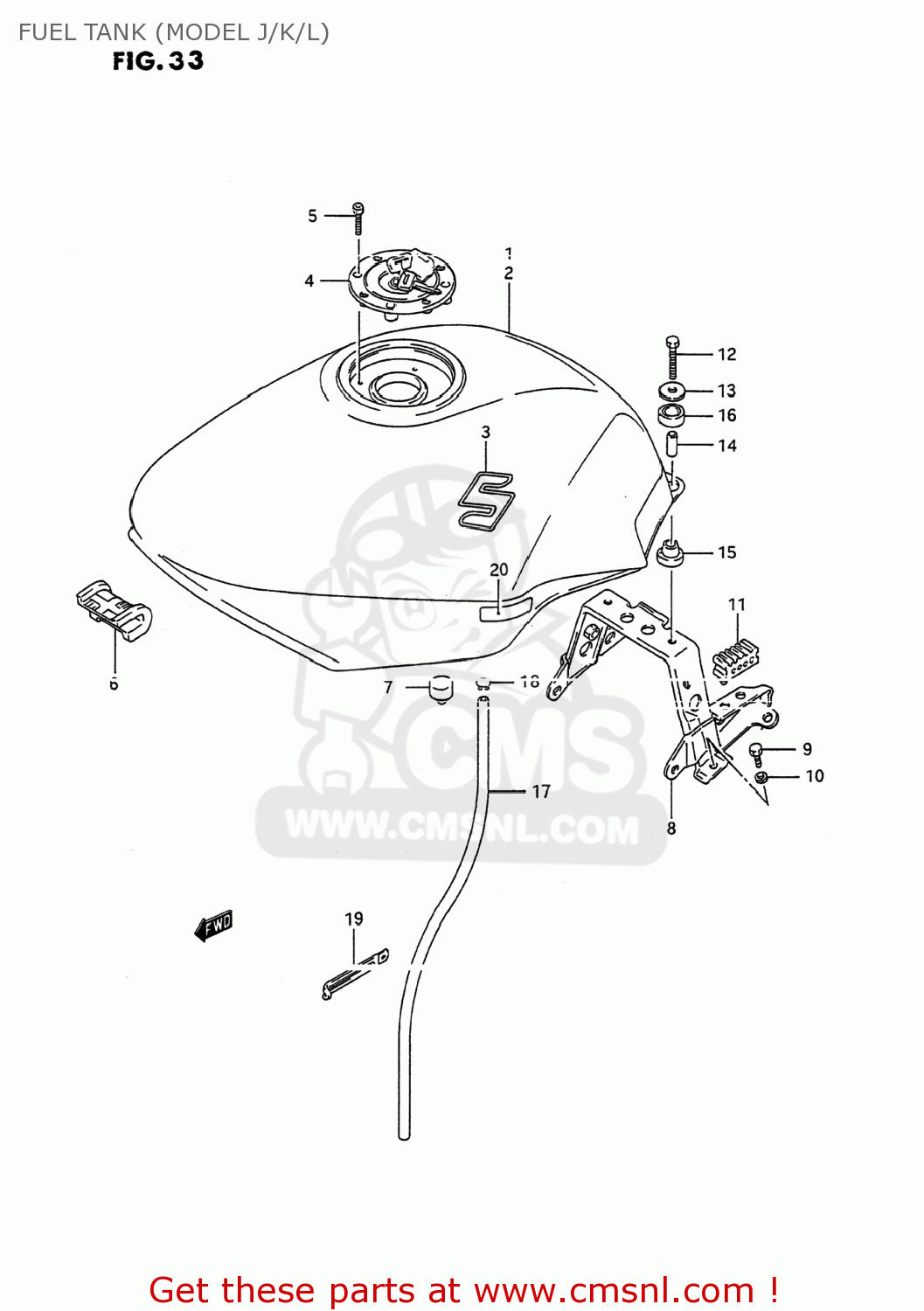

Fuel tank (model j/k/l) diagram GSX600F KATANA 1995 (S) USA (E03)
FUEL TANK (MODEL J/K/L) GSX600F KATANA 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4411019C0007P
ref: 1-1
44110-19C22-YD8
TANK ASSEMBLY,FUEL
€ 421.00
1-2
4411019C0038K
ref: 1-2
44110-19C22-YD8
TANK ASSEMBLY,FUEL
€ 421.00
2-1
4410019C3028V
ref: 2-1
44110-19C22-YD8
TANK ASSEMBLY,FUEL
€ 421.00
2-2
4410019C3031X
ref: 2-2
TANK ASSEMBLY,FUEL
€ 421.00
2-3
4410019C3033J
ref: 2-3
44100-19C31-33J
TANK ASSEMBLY,FUEL
€ 418.50
3-1
6811119C00019
ref: 3-1
EMBLEM
€ 8.50
3-2
6811119C00764
ref: 3-2
EMBLEM (GOLD) MODEL K FOR 31X
€ 0.00
3-3
6811119C0022P
ref: 3-3
EMBLEM,FUEL TANK
€ 8.50
4-1
4420019C00KEY
ref: 4-1
44201-01832
CAP SET,FUEL TANK
€ 204.00
4-2
4420101831
ref: 4-2
44201-01832
CAP SET,FUEL TANK
€ 204.00
5
0910605017
ref: 5
BOLT(5X20)
€ 3.00
6
4451119C00
ref: 6
CUSHION,FUEL TANK FR
€ 8.00
7
0932110011
ref: 7
CUSHION
€ 3.00
8
4455019C00
ref: 8
BRACKET,FUEL TANK RR
€ 54.50
9-1
0912806006
ref: 9-1
09128-06057
BOLT(6X20)
€ 2.00
9-2
0913706017
ref: 9-2
01570-0620A
SCREW
€ 2.50
10
0832101063
ref: 10
08321-0106A
LOCK WASHER
€ 2.00
11
4514931300
ref: 11
CUSHION,SEAT(40X20X15)
€ 2.00
12-1
0150006303
ref: 12-1
01500-0630A
BOLT
€ 2.50
12-2
0911606078
ref: 12-2
09116-06172
BOLT
€ 2.50
13
0916006072
ref: 13
09160-06501
WASHER (6.5X24X1.6)
€ 2.00
14
0918006072
ref: 14
09180-06271
SPACER
€ 2.00
15
0932010038
ref: 15
CUSHION
€ 4.00
16
0932014017
ref: 16
CUSHION
€ 3.00
17
4442319C00
ref: 17
HOSE,FUEL TANK WATER DRAIN
€ 13.00
18
0940108402
ref: 18
CLIP
€ 1.50
19
0940408420
ref: 19
CLAMP(L:120 T:1.0)
€ 3.50
20-1
4428319C00
ref: 20-1
PROTECTOR,FUEL TANK,RIGHT
€ 7.00
20-2
4429319C00
ref: 20-2
PROTECTOR,FUEL TANK,LEFT
€ 7.00
