BATTERY

GSX600F KATANA 1999 (X) USA (E03)

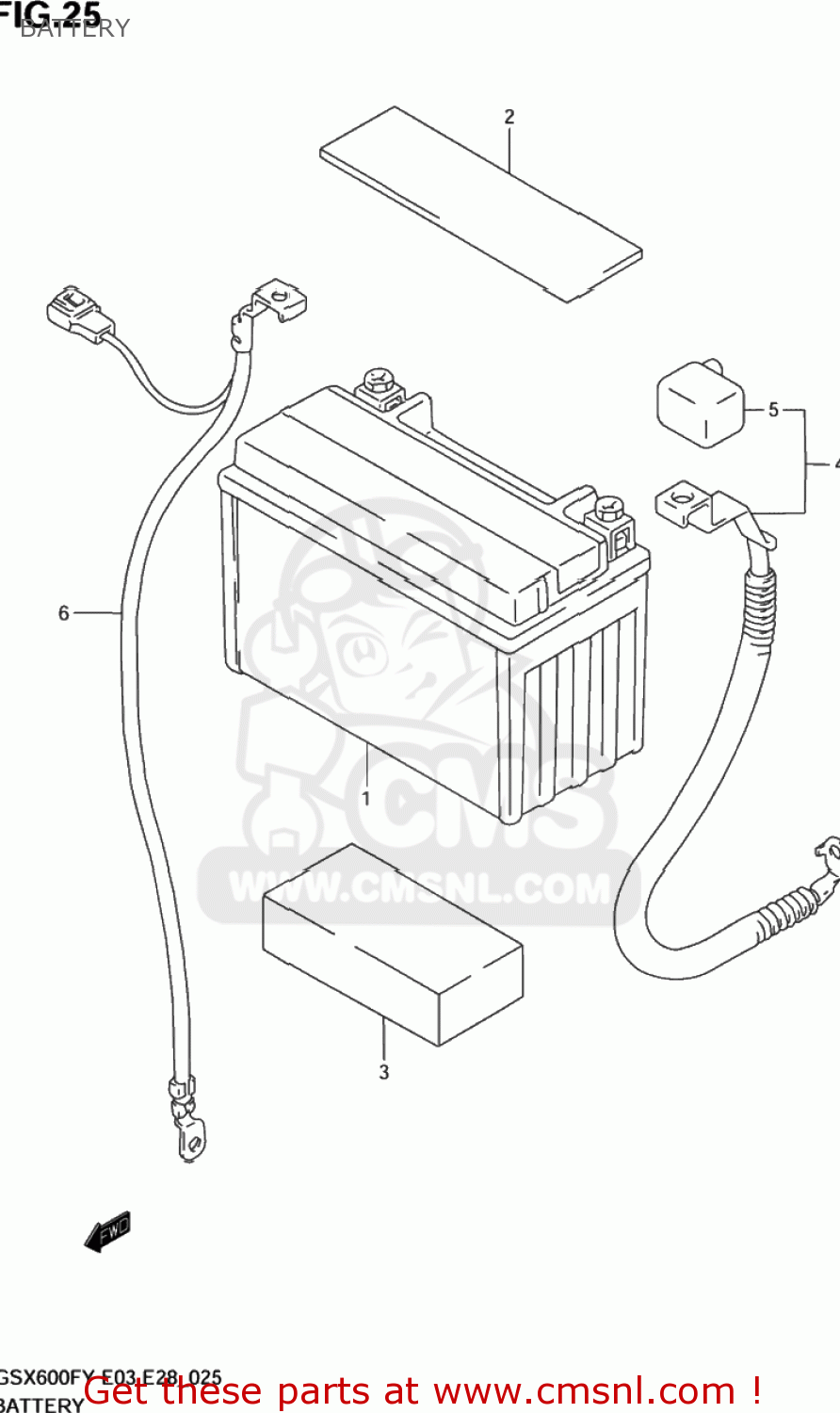

Battery diagram GSX600F KATANA 1999 (X) USA (E03)

BATTERY GSX600F KATANA 1999 (X) USA (E03)

BATTERY GSX600F KATANA 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361032C10
ref: 1
33610-33E20

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3

3365235400
ref: 3

PROTECTOR(20X50X8)

€ 2.00

4

3382048E00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 13.00

5

3362416E00
ref: 5

CAP,BATTERY PLUS

€ 4.00

6

3386008F00
ref: 6

WIRE,BATTERY MINUS

€ 14.00
