SEAT (MODEL K3)

GSX600F KATANA 1999 (X) USA (E03)

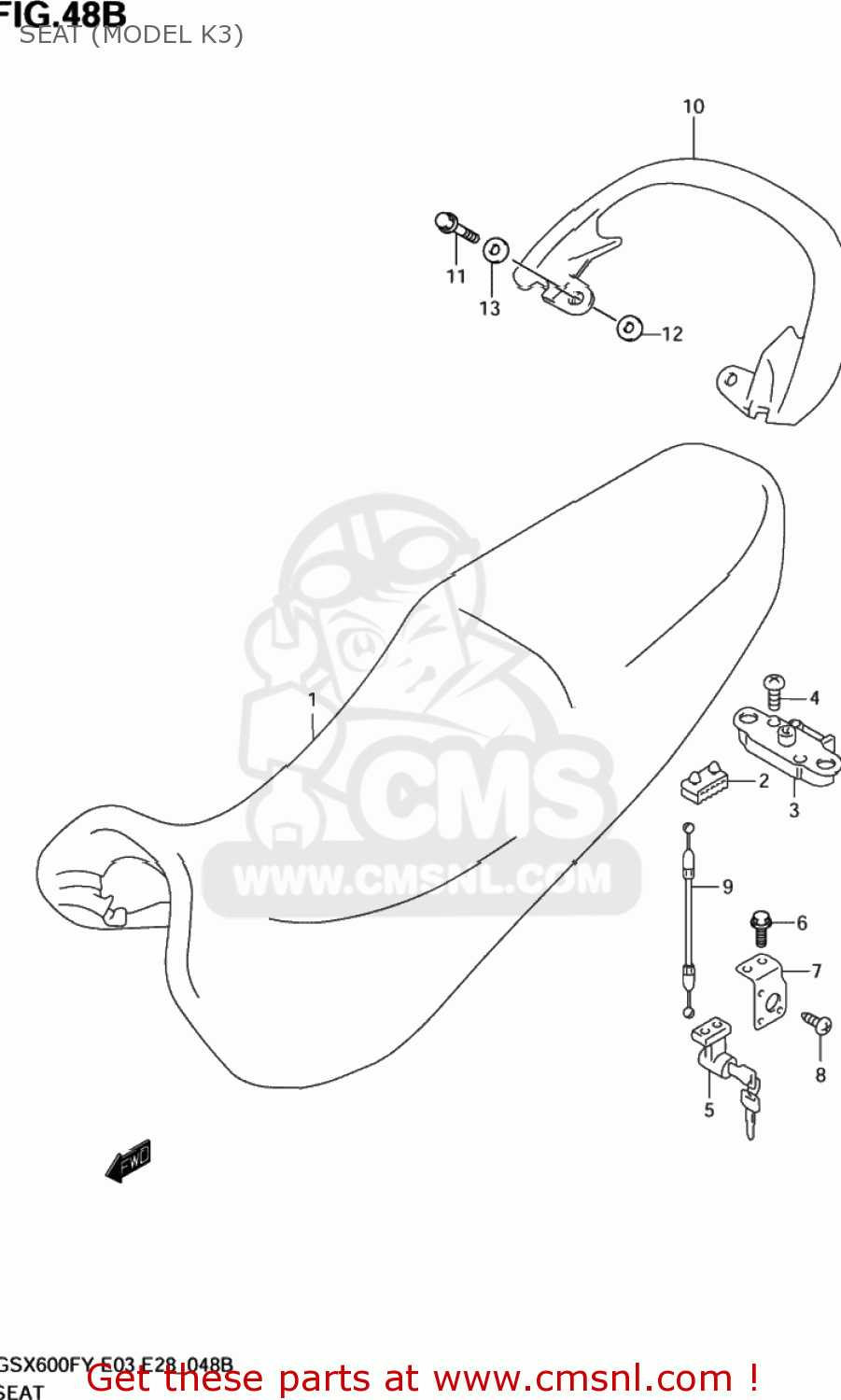

Seat (model k3) diagram GSX600F KATANA 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

4510008F10LN6
ref: 1
45100-08F11-LN6

SEAT ASSY

€ 360.00

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

4522020A01
ref: 3
45220-47H00

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

0212206303
ref: 4
02122-0630B

SCREW

€ 2.00

9570031840
ref: 5
95700-31841

LOCK SET,SEAT

€ 57.00

0154705103
ref: 6
01547-0510B

BOLT

€ 2.50

4528903F10
ref: 7

BRACKET,SEAT LOCK

€ 7.50

0314114123
ref: 8
03141-1412B

SCREW

€ 2.00

4528015500
ref: 9

CABLE,SEAT LOCK

€ 10.00

4621103F1133J
ref: 10

HANDLE,PILLION RIDER(BLACK)

€ 172.00

0155108303
ref: 11
01551-0830A

BOLT.MUF SPRT F

€ 3.00

4621203F10
ref: 12

CUSHION,RIDER HNDL(17X24X1.5)

€ 13.50

0916008501
ref: 13

WASHER(8.5X24X2.3)

€ 2.00
