HANDLE SWITCH

GSX600F KATANA 1999 (X) USA (E03)

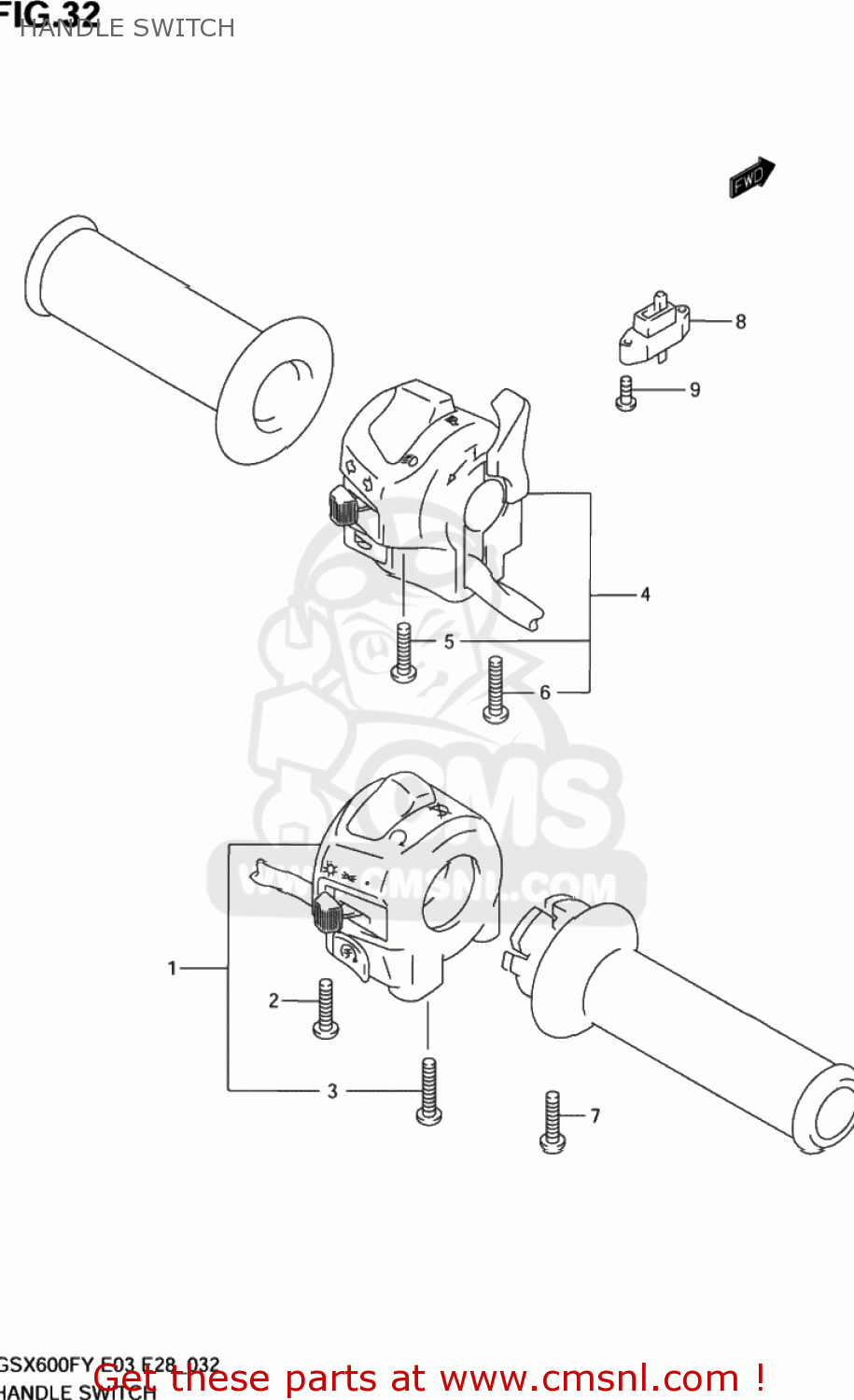

Handle switch diagram GSX600F KATANA 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

3720033E31
ref: 1

SWITCH ASSY,HANDLE,R

€ 135.00

0211205305
ref: 2
02112-0530B

SCREW

€ 1.50

0211205505
ref: 3
02112-0550B

SCREW

€ 2.00

3740026E31
ref: 4

SWITCH ASSY,HANDLE,L

€ 133.00

0211205253
ref: 5
02112-0525A

SCREW

€ 1.50

0211205453
ref: 6
02112-0545B

SCREW

€ 4.00

0211205103
ref: 7
02112-0510A

SCREW

€ 2.00

3756038A00
ref: 8

SWITCH ASSY,CLUTCH

€ 20.00

9-1

3756426E00
ref: 9-1
09132-03017

SCREW

€ 3.00

9-2

0913203017
ref: 9-2

SCREW(3X14)

€ 3.00
