CYLINDER

GSX600F KATANA 1999 (X) USA (E03)

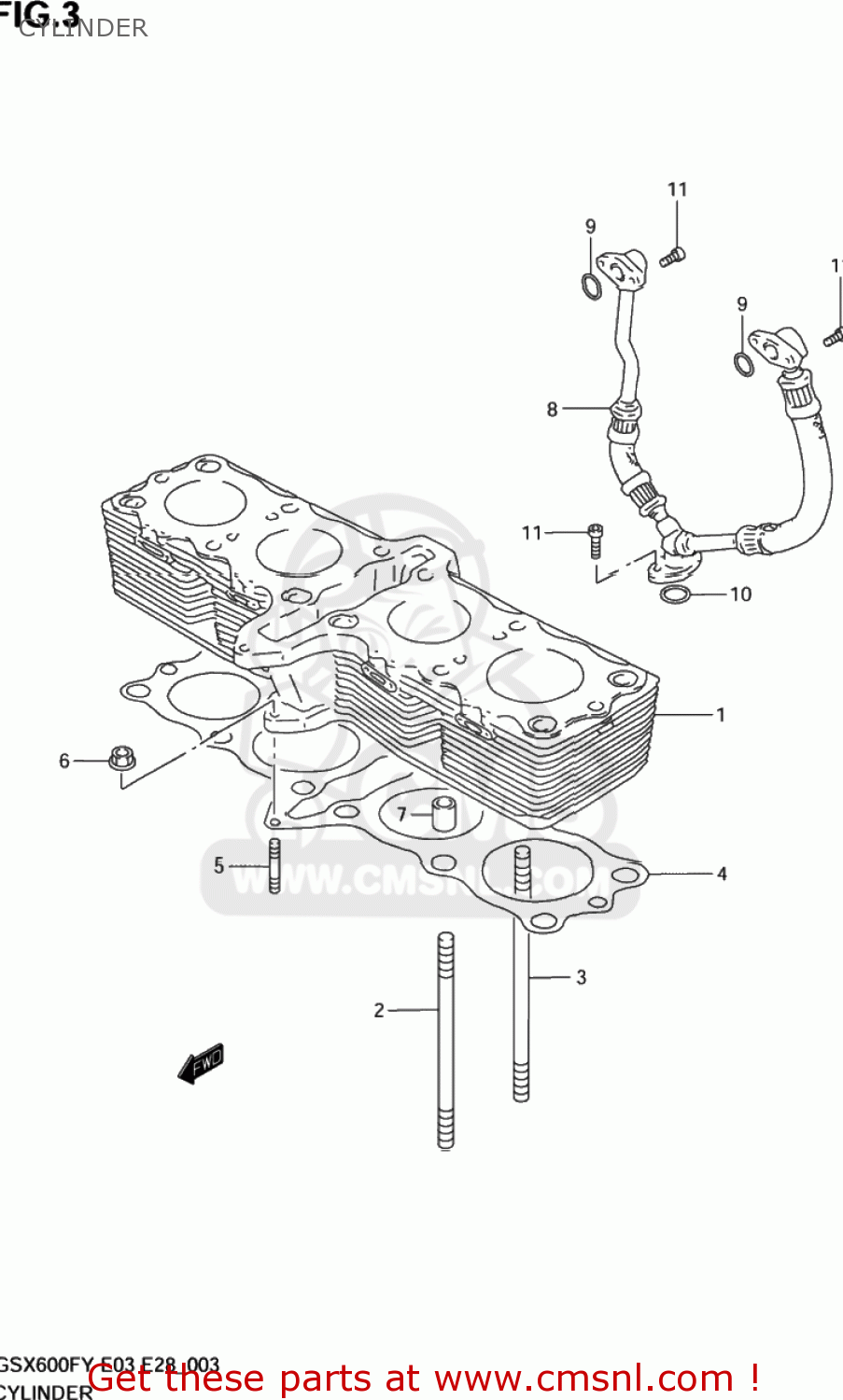

Cylinder diagram GSX600F KATANA 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121026E00
ref: 1-1
11210-26E00-0F0

CYLINDER COMP

€ 791.00

1-2

1121026E000F0
ref: 1-2

CYLINDER

€ 791.00

1-3

1121026E10
ref: 1-3
11210-26E10-0F0

CYLINDER COMP

€ 777.50

1-4

1121026E100F0
ref: 1-4

CYLINDER

€ 777.50

0910810109
ref: 2
09108-10144

STUD BOLT (L:150)

€ 11.00

0910810073
ref: 3

BOLT,STUD

€ 9.50

1124127A04
ref: 4

GASKET,CYLINDER (NAS)

€ 20.00

0142106203
ref: 5
01421-0620A

STUD,M6X1X32

€ 2.50

0831610063
ref: 6
08316-1006B

NUT

€ 2.50

0920613017
ref: 7

PIN(13X10.4X20)

€ 9.00

1132827A04
ref: 8

HOSE,OIL HEAD COOLER

€ 241.00

0928014011
ref: 9

O RING(D:2.5,ID:13.8)

€ 3.50

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

0713006163
ref: 11
07130-0616B

BOLT,OIL FILLE

€ 3.00
