FOOTREST (MODEL K1/K2/K3)

GSX600F KATANA 1999 (X) USA (E03)

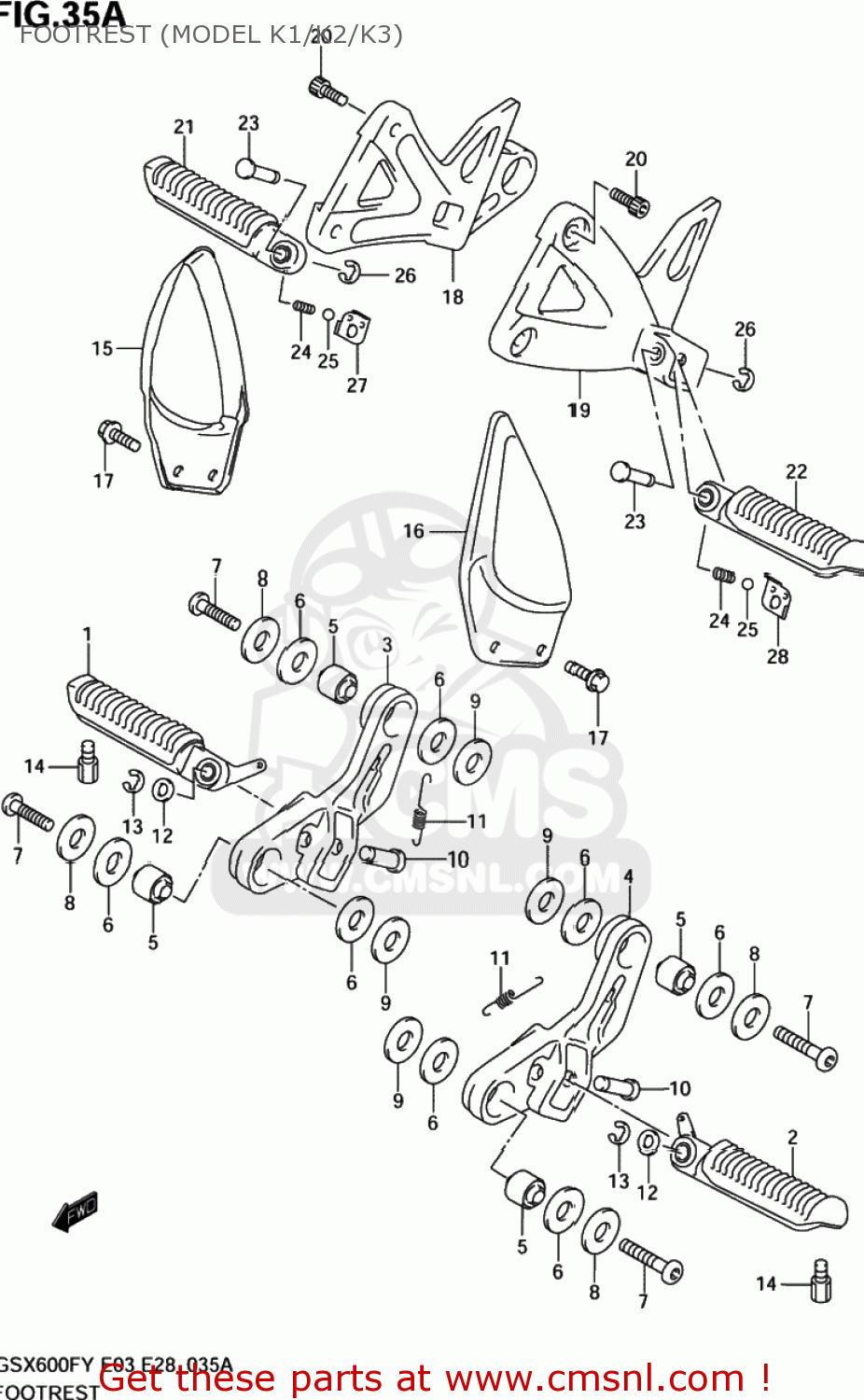

Footrest (model k1/k2/k3) diagram GSX600F KATANA 1999 (X) USA (E03)

FOOTREST (MODEL K1/K2/K3) GSX600F KATANA 1999 (X) USA (E03)
FOOTREST (MODEL K1/K2/K3) GSX600F KATANA 1999 (X) USA (E03)
FOOTREST (MODEL K1/K2/K3) GSX600F KATANA 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4351019C31
ref: 1
43510-19C22
BAR,FRONT FOOTREST,RIGHT
4351019C31
€ 64.50
2
4352019C31
ref: 2
43520-19C22
BAR,FRONT FOOTREST,LEFT
4352019C31
€ 64.50
3
4353119C00
ref: 3
HOLDER,FR FOOTREST,R
4353119C00
€ 43.50
4
4354119C00
ref: 4
HOLDER,FR FOOTREST,L
4354119C00
€ 64.00
5
0931908033
ref: 5
BUSH(8.4X20X18)
0931908033
€ 7.00
6
0916112006
ref: 6
WASHER(12.5X30X2)
0916112006
€ 6.50
7
0910608137
ref: 7
BOLT(8X33)
0910608137
€ 5.50
8
0916008138
ref: 8
09160-08503
WASHER (8.5X30X2.3)
0916008138
€ 2.00
9
0916008503
ref: 9
WASHER(8.5X30X2.3)
0916008503
€ 2.00
10
0920808010
ref: 10
PIN(8X33.2)
0920808010
€ 3.00
11
0944308049
ref: 11
SPRING
0944308049
€ 5.50
12
0832201083
ref: 12
08322-0108A
WASHER
0832201083
€ 1.50
13
0833211063
ref: 13
08332-1106A
E.RING
0833211063
€ 2.00
14
4357607D01
ref: 14
BOLT,BANK SENSOR
4357607D01
€ 8.00
15
4357108F00
ref: 15
GUARD,FR FOOTREST,R
4357108F00
€ 27.50
16
4358108F00
ref: 16
GUARD,FR FOOTREST,L
4358108F00
€ 27.50
17
0910608128
ref: 17
BOLT(8X16)
0910608128
€ 4.00
18
4381108F00
ref: 18
BRACKET,PILLION FOOTREST,R
€ 113.50
19
4382108F00
ref: 19
BRACKET,PILLION FOOTREST,L
4382108F00
€ 113.50
20
0910608150
ref: 20
BOLT(8X23)
0910608150
€ 3.50
21
4361020C01
ref: 21
BAR,PILLION FOOTREST,R
4361020C01
€ 52.50
22
4371020C01
ref: 22
BAR,PILLION FOOTREST,L
4371020C01
€ 52.50
23
0920808011
ref: 23
PIN
0920808011
€ 3.00
24
0944005005
ref: 24
SPRING
0944005005
€ 1.50
25
0611107004
ref: 25
BALL
0611107004
€ 1.50
26
0833211063
ref: 26
08332-1106A
E.RING
0833211063
€ 2.00
27
4381623E00
ref: 27
PLATE,PILLION FOOTREST,R
€ 5.00
28
4382623E00
ref: 28
PLATE,PILLION FOOTREST,L
4382623E00
€ 5.00
