FRONT FENDER (MODEL W/X/Y/K1/K2)

GSX600F KATANA 1999 (X) USA (E03)

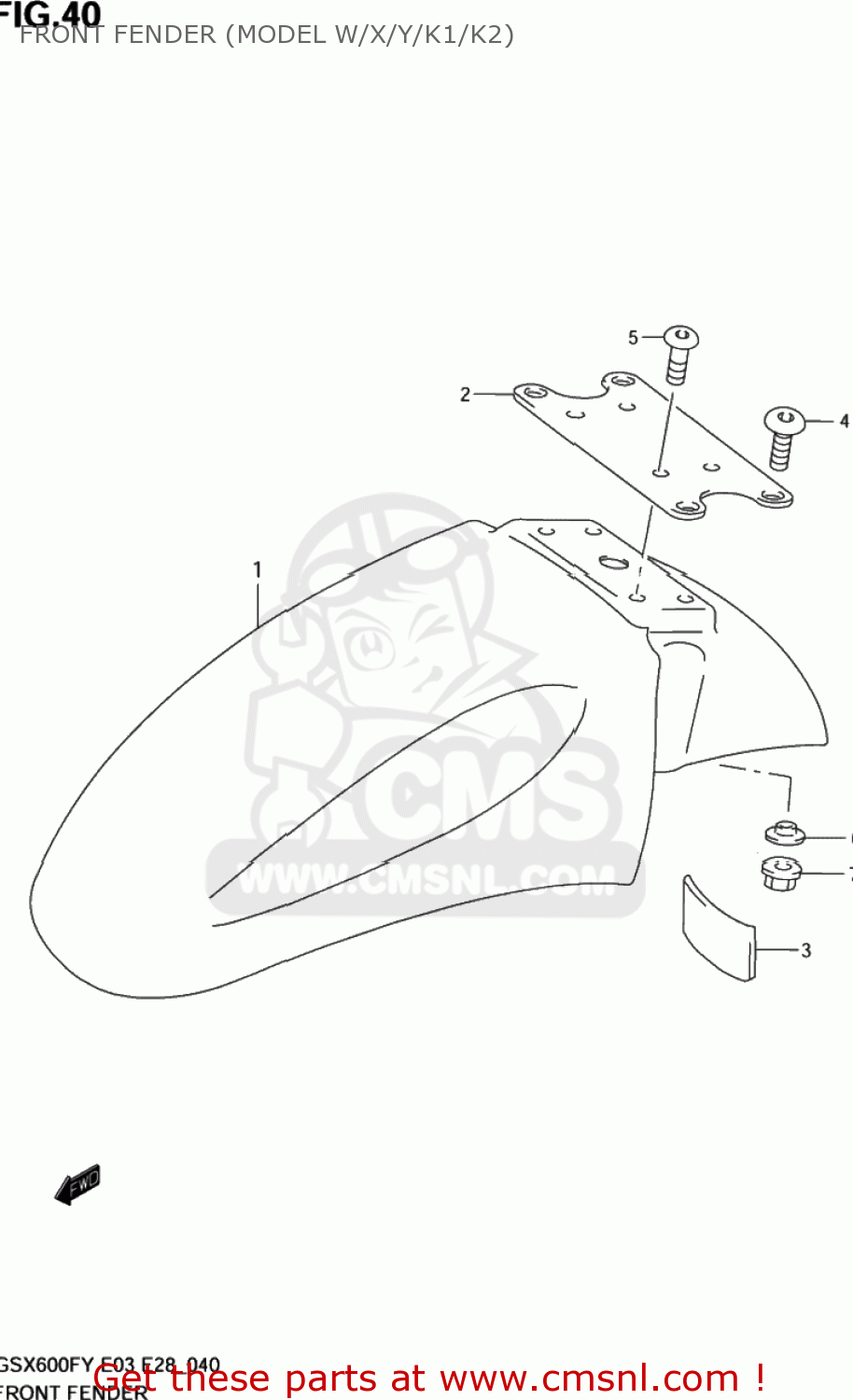

Front fender (model w/x/y/k1/k2) diagram GSX600F KATANA 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311108F0028V
ref: 1-1

FENDER,FR

€ 142.50

1-2

5311108F00Y4E
ref: 1-2

FENDER,FR

€ 144.00

1-3

5311108F0033J
ref: 1-3

FENDER,FR

€ 61.00

1-4

5311108F00Y7E
ref: 1-4

FENDER,FR

€ 61.00

1-5

5311108F00Y7M
ref: 1-5

FENDER,FRONT

€ 61.00

1-6

5311108F00Y9H
ref: 1-6

FENDER,FR

€ 136.00

1-7

5311108F00YC2
ref: 1-7

FENDER,FR

€ 136.00

5311426D00
ref: 2

BRACE,FR FENDER

€ 26.50

5314620C00
ref: 3

CUSHION

€ 4.50

0913906027
ref: 4

SCREW(6X12)

€ 3.00

5-1

0913905042
ref: 5-1

SCREW(5X16)

€ 2.50

5-2

0913905032
ref: 5-2

SCREW(5X18)

€ 2.50

0916905010
ref: 6

WASHER

€ 3.00

7-1

0915905026
ref: 7-1
09159-05043

NUT

€ 2.50

7-2

0915905043
ref: 7-2

NUT

€ 2.50
