AIR CLEANER
GSX750F KATANA 1995 (S) USA (E03)

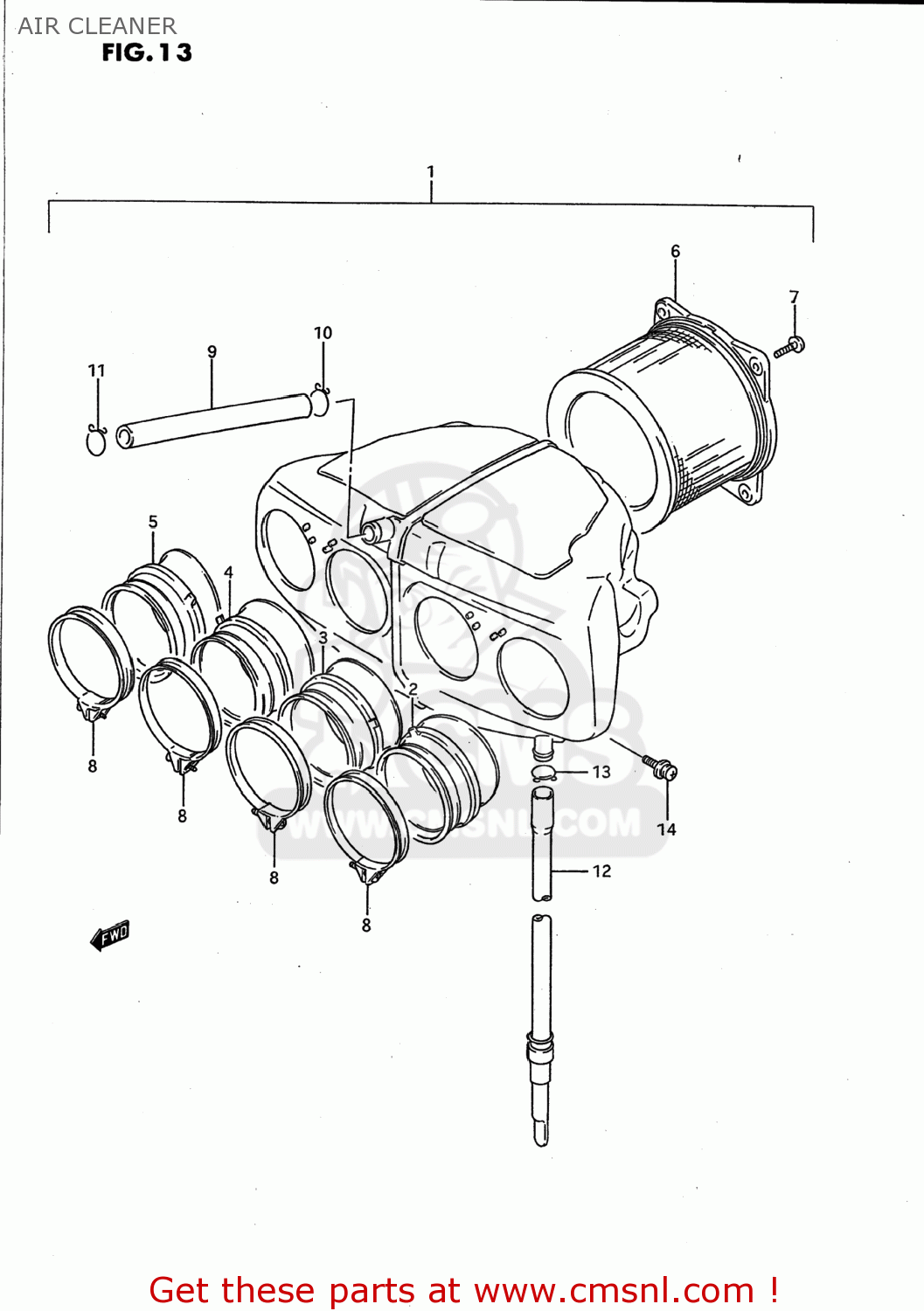

Air cleaner diagram GSX750F KATANA 1995 (S) USA (E03)
AIR CLEANER GSX750F KATANA 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370020C00
ref: 1-1
13700-20C03
CLEANER ASSEMBLY,AIR
€ 233.50
1-2
1370020C02
ref: 1-2
13700-20C03
CLEANER ASSEMBLY,AIR
€ 233.50
2-1
1388120C00
ref: 2-1
13881-20C01
TUBE,AIR CLEANER OUTLET
€ 24.50
2-2
1388120C01
ref: 2-2
TUBE,OUTLET,L
€ 24.50
3-1
1388220C00
ref: 3-1
13882-20C01
TUBE,AIR CLEANER OUTLET
€ 28.50
3-2
1388220C01
ref: 3-2
TUBE,OUTLET ML
€ 28.50
4-1
1388320C00
ref: 4-1
13883-20C01
TUBE,AIR CLEANER OUTLET
€ 22.50
4-2
1388320C01
ref: 4-2
TUBE,OUTLET MR
€ 22.50
5-1
1388420C00
ref: 5-1
13884-20C01
TUBE
€ 24.50
5-2
1388420C01
ref: 5-2
TUBE,OUTLET,R
€ 24.50
6
1378020C00
ref: 6
FILTER ASSY
€ 43.50
7-1
0214205124
ref: 7-1
02142-0512A
SCREW, FRONT & REAR
€ 1.50
7-2
0214205123
ref: 7-2
02142-0512A
SCREW 5X12
€ 1.50
8-1
1382620C00
ref: 8-1
09402-66208
CLAMP
€ 6.50
8-2
0940266208
ref: 8-2
CLAMP
€ 6.50
9
1385319C00
ref: 9
TUBE,BREATHER
€ 14.00
10-1
1382837300
ref: 10-1
09401-16401
CLIP
€ 3.00
10-2
0940116401
ref: 10-2
CLIP
€ 3.00
11
0940114301
ref: 11
CLIP
€ 2.00
12-1
1387011477
ref: 12-1
13870-11458
DRAIN TUBE
€ 13.50
12-2
1387011458
ref: 12-2
TUBE,DRAIN
€ 13.50
13-1
1382400A00
ref: 13-1
09401-13409
CLIP
€ 2.50
13-2
0940113409
ref: 13-2
CLIP
€ 2.50
14-1
0211276168
ref: 14-1
02112-7616A
SCREW
€ 2.00
14-2
0211276163
ref: 14-2
02112-7616A
SCREW
€ 2.00
