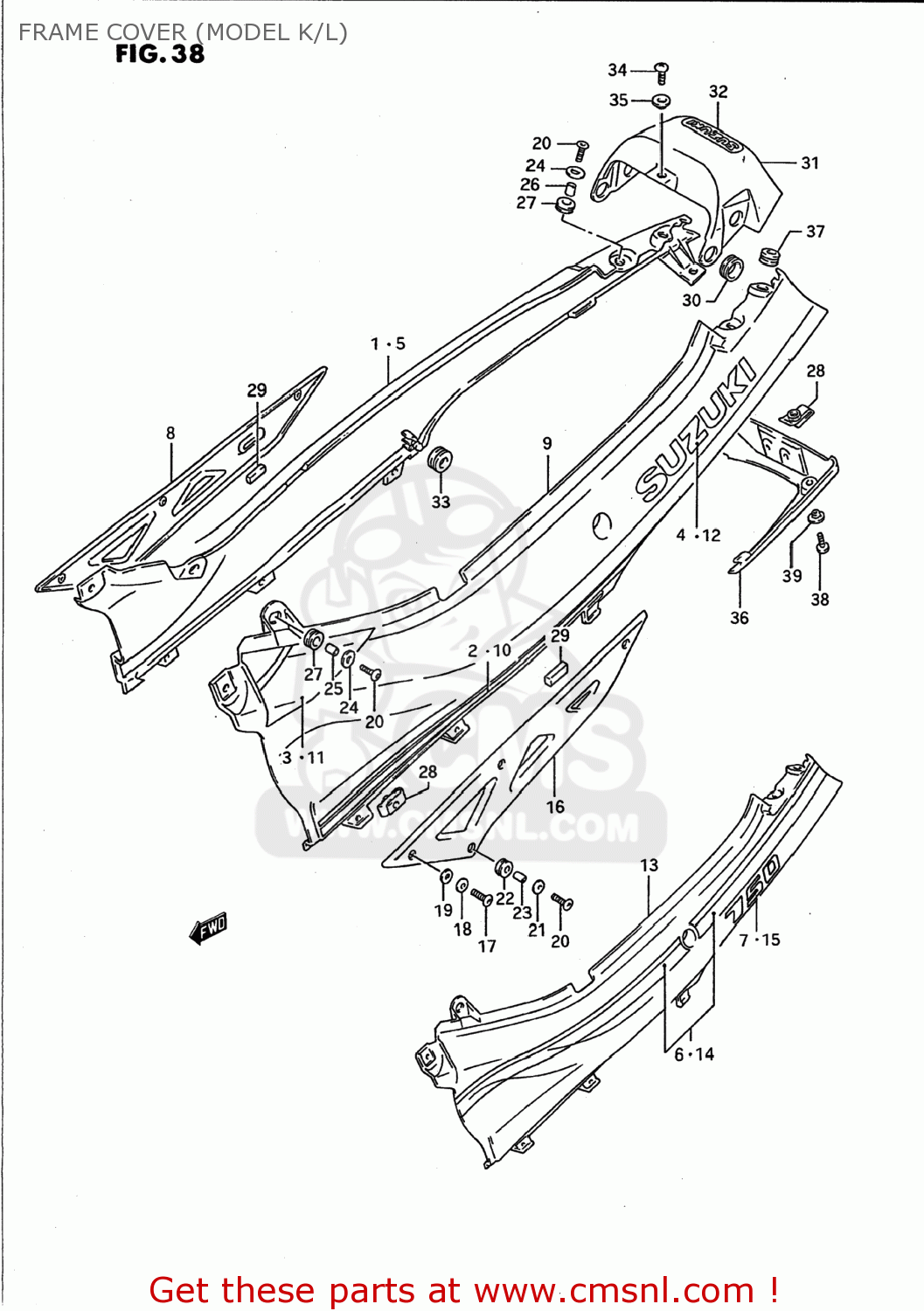

FRAME COVER (MODEL K/L)

ref

part #

description

quantity

1-1

4711020C1024V
ref: 1-1
47111-20C01

COVER,FRAME,RIGHT

€ 243.00

1-2

4711020C1124V
ref: 1-2
47111-20C01

COVER,FRAME,RIGHT

€ 243.00

1-3

4711020C100FP
ref: 1-3
47111-20C01

COVER,FRAME,RIGHT

€ 243.00

1-4

4711020C110FP
ref: 1-4
47111-20C01

COVER,FRAME,RIGHT

€ 243.00

2-1

6813520C003DB
ref: 2-1

TAPE,FRAME COVER STRIPE

€ 18.50

2-2

6813520C0069L
ref: 2-2

TAPE,FRAME COVER STRIPE

€ 15.50

3-1

6813620C003CW
ref: 3-1

TAPE,FRAME COVER,RIGHT

€ 14.00

3-2

6813620C003CY
ref: 3-2

TAPE,FRAME COVER,RIGHT

€ 12.00

4-1

6811143400742
ref: 4-1
68111-43400-13L

EMBLEM

€ 11.50

4-2

6811143400019
ref: 4-2

EMBLEM

€ 9.50

5-1

4711020C403CH
ref: 5-1

COVER COMP,FRAME,RIGHT

€ 0.00

5-2

4711020C403WC
ref: 5-2
47111-20C01

COVER COMP,FRAME,RIGHT

€ 243.00

6-1

6813020C003CG
ref: 6-1

TAPE SET,FRAME COVER,RIGHT

€ 44.00

6-2

6813020C003VV
ref: 6-2

TAPE SET,FRAME COVER,RIGHT

€ 40.00

7-1

6813120C30742
ref: 7-1

EMBLEM,FRAME COVER

€ 7.50

7-2

6813120C3033J
ref: 7-2

EMBLEM,FRAME COVER

€ 0.00

8

4713120C00
ref: 8

COVER,FRAME LWR,R

€ 72.00

9-1

4721020C1024V
ref: 9-1
47211-20C01

COVER COMP,FRAME,LEFT

€ 243.00

9-2

4721020C1124V
ref: 9-2
47211-20C01

COVER,FRAME,LEFT

€ 243.00

9-3

4721020C100FP
ref: 9-3
47211-20C01

COVER,FRAME,LEFT (SILVER)

€ 243.00

9-4

4721020C110FP
ref: 9-4
47211-20C01

COVER,FRAME,LEFT

€ 243.00

10-1

6814520C003DB
ref: 10-1

TAPE,FRAME COVER STRIPE

€ 17.00

10-2

6814520C0069L
ref: 10-2

TAPE,FRAME COVER STRIPE

€ 16.50

11-1

6814620C003CW
ref: 11-1

TAPE,FRAME COVER,LEFT

€ 13.50

11-2

6814620C003CY
ref: 11-2

TAPE,FRAME COVER,LEFT

€ 12.00

12-1

6811143400742
ref: 12-1
68111-43400-13L

EMBLEM

€ 11.50

12-2

6811143400019
ref: 12-2

EMBLEM

€ 9.50

13-1

4721020C403CH
ref: 13-1
47211-20C01

COVER COMP,FRAME,LEFT

€ 243.00

13-2

4721020C403WC
ref: 13-2

COVER COMP,FRAME,LEFT

€ 243.00

14-1

6814020C003CG
ref: 14-1

TAPE SET,FRAME COVER,LEFT

€ 47.00

14-2

6814020C003VV
ref: 14-2

TAPE SET,FRAME COVER,LEFT

€ 40.50

15-1

6813120C30742
ref: 15-1

EMBLEM,FRAME COVER

€ 7.50

15-2

6813120C3033J
ref: 15-2

EMBLEM,FRAME COVER

€ 0.00

16

4723120C00
ref: 16

COVER,FRAME LWR,L

€ 66.50

17

0912006005
ref: 17

SCREW(6X16)

€ 2.50

18

0916006003
ref: 18
09160-06129

WASHER (6.7X16X1.8)

€ 2.00

19

0916105016
ref: 19
09320-06501

WASHER (5.5X16X1)

€ 2.00

20

0913906030
ref: 20

SCREW(6X16)

€ 3.50

21

0916006054
ref: 21

WASHER(6.5X22X1.6)

€ 2.00

22

0932008013
ref: 22

CUSHION

€ 4.00

23

0918006092
ref: 23

SPACER(6.2X8.3X6.1)

€ 4.00

24

0916006057
ref: 24
09160-06109

WASHER

€ 2.00

25

0918006011
ref: 25
09180-06263

SPACER (6.1X9X9)

€ 2.00

26

0918006038
ref: 26

SPACER(6.1X9X7.5)

€ 2.00

27

0932009016
ref: 27

CUSHION

€ 2.50

28

4715319C01
ref: 28

PLATE,FRAME COVER

€ 4.00

29

4716120C00
ref: 29

CUSHION,FRAME COVER LWR

€ 3.00

30

0930816006
ref: 30

GROMMET

€ 3.00

31-1

4731020C0024V
ref: 31-1
47311-20C01

COVER,FRAME,CENTER

€ 36.00

31-2

4731020C0124V
ref: 31-2
47311-20C01

COVER,FRAME,CENTER

€ 36.00

31-3

4731020C000FP
ref: 31-3
47311-20C01

COVER,FRAME,CENTER

€ 36.00

31-4

4731020C010FP
ref: 31-4
47311-20C01

COVER,FRAME,CENTER

€ 36.00

31-5

4731020C0120H
ref: 31-5

COVER COMP,FRAME,CENTER

€ 36.50

31-6

4731020C0133J
ref: 31-6

COVER COMP,FRAME,CENTER

€ 44.50

32-1

6827134A00742
ref: 32-1
68271-34A00-13L

EMBLEM

€ 3.50

32-2

6827134A00019
ref: 32-2
68271-34A00-20G

EMBLEM

€ 7.00

33

0932008018
ref: 33

CUSHION

€ 4.00

34

0214206103
ref: 34
02142-0610A

SCREW 6X10

€ 2.00

35

0916906037
ref: 35

WASHER

€ 6.50

36

4732120C00
ref: 36

COVER,FRAME RR

€ 23.00

37

9443326B00
ref: 37

CUSHION

€ 4.00

38

0214206164
ref: 38
02142-0616A

SCREW

€ 2.50

39

0916906037
ref: 39

WASHER

€ 6.50
