GEAR SHIFTING
GSX750F KATANA 1995 (S) USA (E03)

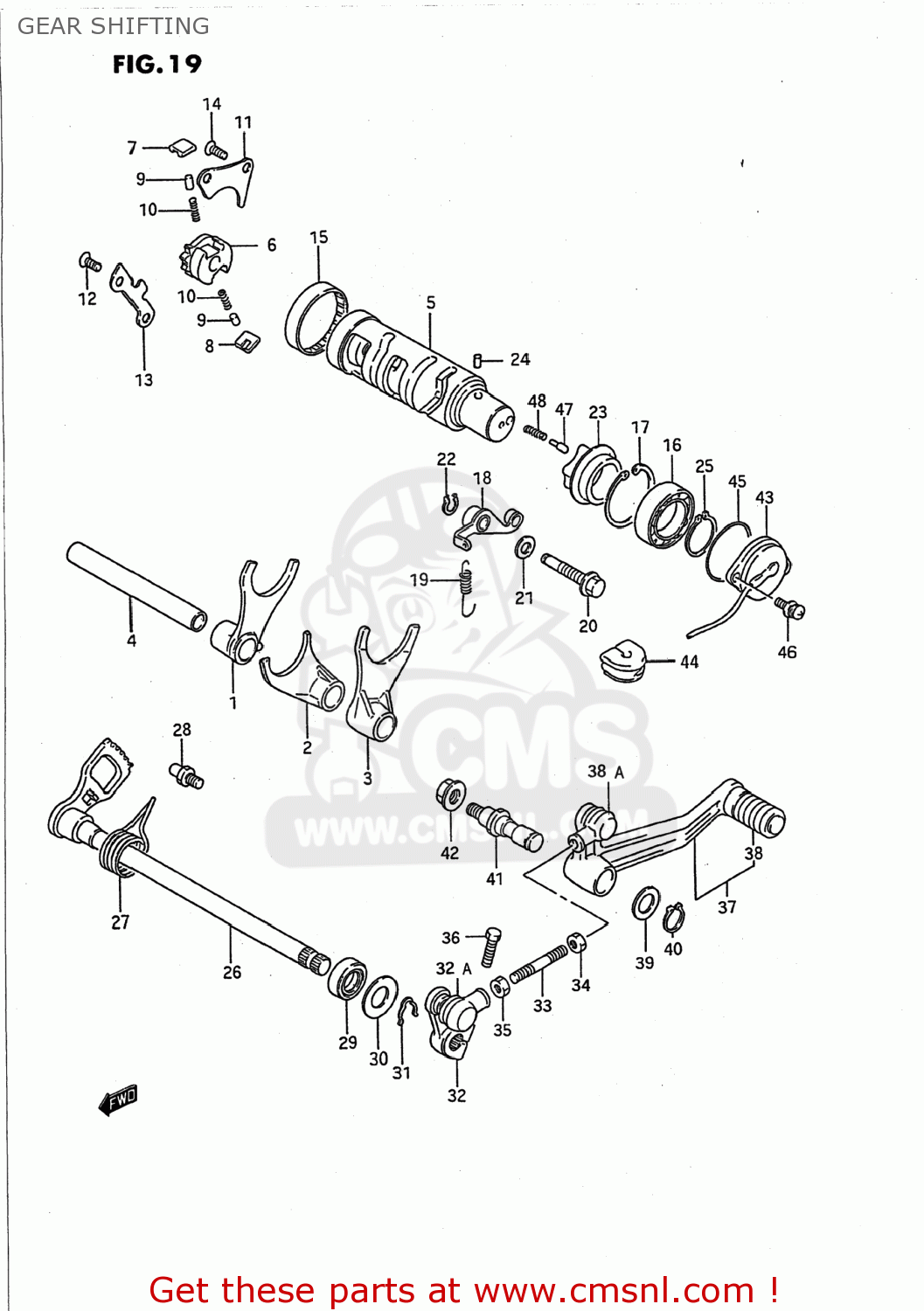

Gear shifting diagram GSX750F KATANA 1995 (S) USA (E03)
GEAR SHIFTING GSX750F KATANA 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521127A00
ref: 1
25211-27A12
FORK,GEAR SHIFT NO.1
€ 102.50
2
2522127A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 83.50
3
2523127A00
ref: 3
FORK,GEAR SHIFT NO.3
€ 84.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5
2531027A02
ref: 5
25310-27A03
CAM,GEAR SHIFT
€ 196.50
6
2532231301
ref: 6
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533131301
ref: 11
25331-31310
LIFTER,GEAR SHIFT PAWL
€ 7.00
12-1
0212206128
ref: 12-1
02122-06127
SCREW
€ 3.00
12-2
0212206123
ref: 12-2
02122-0612A
SCREW
€ 3.00
13
2534127A00
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14-1
0212206128
ref: 14-1
02122-06127
SCREW
€ 3.00
14-2
0212206123
ref: 14-2
02122-0612A
SCREW
€ 3.00
15
0926343001
ref: 15
BEARING(43X49X12)
€ 30.00
16
0811369050
ref: 16
BEARING
€ 36.00
17
0833141426
ref: 17
08331-4142A
CIRCLIP
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
€ 13.00
19
0944309031
ref: 19
SPRING
€ 4.00
20
2535327A00
ref: 20
SHAFT,GEAR SHIFT CAM STOPPER
€ 5.50
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
€ 2.00
22
0833131086
ref: 22
08331-3108A
CIRCLIP
€ 2.00
23
2538138400
ref: 23
PLATE,STOPPER
€ 22.00
24-1
0621104063
ref: 24-1
04221-04069
PIN 4X6
€ 2.00
24-2
0422104069
ref: 24-2
PIN
€ 2.00
25
0833131256
ref: 25
08331-3125A
CIRCLIP
€ 2.00
26-1
2551019C00
ref: 26-1
25510-19C01
SHAFT,GEAR SHIFT
€ 91.50
26-2
2551019C01
ref: 26-2
SHAFT,GEAR SHIFT
€ 91.50
27
0944426017
ref: 27
SPRING
€ 5.00
28
2567101000
ref: 28
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
09285-12006
OIL SEAL
€ 7.00
30
0916012020
ref: 30
09160-12089
WASHER (12.5X27X1.6)
€ 2.00
31-1
0938412001
ref: 31-1
08331-3112A
SPRING,RETAINER
€ 2.00
31-2
0833131126
ref: 31-2
08331-3112A
CIRCLIP,12 MM
€ 2.00
32
2552019C02
ref: 32
ARM,GEAR SHIFT LINK
€ 53.50
32A
2552647000
ref: 32A
COVER,DUST
€ 3.50
33-1
2552527A10
ref: 33-1
25525-27A30
ROD,GEAR SHIFT LINK
€ 6.00
33-2
2552527A20
ref: 33-2
25525-27A30
ROD,GEAR SHIFT LINK
€ 6.00
33-3
2552527A30
ref: 33-3
ROD,GEAR SHIFT LINK
€ 6.00
34
0914006011
ref: 34
NUT
€ 1.50
35
0831000067
ref: 35
NUT
€ 2.50
36-1
0110706257
ref: 36-1
01500-06257
BOLT
€ 2.00
36-2
0150006257
ref: 36-2
BOLT
€ 2.00
37-1
2560019C03
ref: 37-1
25600-19C04
LEVER ASSEMBLY,GEAR SHIFTING
€ 81.00
37-2
2560019C04
ref: 37-2
LEVER ASSY,GEAR SHIFT
€ 81.00
38
2565220C00
ref: 38
RUBBER,GEAR SHIFT PEDAL
€ 8.00
38A
2552647000
ref: 38A
COVER,DUST
€ 3.50
39
0916012011
ref: 39
WASHER(12.5X20X1)
€ 1.50
40
0833131126
ref: 40
08331-3112A
CIRCLIP,12 MM
€ 2.00
41
2561720A00
ref: 41
SHAFT,GEAR SHIFT LEVER
€ 37.00
42-1
0831616108
ref: 42-1
08316-10107
NUT
€ 2.00
42-2
0831610103
ref: 42-2
08316-1010B
NUT
€ 2.00
43
3772048B00
ref: 43
TERMINAL BASE ASSY,NEUTRAL
€ 57.00
44
3388527A01
ref: 44
GROMMET,LEADWIRE
€ 20.50
45-1
0928036001
ref: 45-1
O RING(D:2.4,ID:36.5)
€ 4.50
45-2
0928035006
ref: 45-2
O RING(D:2.4,ID:35.5)
€ 4.00
46-1
0913805003
ref: 46-1
09138-05011
SCREW
€ 1.50
46-2
0211275163
ref: 46-2
02112-7516A
SCREW
€ 2.50
47
0920905011
ref: 47
PIN(5X15.5)
€ 2.00
48
0944004010
ref: 48
SPRING
€ 1.50
