prices are in EUR
ref
part #
description
quantity
1-1

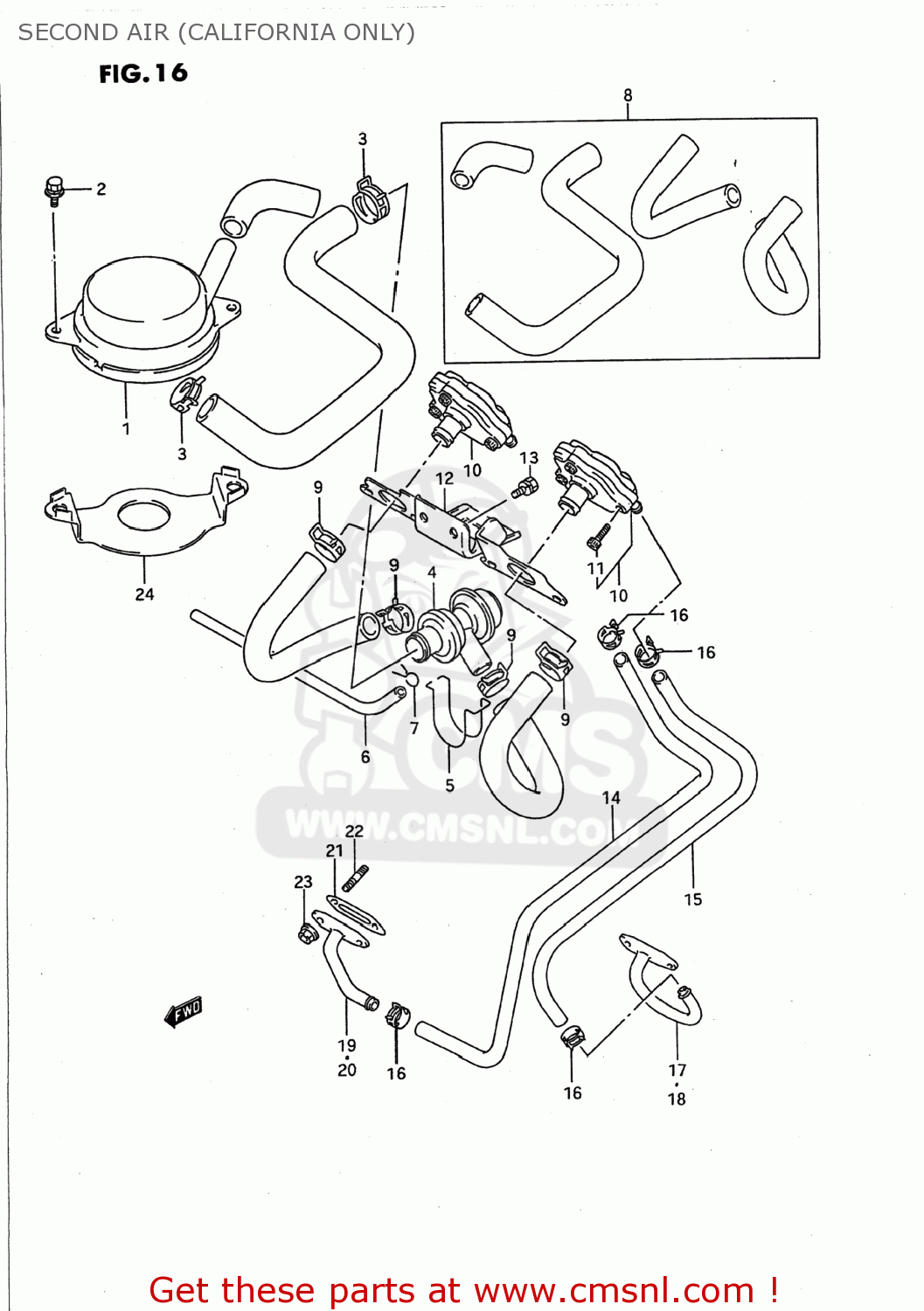

CLEANER ASSEMBLY,SECOND AIR
1-2
CLEANER ASSEMBLY,SECOND AIR
1-3
CLEANER ASSEMBLY,SECOND AIR
2-3
BOLT
4
VALVE ASSY,AIR SWITCHING
6
HOSE(4.5X8.5X600)
8
HOSE SET,SECOND AIR NO.2
10
VALVE ASSY,2ND AIR REED
11-2
BOLT
13-2
BOLT
14-1
HOSE,SECOND AIR NO.1,OUTLET
14-2
HOSE,SECOND AIR NO.1,INLET
15
HOSE,SECOND AIR NO.1,INLET
18
PIPE,2ND AIR NO.4
21-1
GASKET,SECOND AIR PIPE (NAS)
21-2
GASKET,SECOND AIR PIPE (NAS)
22-2
STUD BOLT
23-1
NUT 6MM
23-2
NUT
24
HOLDER,SECOND AIR CLEANER
