COWLING BODY (MODEL S)

GSX750F KATANA 1995 (S) USA (E03)

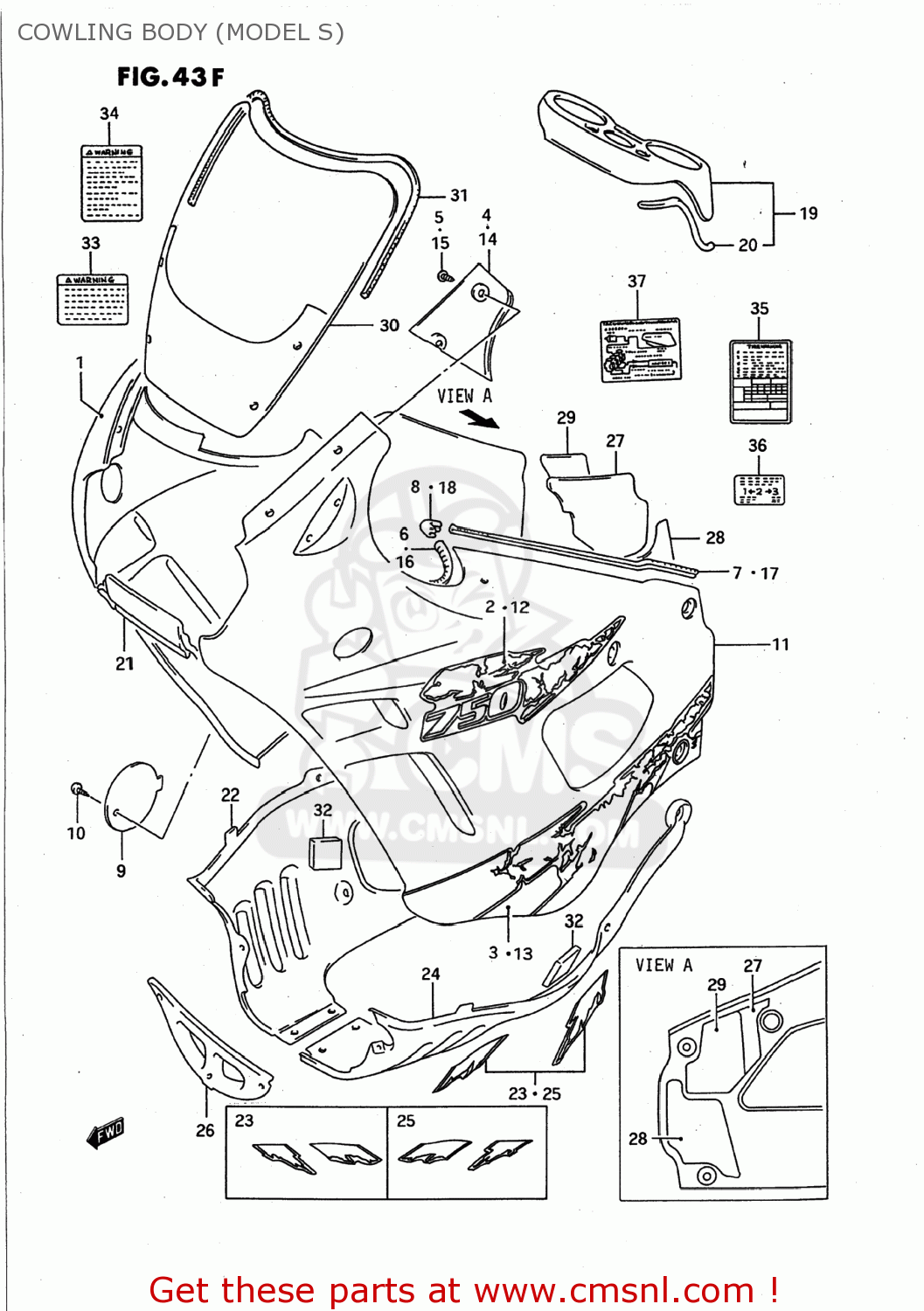

Cowling body (model s) diagram GSX750F KATANA 1995 (S) USA (E03)

COWLING BODY (MODEL S) GSX750F KATANA 1995 (S) USA (E03)

COWLING BODY (MODEL S) GSX750F KATANA 1995 (S) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9440121CE019A
ref: 1-1
94401-21CE1-19A

COVER ASSEMBLY,COWLING,RIGHT

€ 619.00

1-2

9440121CE033J
ref: 1-2
94401-21CE1-33J

COVER ASSEMBLY,COWLING,RIGHT

€ 619.00

2-1

6868521C00D4V
ref: 2-1

TAPE,BODY COWL SIDE UPR,R

€ 47.50

2-2

6868521C00D4U
ref: 2-2

TAPE,BODY COWL SIDE UPR,R

€ 47.50

3-1

6868621C00D4Y
ref: 3-1

TAPE,BODY COWL SIDE,R

€ 88.50

3-2

6868621C00D4W
ref: 3-2

TAPE,BODY COWL SIDE,R

€ 88.50

4-1

9443319C0119A
ref: 4-1

COVER,COWLING METER SIDE,R

€ 22.00

4-2

9443319C0133J
ref: 4-2

COVER,COWLING METER SIDE,R

€ 21.50

5

0354104103
ref: 5
03541-0410A

SCREW

€ 1.50

6

9463149310
ref: 6

MOLD,COWLING

€ 14.00

7

9463519C00
ref: 7

MOLDING

€ 6.00

8

9443819C00
ref: 8

JOINT,MOLDING END

€ 9.50

9-1

9443519C0119A
ref: 9-1

LID,OIL

€ 23.00

9-2

9443519C0133J
ref: 9-2

LID,OIL

€ 20.50

10

0913906030
ref: 10

SCREW(6X16)

€ 3.50

11-1

9440221CE019A
ref: 11-1
94402-21CE1-19A

COVER ASSEMBLY,COWLING,LEFT

€ 619.00

11-2

9440221CE033J
ref: 11-2
94402-21CE1-33J

COVER ASSEMBLY,COWLING,LEFT

€ 619.00

11-3

9440221CG019A
ref: 11-3
94402-21CG1-19A

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

11-4

9440221CG033J
ref: 11-4
94402-21CG1-33J

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

12-1

6869521C00D4V
ref: 12-1

TAPE,BODY COWL SIDE UPR,L

€ 47.50

12-2

6869521C00D4U
ref: 12-2

TAPE,BODY COWL SIDE UPR,L

€ 47.50

13-1

6869621C00D4Y
ref: 13-1

TAPE,BODY COWL SIDE,L

€ 88.50

13-2

6869621C00D4W
ref: 13-2

TAPE,BODY COWLING SIDE,LEFT

€ 106.50

13-3

6869621C10D4Y
ref: 13-3

TAPE,BODY COWLING SIDE,LEFT

€ 0.00

13-3

6869621C10D4Y
ref: 13-3

TAPE,BODY COWLING SIDE,LEFT

€ 0.00

13-4

6869621C10D4W
ref: 13-4

TAPE,BODY COWLING SIDE,LEFT

€ 65.00

13-4

6869621C10D4W
ref: 13-4

TAPE,BODY COWLING SIDE,LEFT

€ 65.00

14-1

9444319C0119A
ref: 14-1

COVER,COWLING METER SIDE,L

€ 23.50

14-2

9444319C0133J
ref: 14-2

COVER,COWLING METER SIDE,L

€ 25.50

15

0354104103
ref: 15
03541-0410A

SCREW

€ 1.50

16

9463149310
ref: 16

MOLD,COWLING

€ 14.00

17

9463519C00
ref: 17

MOLDING

€ 6.00

18

9443819C00
ref: 18

JOINT,MOLDING END

€ 9.50

19

9442020C02
ref: 19

COVER,METER

€ 39.00

20

9463520C00
ref: 20

MOLDING,METER COVER

€ 9.00

21-1

9442119C0119A
ref: 21-1

PANEL,COWLING CTR

€ 30.00

21-2

9442119C0133J
ref: 21-2

PANEL,COWLING CTR

€ 27.00

22-1

9447021C0033J
ref: 22-1

COVER,COWLING UNDER,R

€ 194.50

22-2

9447021C001TU
ref: 22-2

COVER,COWLING,UNDER,RIGHT(

€ 232.00

23-1

6818021C00D4Y
ref: 23-1

TAPE SET,COWL UNDER,R

€ 33.50

23-2

6818021C00D4W
ref: 23-2

TAPE SET,COWL UNDER,R

€ 33.50

24-1

9448021C0033J
ref: 24-1

COVER,COWLING UNDER,L

€ 194.50

24-2

9448021C001TU
ref: 24-2

COVER,COWLING UNDER,L(PURPLE)

€ 194.50

25-1

6819021C00D4Y
ref: 25-1

TAPE SET,COWLING,UNDER

€ 33.50

25-2

6819021C00D4W
ref: 25-2

TAPE SET,COWLING,UNDER

€ 33.50

26

9447519C01
ref: 26

COVER,COWLING UNDER FR

€ 23.50

27-1

9457320C00
ref: 27-1

BALANCER SHEET,COWLING,R

€ 22.50

27-2

9458320C00
ref: 27-2

BALANCER SHEET,COWLING,L

€ 16.00

28-1

9457420C00
ref: 28-1

SHEET,COWLING BALANCER,R

€ 19.00

28-2

9458420C00
ref: 28-2

SHEET,COWLING BALANCER

€ 24.50

28-3

9458420C10
ref: 28-3

SHEET,COWLING BALANCER

€ 0.00

29-1

9457620C00
ref: 29-1

CUSHION,COWLING,R

€ 6.00

29-2

9458620C00
ref: 29-2

CUSHION,COWLING,L

€ 6.00

30

9461020C60
ref: 30

WINDSCREEN

€ 236.50

31

9463118D01
ref: 31

MOLDING,WINDSCREEN

€ 12.50

32

9447548B10
ref: 32
94915-44E00

CUSHION,UNDER COWLING

€ 6.50

33

6831940C00
ref: 33
68319-33E01

LABEL

€ 8.00

34

6861248B00
ref: 34
68922-14F00

LABEL (WARNING SCREEN)

€ 6.50

35

6833220C10
ref: 35
68332-20C11

LABEL (TIRE AIR PRESSURE)

€ 4.00

36

6834120C00
ref: 36

LABEL (REAR SHOCK ABSORBER)

€ 2.50

37

6838717C00
ref: 37

LABEL (VACUUM HOSE ROUTING)

€ 0.00
