GSX750F KATANA 1995 (S) USA (E03)

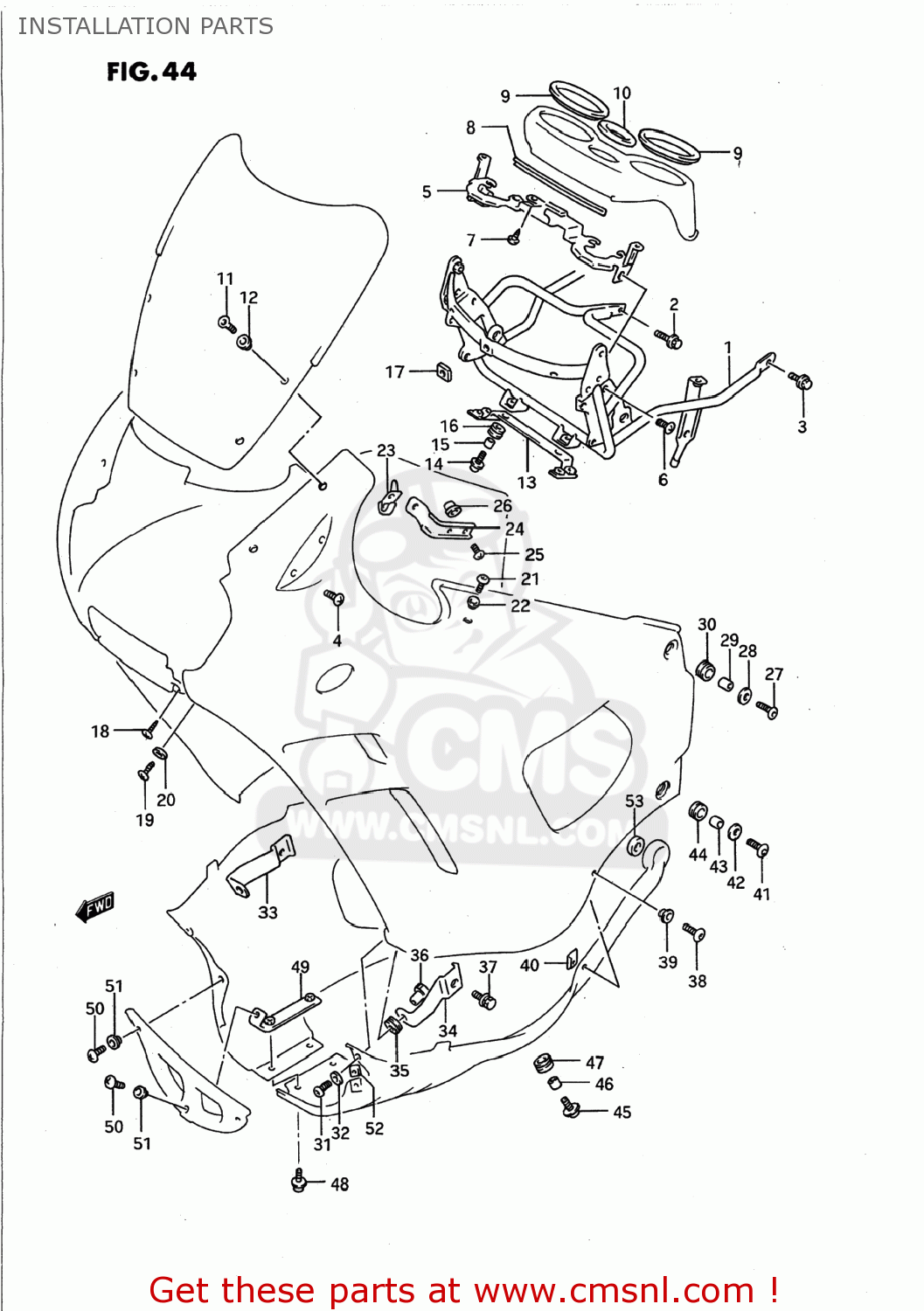

Installation parts diagram GSX750F KATANA 1995 (S) USA (E03)
INSTALLATION PARTS GSX750F KATANA 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9451020C00
ref: 1-1
94510-20C20
BRACE,COWLING
€ 128.50
1-2
9451020C10
ref: 1-2
94510-20C30
BRACE,COWLING
€ 145.50
1-2
9451020C10
ref: 1-2
94510-20C30
BRACE,COWLING
€ 145.50
1-3
9451020C20
ref: 1-3
BRACE,COWLING
€ 128.50
1-4
9451020C30
ref: 1-4
BRACE,COWLING
€ 145.50
1-4
9451020C30
ref: 1-4
BRACE,COWLING
€ 145.50
2-1
0151708205
ref: 2-1
01550-0820A
BOLT
€ 3.00
2-2
0155008207
ref: 2-2
BOLT
€ 3.00
2-3
0910308266
ref: 2-3
BOLT(8X20)
€ 2.50
3-1
0151706125
ref: 3-1
01550-0612A
BOLT 6X12
€ 2.50
3-2
0155006127
ref: 3-2
BOLT
€ 2.50
3-3
0155006123
ref: 3-3
01550-0612A
BOLT
€ 2.50
4-1
0214206127
ref: 4-1
SCREW 6X12
€ 1.50
4-2
0214206123
ref: 4-2
02142-0612A
SCREW 6X12
€ 2.00
5
9452020C00
ref: 5
PLATE,METER FITING
€ 30.50
6-1
0214206125
ref: 6-1
02142-0612A
SCREW 6X12
€ 2.00
6-2
0214206127
ref: 6-2
SCREW 6X12
€ 1.50
6-3
0214206123
ref: 6-3
02142-0612A
SCREW 6X12
€ 2.00
7-1
0354105085
ref: 7-1
03541-0508A
SCREW 5X8
€ 2.00
7-2
0354105083
ref: 7-2
03541-0508A
SCREW 5X8
€ 2.00
8
9452719C00
ref: 8
MOLDING,METER COVER
€ 3.00
9
9442620C00
ref: 9
CUSHION,SPEEDOMETER
€ 5.50
10
9442720C00
ref: 10
CUSHION,FUEL METER
€ 4.00
11
0913905022
ref: 11
09139-05042
SCREW
€ 2.50
12
0916105010
ref: 12
WASHER(5.2X11X1)
€ 2.00
13
9446019C00
ref: 13
PLATE,COWL CTR PANEL
€ 12.00
14
0913606081
ref: 14
SCREW(6X20)
€ 3.00
15
0918006167
ref: 15
09180-06286
SPACER (6,8X10X9.4)
€ 2.50
16
0932010015
ref: 16
CUSHION
€ 2.50
17
9463819C00
ref: 17
63191-25C00
CUSHION,SCREEN
€ 2.50
18-1
0214205127
ref: 18-1
SCREW
€ 1.50
18-2
0214205123
ref: 18-2
02142-0512A
SCREW 5X12
€ 1.50
19
0913906029
ref: 19
SCREW(6X25)
€ 5.00
20
0916006036
ref: 20
WASHER(6.5X18X1.5)
€ 1.50
21
0913906030
ref: 21
SCREW(6X16)
€ 3.50
22
0916106021
ref: 22
WASHER(6.3X16X1.5)
€ 2.50
23
9456019C00
ref: 23
BRACKET,COWLING UPR,R
€ 40.50
24
9457019C00
ref: 24
BRACKET,COWLING UPR,L
€ 40.50
25-1
0912506055
ref: 25-1
SCREW(6X25)
€ 3.00
25-2
0912506038
ref: 25-2
09125-06055
SCREW
€ 3.00
25-3
0214206253
ref: 25-3
02142-0625A
SCREW
€ 1.50
26
9457319C00
ref: 26
NUT,COWLING SIDE BRKT
€ 8.00
27
0913906029
ref: 27
SCREW(6X25)
€ 5.00
28
0916006036
ref: 28
WASHER(6.5X18X1.5)
€ 1.50
29
0918006011
ref: 29
09180-06263
SPACER (6.1X9X9)
€ 2.00
30
0932009016
ref: 30
CUSHION
€ 2.50
31
0913906042
ref: 31
SCREW(6X30)
€ 7.50
32
0916006036
ref: 32
WASHER(6.5X18X1.5)
€ 1.50
33
9453119C00
ref: 33
BRACKET,COWLING LWR,R
€ 8.00
34
9453219C00
ref: 34
BRACKET,COWLING LWR,L
€ 6.00
35
0932010015
ref: 35
CUSHION
€ 2.50
36
9459019C00
ref: 36
NUT,COWLING,FR
€ 8.00
37-1
0113706165
ref: 37-1
01570-0616A
BOLT
€ 2.50
37-2
0157006167
ref: 37-2
BOLT
€ 2.50
37-3
0157006163
ref: 37-3
01570-0616A
BOLT
€ 2.50
38
0913905025
ref: 38
SCREW(5X14)
€ 2.00
39
0916105017
ref: 39
WASHER(5.2X14X1.5)
€ 3.00
40
9448432B00
ref: 40
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
41
0913906029
ref: 41
SCREW(6X25)
€ 5.00
42
0916006036
ref: 42
WASHER(6.5X18X1.5)
€ 1.50
43
0918006116
ref: 43
SPACER(6.1X8X14.5)
€ 2.00
44
0932009016
ref: 44
CUSHION
€ 2.50
45
0913606081
ref: 45
SCREW(6X20)
€ 3.00
46
0918006011
ref: 46
09180-06263
SPACER (6.1X9X9)
€ 2.00
47
0932009016
ref: 47
CUSHION
€ 2.50
48-1
0214215165
ref: 48-1
02142-0516A
SCREW, LOWER
€ 2.50
48-2
0214215167
ref: 48-2
02142-05167
SCREW,LOWER
€ 1.50
48-3
0214205163
ref: 48-3
02142-0516A
SCREW
€ 2.50
49
9458019C00
ref: 49
BRACKET,FR UNDER COWL
€ 6.50
50-1
0214205164
ref: 50-1
02142-0516A
SCREW
€ 2.50
50-2
0214205167
ref: 50-2
SCREW
€ 1.50
50-3
0214205163
ref: 50-3
02142-0516A
SCREW
€ 2.50
51
0916105017
ref: 51
WASHER(5.2X14X1.5)
€ 3.00
52
9448432B00
ref: 52
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
53
9463920C00
ref: 53
CUSHION,UNDER COWLING RR
€ 2.50
