CAM SHAFT - VALVE
GSX750F KATANA 2001 (K1) USA (E03)

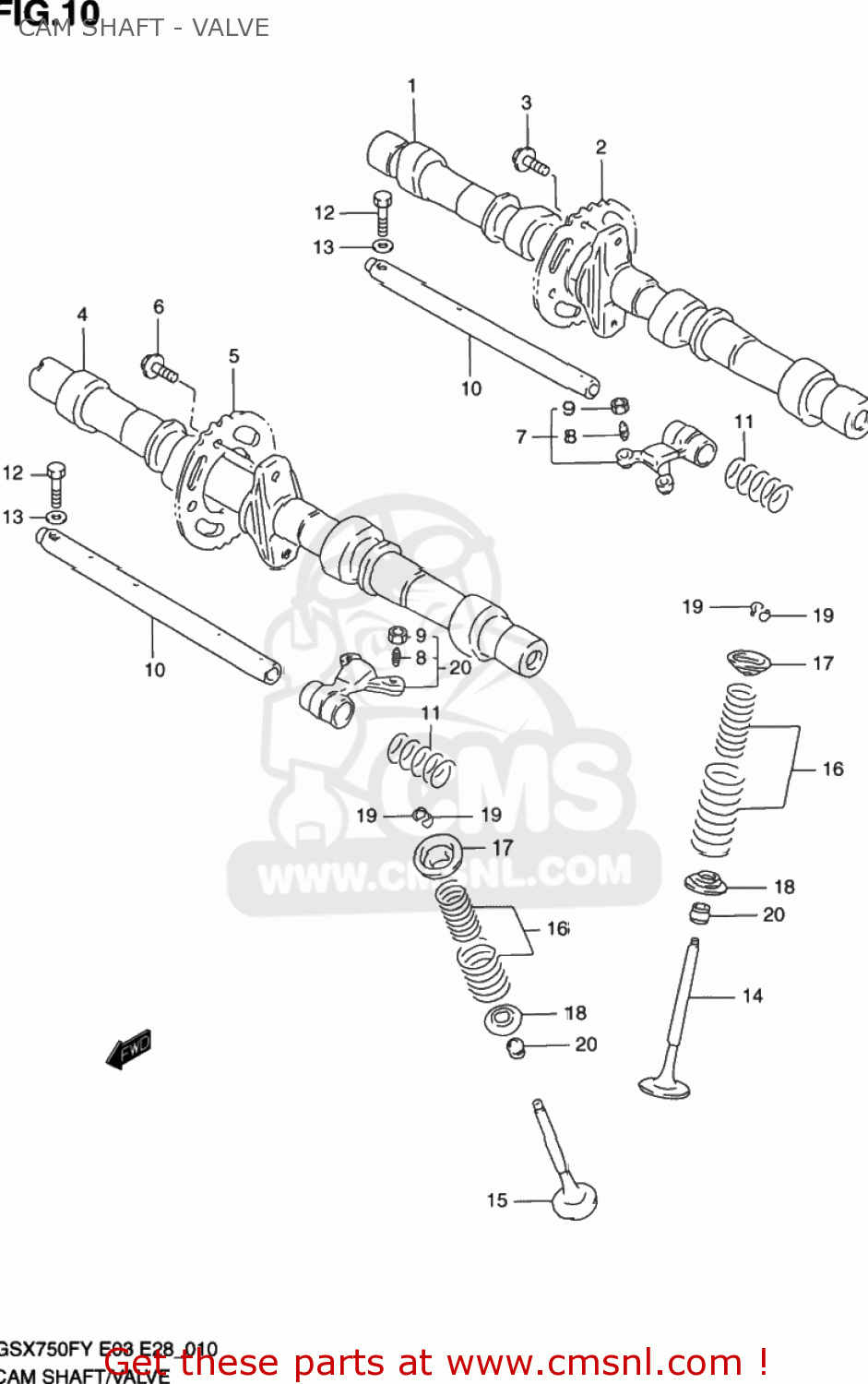

Cam shaft - valve diagram GSX750F KATANA 2001 (K1) USA (E03)
CAM SHAFT - VALVE GSX750F KATANA 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271103F00
ref: 1
CAMSHAFT,INTAKE
€ 516.00
2
1274126E00
ref: 2
SPROCKET,CAMSHAFT
€ 52.50
3
0910307001
ref: 3
BOLT(7X11)
€ 2.00
4
1272126E20
ref: 4
CAMSHAFT,EXHAUST
€ 452.50
5
1274126E00
ref: 5
SPROCKET,CAMSHAFT
€ 52.50
6
0910307001
ref: 6
BOLT(7X11)
€ 2.00
7
1284027A01
ref: 7
ARM,VALVE ROCKER
€ 49.50
8
1284249201
ref: 8
SCREW,TAPPET ADJUSTING
€ 5.50
9
1284327A00
ref: 9
NUT,TAPPET ADJUSTING
€ 3.00
10
1286127A00
ref: 10
SHAFT,VALVE ROCKER ARM
€ 31.00
11
0944013014
ref: 11
SPRING
€ 2.50
12-1
0180006303
ref: 12-1
BOLT
€ 0.00
12-2
0911206004
ref: 12-2
01800-06303
BOLT(6X30)
€ 1.50
13
0832201063
ref: 13
08322-0106B
WASHER
€ 2.00
14
1291103F00
ref: 14
12911-17D00
VALVE,INTAKE
€ 24.50
15
1291203F00
ref: 15
VALVE,EXHAUST
€ 35.50
16
1292017C00
ref: 16
SPRING SET,VALVE
€ 15.50
17
1293117C01
ref: 17
12931-17C02
RETAINER,VALVE SPRING
€ 7.00
18
1293317C00
ref: 18
SEAT,VALVE SPRING
€ 6.50
19
1293227A00
ref: 19
COTTER VALVE
€ 2.50
20
0928905011
ref: 20
SEAL,OIL(5X10X9.7)
€ 6.00
